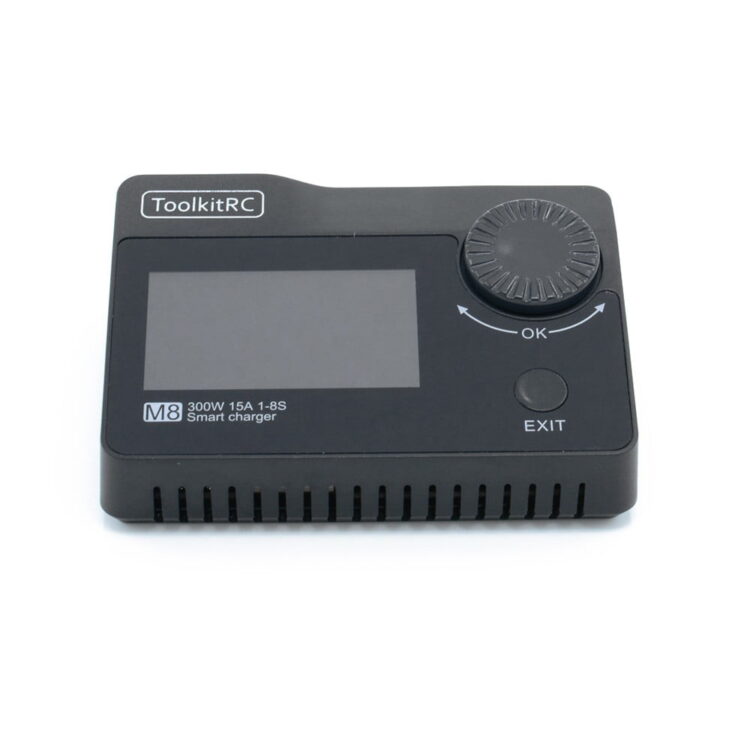

The ToolkitRC M8 is much more than just another charger! With a 300w 15A Charger at its heart, the M8 also has a servo tester, cell checker, a watt meter, PWM/PPM/Sbus input testers and output generators along with a variable voltage and amperage DC output control.

Features

• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM.SBUS Input/output Receiver & Flight control tester
• Viable AMp/volt DC Power supply (Required external DC input)

Specifications

• Charge, discharge and balance management support LiPo, LiHV,
• LiFe 1-8S，NiMh 1-20S，PB 1-12S battery.
• Charger current：MAX 15A @ 300W
• Discharge current：reccycle mode 15A @ 300W Normal: 3A @ 20W
• Balance current: 400mA @ 2-8S
• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• ESC power meter, together with output voltage and throttle signal
• Measure PWM / PPM / xBUS signal values, Accuracy 1ms
• Output PWM / PPM / xBUS standard signal, Accuracy 1ms
• Customizable 5-30V constant voltage, 1-15A constant current
• Charge the drone battery, activate and charge.
• Multi-language optional
• USB 2.1A@5.0V Output，for Mobile devices
• Udisk firmware upgrade (Slave device)

Charger

• Input voltage: 7.0-30.0V @MAX 16A
• Type of battery: Lipo LiHV LiFe @1-8S
• NiMh @1-20S Pb @1-10S
• Balance current: 400mA @2-8S
• Charge power: 300W @MAX 15A
• Discharge power: 300W @MAX 15A Recycle mode
• 12W @ 3A Normal mode
• USB: 2.1A @5.0V or Upgrade
• Dimensions: 98*68*35 mm
• Weight: 142g
• LCD: 2.2inch, 132*64 Pixel，black and white

Measurement

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0-5.0V @1-8S
• IR: 10-500mR @1-8S
• ESC: 300W @Max 15A

Output

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Power: 1.0-30.0V @1.0-15A Mode:CC+CV
• OverCurrent Cut Off time: 50ms

1.over current
2.overvoltage
3.over temperature
4.timeout
5.battery is invalid
6.input low
7.input is too high
8.balance is complete
9.is not connected to the balance port
10.not connected to the main port
11.timeout
12.types do not match
13.cells error
14.battery needs to be balanced
15.This mode is not rechargeable
