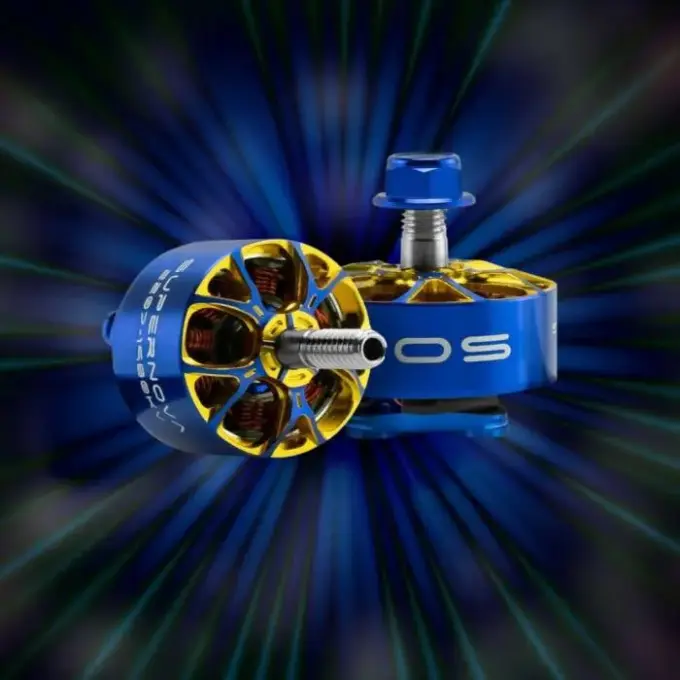

Introducing the AOS RC Supernova Motor, designed for high-performance FPV drones. Featuring a KV of 1980 and a 12N14P configuration, this motor is all about speed and precision. With its compact and lightweight design at just 31 grams, it’s the perfect choice for your aerial adventures. Elevate your drone’s power with the AOS RC Supernova Motor!

“The AOS Supernova 2207 redefines performance for a 5″ FPV motor. It delivers more power, torque, and better efficiency per gram than any other motor in its class. You may know that I’ve tested over 50 different 5″ motors from the biggest and best manufacturers in FPV. What you may not know is that alongside making motor testing videos, I’ve been using all that data to refine a finite element model of FPV motor performance. This tool can accurately predict the performance of a motor design in just a few minutes, making it possible to test many different motor designs quickly. I took this further by writing an optimization script that uses this model to hone in on the optimum design. A design that provides the most power, torque, and efficiency at a target motor weight of 31g (not including wires).​ There are a lot of design parameters, so it took a long time to hone in on the optimum (over 20,000 iterations), but I found the ideal design. That was the creation of the Supernova 2207. ​ A great design is nothing without excellent manufacturing, so I’ve partnered with RCinPower to produce this motor. Their motors consistently perform at the top of my motor leaderboard, and they are flown by arguably the fastest racing pilot in the world, Min Chin Kim. I think the Supernova is something pretty special. I hope you’ll agree…”

– Chris Rosser

• Versatile Compatibility
• Impressive Power
• Compact Design
• High KV Rating
• Hollow Shaft

• KV: 1980
• Configuration: 12N14P
• Stator Diameter: 22mm
• Stator Length: 7mm
• Shaft Diameter: 4mm (Hollow)
• Motor Dimensions: 27.6×19.5mm
• Weight: 31 grams (2cm Wires)
• Internal Resistance: 45mΩ
• Idle Current (10 Seconds)@10V: 1.1A
• Max Continuous Power (W) 5S: 1456
• Max Efficiency Current: (5-11A)>86%
• No. of Cells (LiPo): 5-6S
• Max Current (3S): 61A

• 1x AOS RC Supernova 2207 FPV Motor – 1980KV
• 1x Hardware Set
