*Forword

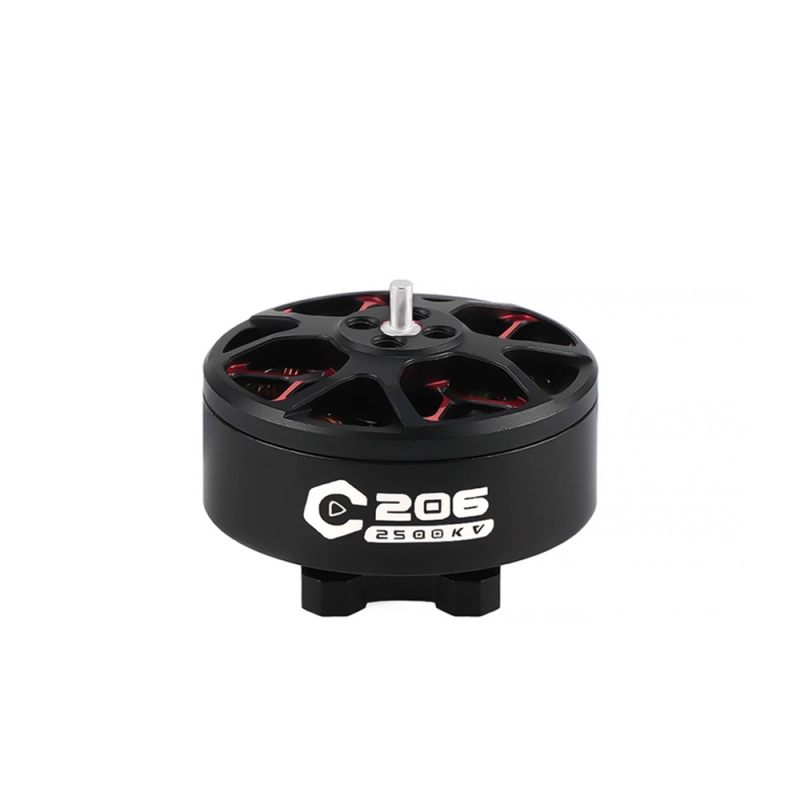

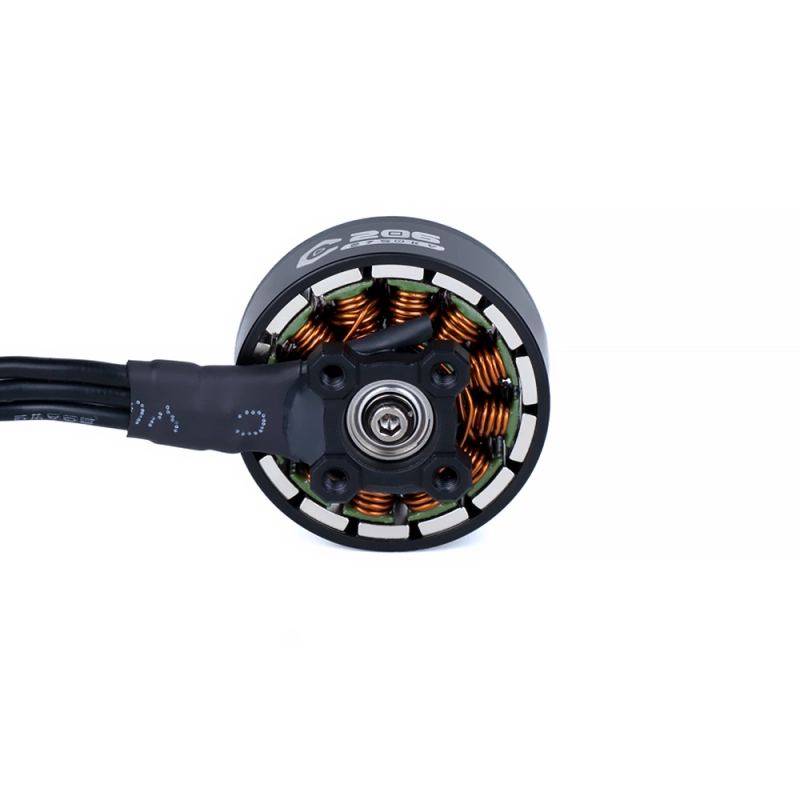

– C206 motor is special designed for 3.5inch cinewhoop and cinematic drone

– It is easy to carry heavy GoPro10 or GoPro11.

– C206 motors run perfect with Gemfan D90-3 or HQ D90-3 and 4 props.

*Bearing Shield Technology

– An IP53 rating dustproof and waterproof bearing placement design.

– BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .

– Increased thrust effciency and say goodbye to crush motor bearings

*Specs

– 2500KV is for 6S

– Configuration: 12N14P / N52H arc magnet

– Motor stator size: 2006

– Motor mounting hole size: 4*M2 (Φ12mm)

– Motor cables: AWG 20#, 150MM

– Motor dimensions (Dia *Len): Φ24.6*20.6MM  / T-MOUNT

– Motor weight (including 150MM cables) : 22g

– The motor is very powerful that can get over 0.9KG and most current is about 21.5A

*Package

– 1* C206 motor

– 4* M2*5 screws for motor

– 1* M3*4 screw for lock shaft

– 2* M2*8 to lock Props
