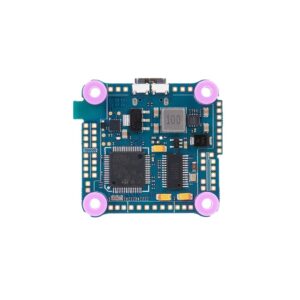

Diatone’s Mamba series gives racers an edge in competition. The latest F7 processing technology means you can focus on flying, not on the limits of your equipment.

F722 APP Update Details

• BT to WiFi
• USB power supply can use receiver, OSD
• Add a group of I2C pads (SCL SDA)
• Add inverter Dual-Way TX serial port
• Add 2812 LED switch function, key can turn off led
• Add 4 corner LED interface to support BF led and Mamba led
• Upgrade to stronger type-C, optimize pad position

About WIFI APP

Note: The STM32F722 generates much heat, please leave at least 5mm on both sides of the FC to give good air circulation.

Specifications

FC Specifications

• MCU: 216MHz STM32F722RET6 32BIT
• IMU: MPU6000
• Barometer: No
• OSD: BF OSD
• Blacbox: 16M Flash Memory
• Uarts: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: RX6
• LED indicator: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V

LED Controller:BF LED/MB LED (4 Set 2812 LED)

• WIFI: SpeedyBee APP
• Smartaudio: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25V)
• TVS Protection: Yes

BEC: 5V 2.5A & 9V 2A (Max 3A)

• MOUNTING: 30.5mm/M3 WEIGHT: 9g
• Supply :
• 8pin sh1.0 *1

• Smartaudio: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25V)
• VTS Protection: Yes
