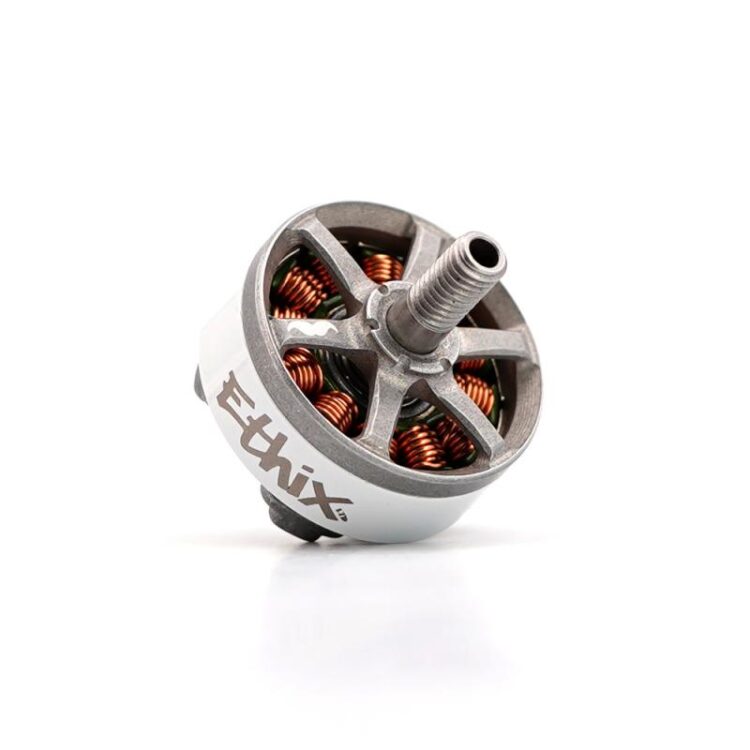

Ethix Mr Steele 2306 Silk V3 Legacy 2345KV Motor
V3 legacy motors share completely reverse compatibility with Ethix Mr Steele V3 motors.
In stock
₹1,299
In stock
SHARE
Same Day Shipping
Mon-Sat til 2.00PM on Most orders
Provide Warranty
Seller & Manufacturer Warranty
Best Prices
Best Prices in India
Best Customer Support
Industry leading support
Since the Mr Steele V3 2306 motor was released it was one of the most popular freestyle motors in the world. We decided to offer the same tried and true formula at a fraction of the price. Now featuring a thicker single strand copper winding for increased efficiency and resilience to high amp loads. We also changed your the color way to an all new raw tumbled aluminum finish. The V3 Legacy motors offer maximum performance and compatibility without breaking the bank. V3 legacy motors share completely reverse compatibility with Mr Steele V3 motors. Now with sustainable packaging the V3 legacy can live on with less impact on the planet.
Specifications of Ethix Mr Steele Silk V3 Legacy 2345KV Motor
| Stator Size (Diameter) | 23mm*6mm |
| Kv | 2345kv |
| Magnets N52SH | Curved |
| Windings | 15turn DLRK |
| Shaft Length (mm) | 11.5mm |
| Shaft Diameter (mm) | 4mm |
| Shaft material | Steel |
| Bearing | NMB684 |
| Weight (With Wires) (g) | 30.4g |
| Cells (Lipo) | 6S |
| Max Current (A) | 45A |
| Max Burst Current (A) | 50A |
| Internal Resistance (Rm) | 98mΩ |
| Wire Spec (AWG) | 20#-135mm |
| Base Mounting Pattern | 19x19mm |
| Base Mounting Thread | M3 Thread |
| Motor Overall Dimensions | φ27.5mm*17.2mm |
Click here to view our huge collection of Brushless FPV Motors.
| Weight | 90 g |
|---|---|
| KV | 2345kv |
| Stator Size | |
| Mounting Holes | ⌀19mm M3 |
| Motor Shaft | 4mm |
