Specifications of Foxeer T-Rex Micro

• Sensor Type: 2MP CMOS Sensor
• Scale: 4:3/16:9 Switchable
• Tv System: PAL/NTSC Switchable
• Resolution: 1500TVL
• Shutter Speed: Auto
• Flip: Up, Down, Left and Right
• Video Output: CVBS Analog Signal
• Latency: 6ms
• Minimum Illumination: 0.001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 110dB
• DAY/NIGHT: EXT/Auto/Color/B&W
• Flight OSD: Voltage/Cam Title/Time
• Input Voltage: 4.5V~16V
• Power Consumption: 115mA±15%@DC12V,270mA±15%@DC5V
• Language: ENGLISH /中文
• Working Temperature: -10°~50°C RH90% MAX
• Working Humidity: 20~80%
• Storage Temperature: -20°~70°C

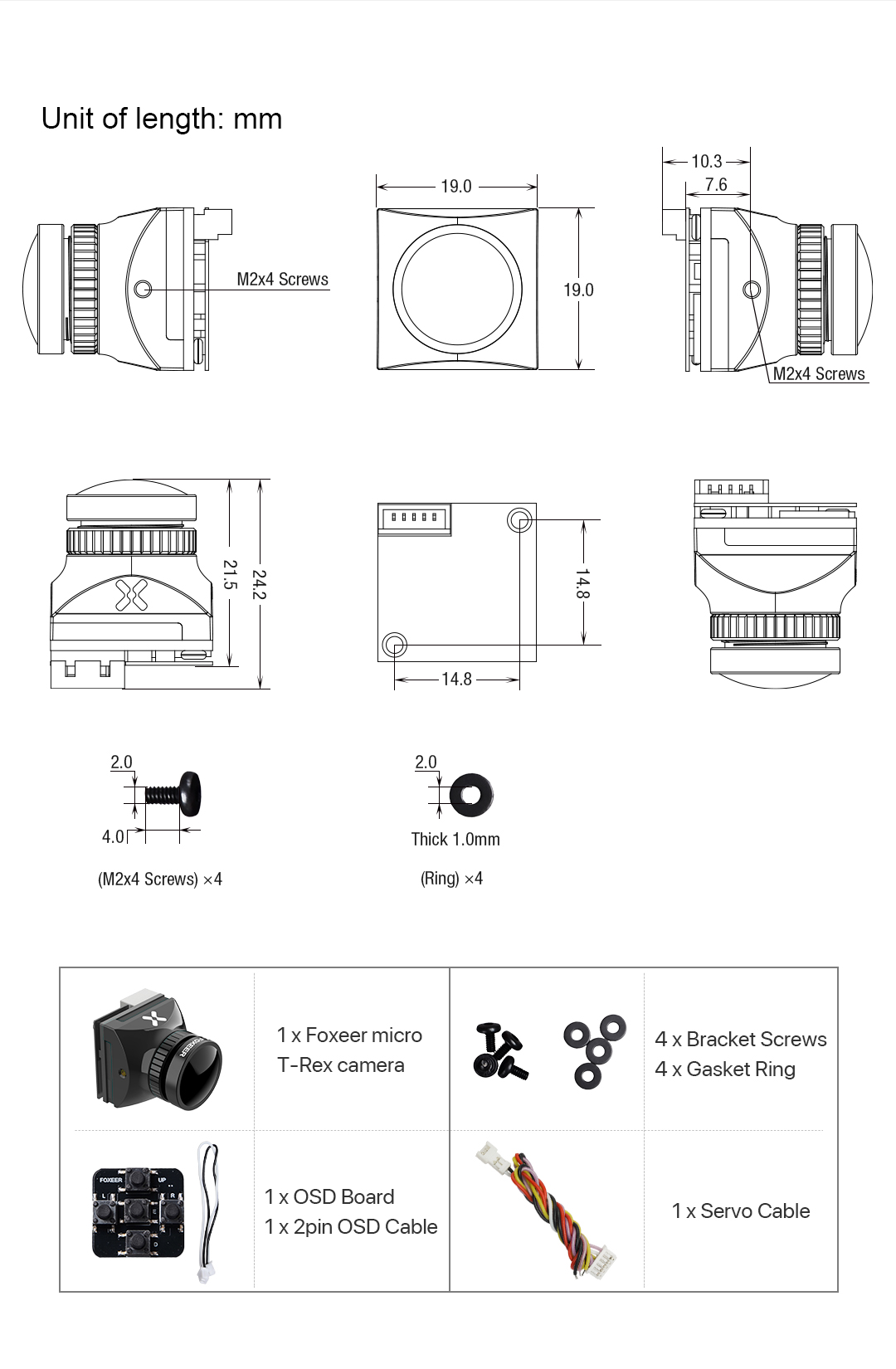

• Dimension: 19*19mm
• Weight: 8.6g(Exclude cable)

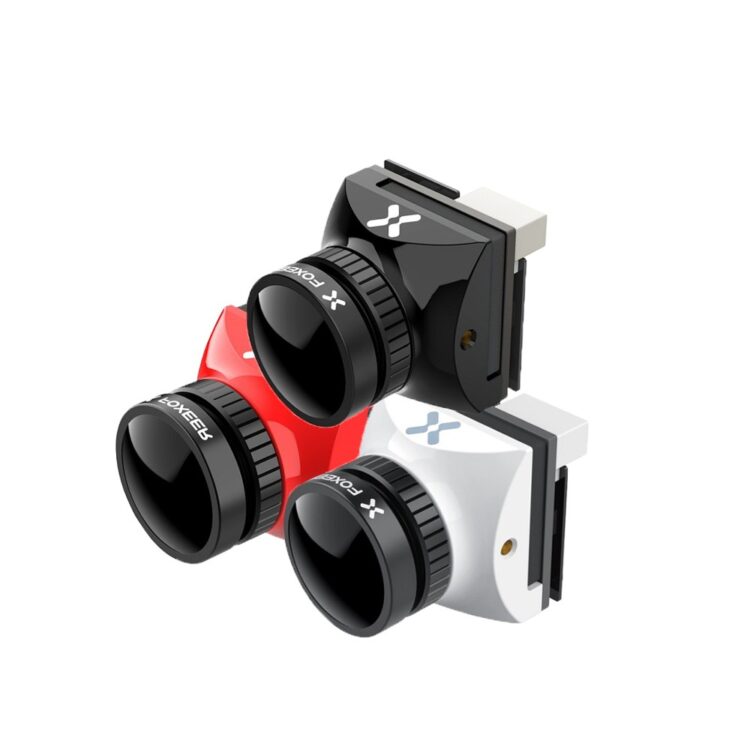

Foxeer T-Rex Micro with a 1500TVL resolution, experience ultra-sharp images that capture every detail, ensuring you never miss a moment. The advanced Wide Dynamic Range (WDR) feature allows for perfect visibility in challenging lighting conditions, balancing out bright and dark areas effortlessly. Built with a robust yet lightweight housing, the T-Rex Micro is designed to withstand the rigors of intense FPV flying without adding unnecessary weight to your setup.

This 1500TVL FPV camera Measuring just 19mm, the micro-sized camera easily fits into tight builds, making it an ideal choice for both micro quads and larger drones. Tailor the camera’s settings to your preference with on-screen display (OSD) control, allowing for adjustments in brightness, contrast, and more. Experience real-time video with minimal delay, ensuring that your reactions are always spot on during high-speed maneuvers. To view more FPV camera kit here you can explore.

Includes

• 1 x Foxeer T Rex Micro FPV Camera
• 1 x OSD Board
• 4 x Bracket Screws
• 4 x Gasket Ring
• 1 x 2pin OSD Cable
• 1 x Servo Cable
