GEP-CB5 (crocodile5 baby) Frame

Speicification of GEPRC crocodile 5 baby Frame

• Model:GEP-CB5
• Brand name: GEPRC

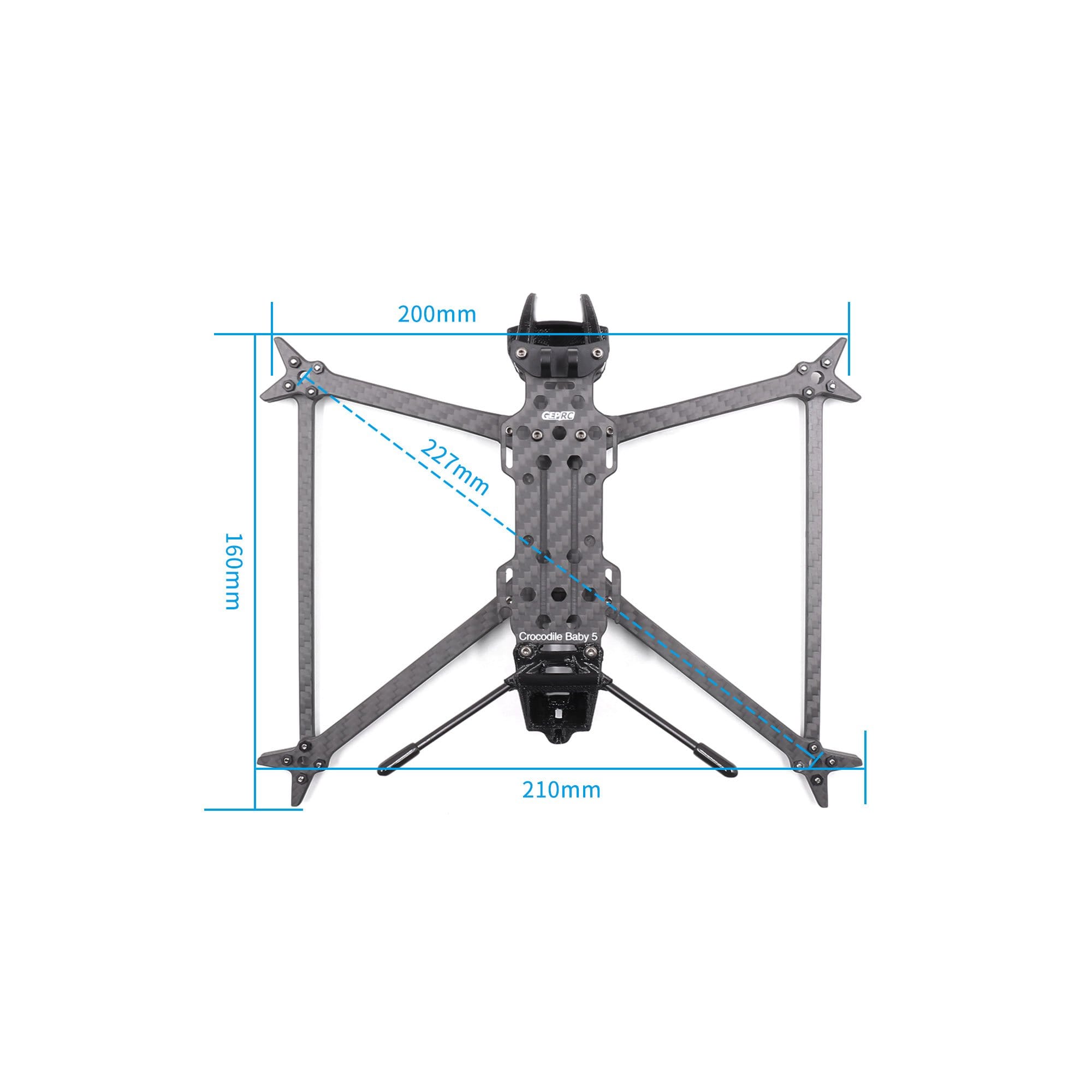

• Wheelbase: 227mm
• Top Plate: 2.0 mm
• Bottom plate thickness: 3.0 mm
• Arm: 4.0 mm
• Reinforced arm: 3.0mm

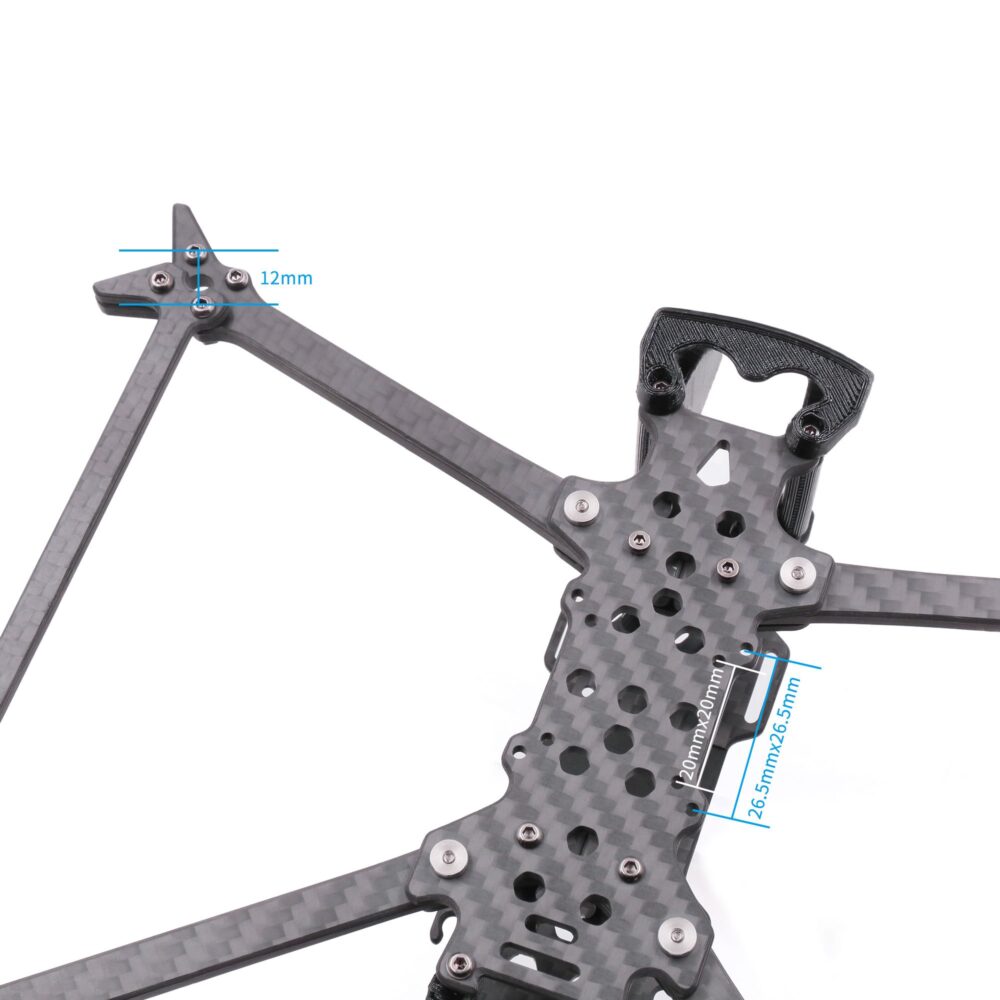

• FC mounting holes: 26.5mmx 26.5mm, 20.5mm x 20.5mm
• VTX mounting holes: 20mm x 20mm,fixing groove
• Camera Spaceing:20mm x 20mm
• Motor mounting holes: 12mm x 12mm
• Size:210mm*160mm*32mm

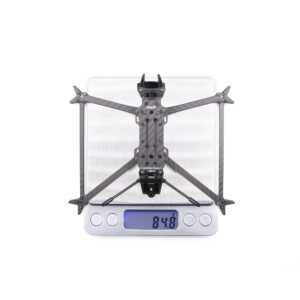

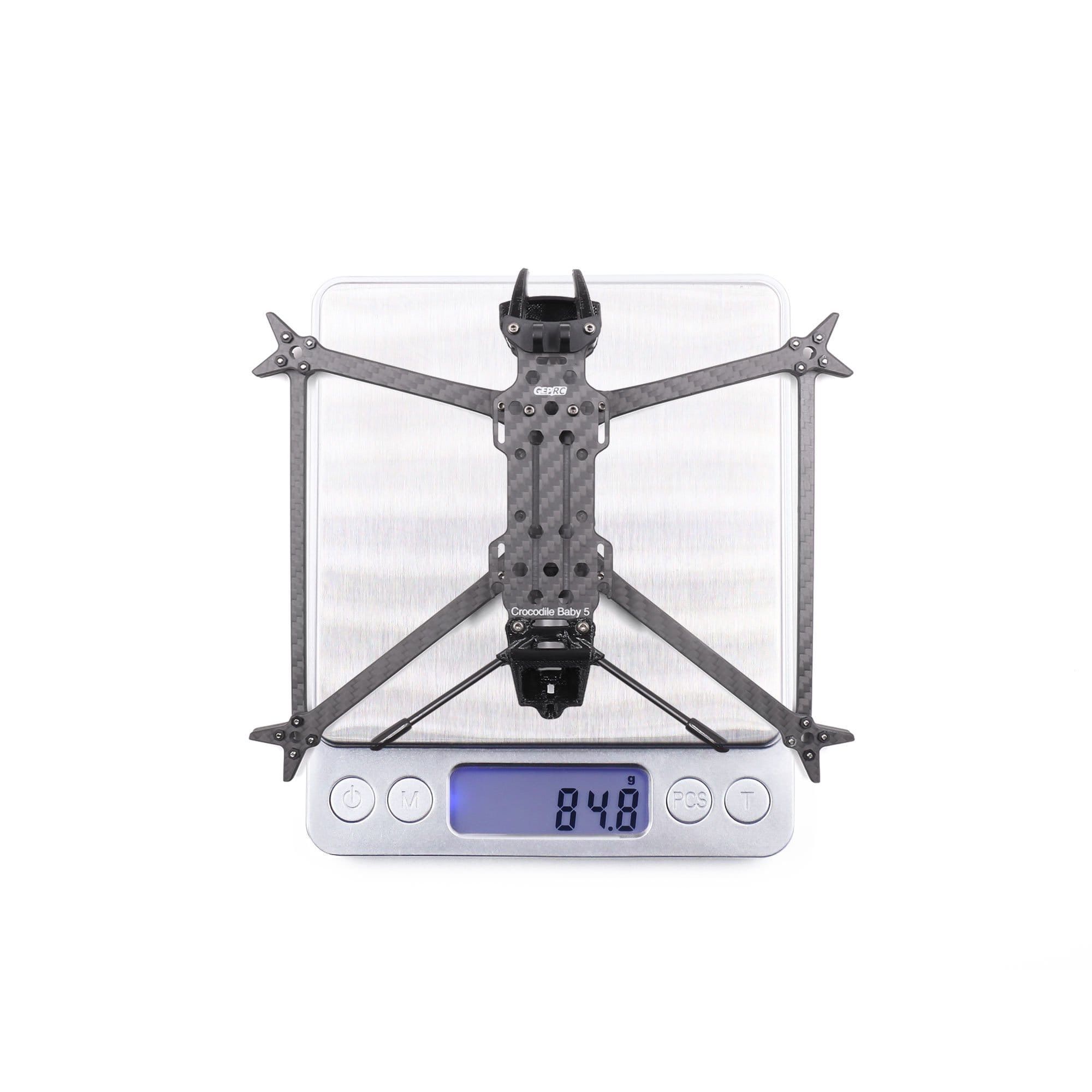

• Weight: 84.8g (with 3D prints)

Features of GEPRC crocodile 5 baby Frame

1. 4mm super-strength arm, 3mm reinforced arm, the strength of a higher level.
2. Front and rear asymmetric arm design, better operation feeling, and lower wind resistance.
3. Carbon plate + print + aluminum column design, lower weight, more expansion function.
4. The center of gravity is designed in the middle, and the installation holes of flying tower and graphic transmission are designed in the center of the frame
5. A variety of mounting holes, including 26.5mm x 26.5mm and 20.5mm x 20.5mm FC mounting holes on the bottom plate, 20 mm x 20 mm Vista mounting holes on the top and fixing grooves .
6. 12mm * 12mm motor mounting hole can be used to install mainstream 1507 / 1805 / 2004 motor,etc.

Include:

• 1 x Bottom Plate
• 1 x Top Plate
• 2 x Front Arms
• 2 x Rear Arms
• 1 x Front Cover Plate
• 1 x Rear Cover Plate
• 2 x Reinforced Plates

• 2 x M2 * 21mm Aluminum columns
• 4 x M2 * 27mm Aluminum columns
• 4 x M2 * 4mm cup head screws
• 10 x M2 * 6.5mm round head screws
• 10 x M2 * 8mm round head screws
• 22 x M2 * 9mm round head screws
• 6 x M2 * 11mm round head screws
• 5 x M2 * 12mm cup head screws
• 2 x M2 * 16mm cup head screws
• 4 x M2 * 18mm cup head screws
• 4 x M2 * 20mm cup head screws
• 7 x M2 Rivet nuts
• 8 x M2 * 4mm Damping Rings
• 4 x M2 * 6.5mm Damping Rings
• 4 x M2 Nylon Nuts
• 8 x M2 Lock Nuts

3D Prints:

• 1 x Camera mount
• 1 x Camera protector
• 1 x VTX Antenna mount
• 1 x TBS NanoRX Antenna mount
• 1 x Naked GP Camera mount
• 1 x 26.5mm26.5mm to 20mm*20mm mount Plate

• 1 x Battery Pad
• 1 x Air Unit Module  Pad
• 1 x EVA Landing pad
• 5 x Nylon Cable ties
• 1 x Battery strap(M15*150mm)
• 1 x Screwdriver(1.5mm)
• 1 x Antenna Wire ProtectionTube
• 4 x Motor Wire Protection Tubes
