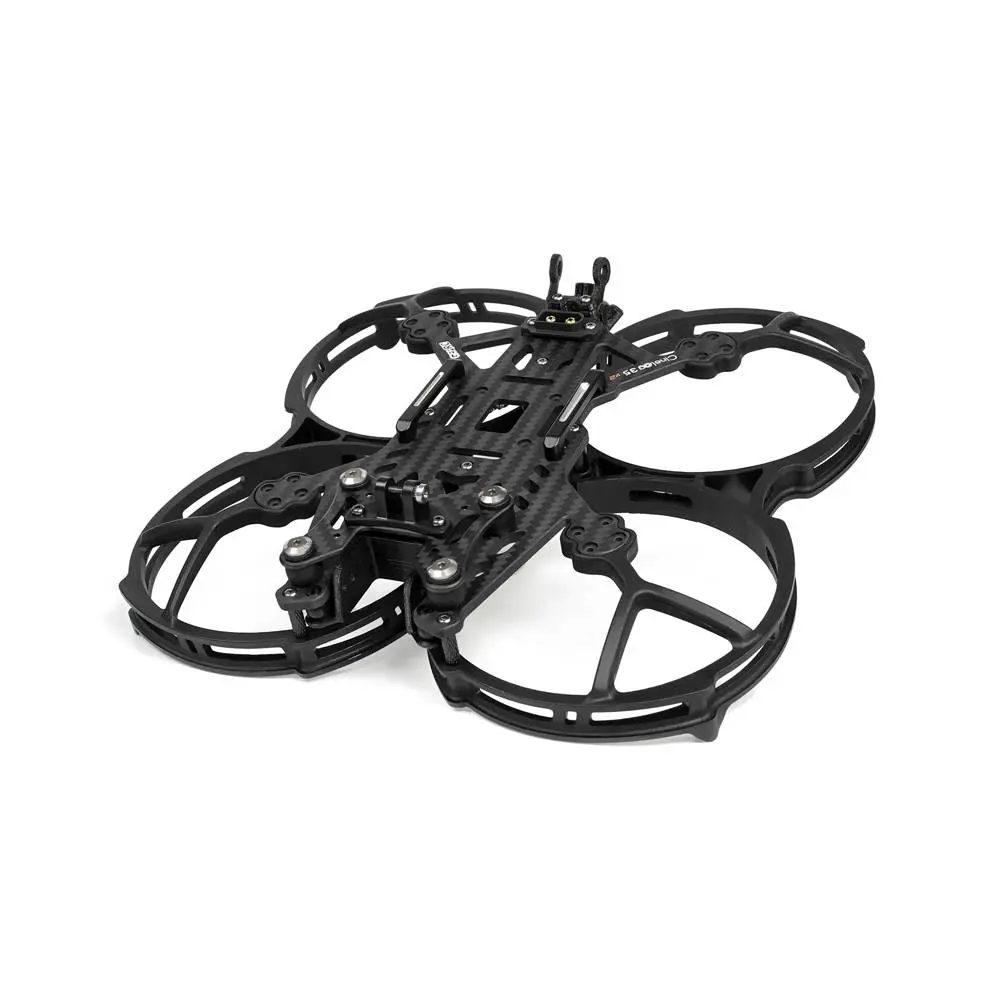

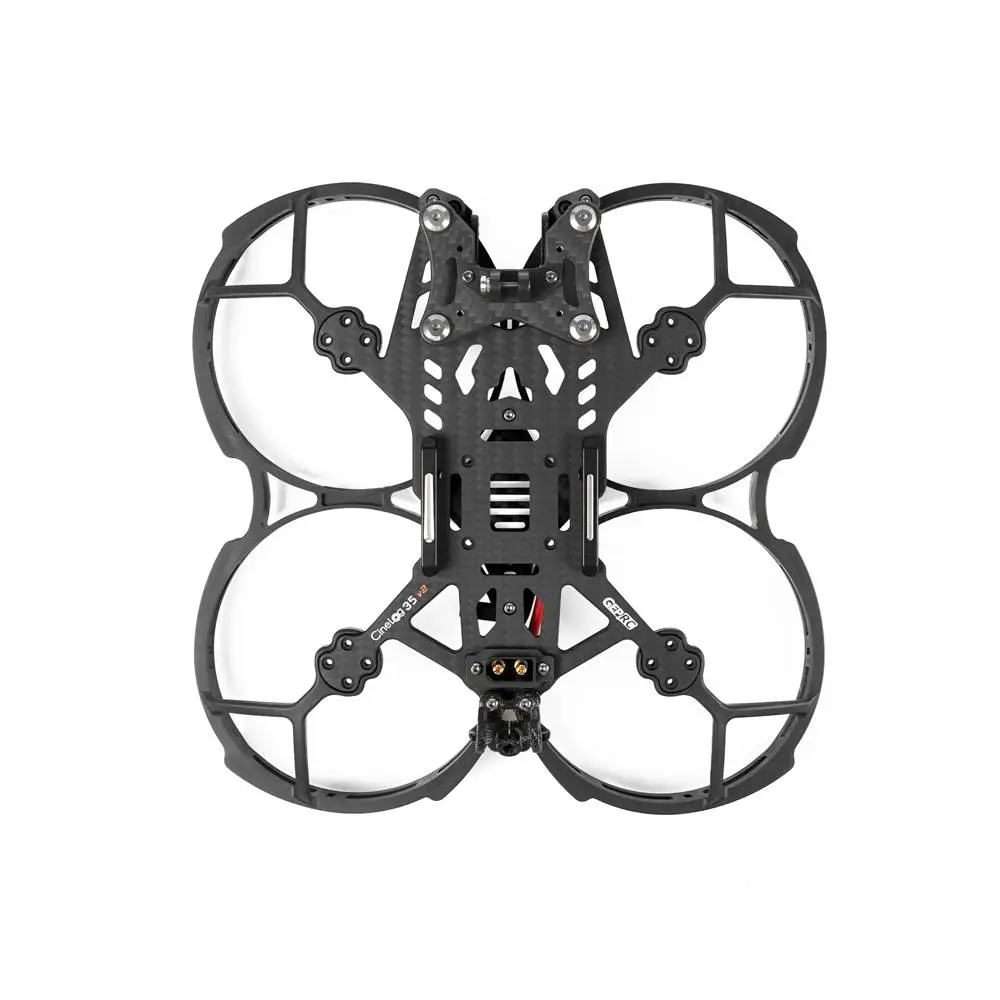

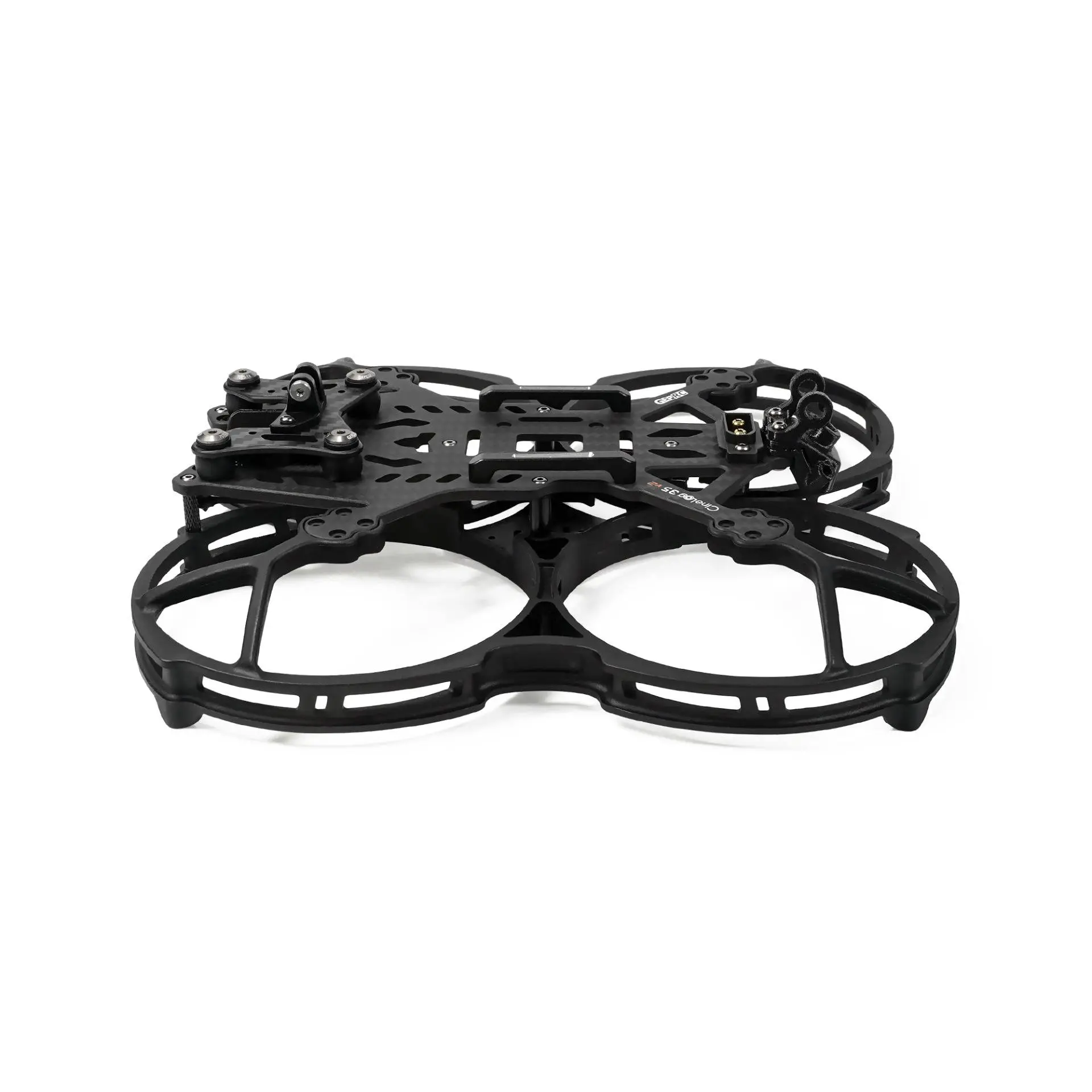

The CineLog 35 V2 features a main carbon plate and injection protection frame with an increased 7075 aluminum column for structural strengthening. The battery mounting uses a tie with 7075 aluminum parts fixed, and the power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame adds a memory card and USB port for easy data reading. This is a 3.5-inch cinematic FPV frame that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors.

• Innovative camera shock-absorbing structure to fix the issue of lens IMU resonance and achieve the optimal anti-shake effect.
• Strengthened carbon plate, hollow design, injection protection frame, and noise reduction design
• Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading
• 7075 aluminum parts are fixed, solid and stable

• VTX Mounting Hole : 20mm x 20mm/25mm x 25mm
• Propeller Guard Internal Diameter: 95mm
• Suitable Propeller Size: 3.5-inch propeller
• FC Mounting Hole: 25.5mm x 25.5mm
• Motor Mounting Hole: 12mm x 12mm
• Camera Installation Space: 20mm
• Motor to Motor: 142mm
• Model: GEP-CL35 V2
• Bottom Plate: 1.5mm
• Gimbal plate: 2.0mm
• Wheelbase: 142mm
• Arm Plate: 3.5mm
• Top Plate: 2mm
• Weight: 133.7g

• 1x Naked GP Camera base mount ( 1 X base mount, 2 X round head M2*12, 2 X press rivet nut M2)
• 4x Camera gimbal shock absorbing rubber ring M3*10.5*10.25
• 1x Bottom plate 1.5mm1 X Injection molded prop guard
• 4x Vibration dampening rubber for FC M2*6
• 2x Battery non-slip pads for Cinelog 35 v2
• 6x Camera vibration dampening rubber
• 1x Power XT60E1-M plug with cable
• 3x 5.8G VTX extension cable 80mm
• 2x Receiver Antenna Stick 100mm
• 1x L-shaped screwdriver 1.5MM
• 1x L-shaped screwdriver 2.0MM
• 1x L-shaped screwdriver 3.0MM
• 1x Main carbon plate 3.0mm
• 1x Battery strap M20*250
• 1x Battery strap M20*220
• 4x Motor hub M7*15mm
• 1x Guide for Quick Start
• 1x Top Plate 2.0mm
• 2x GEPRC Stickers
• 7x Heatshrink tube
• 1x Promotion Card
• 1x Packaging box
• 1x User manual
• 1x Service card
• 1x M5 wrench
• 4x BEC pads
• 1x Keychain
