GEPRC GEP-M8U GPS Module

GEPRC GEP-M8U GPS Module

GEP-M8U GPS module features a compact size, lightweight, fast positioning, and stable connection.

Out of stock

1,499

Out of stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Svg Vector Icons : http://www.onlinewebfonts.com/icon

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

GEP-M8U GPS moduleSummary

Hello FPV fans, GEPRC team has developed a GPS module to upgrade the user experience.

GEP-M8U GPS module features as small size, light weight, fast positioning and stable connection. Suitable for FPV, fixed-wing and other products.

Specifications

  • Model: GEP-M8U GPS module
  • Input Voltage: 3.3V-5V
  • Receiving Format: GPS, GLONASS, BDS(Choose GLONASS or BDS)
  • Channel: 72ch
  • Compass: None
  • Baud Rate: 115200bps
  • Output Connector: SH1.0-4P
  • Communication Protocol: UART
  • Output Protocol: UBLOX
  • Output Frequency: 10Hz
  • Speed Accuracy: 0.05 m / s
  • Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
  • Timing Accuracy: 30 ns
  • Receiving Sensitivity: Trace -162dBm, Capture-160dBm
  • Dynamic Characteristics : Max Height: 50000m, Max Speed: 500m/s
  • Max Acceleration: 4G

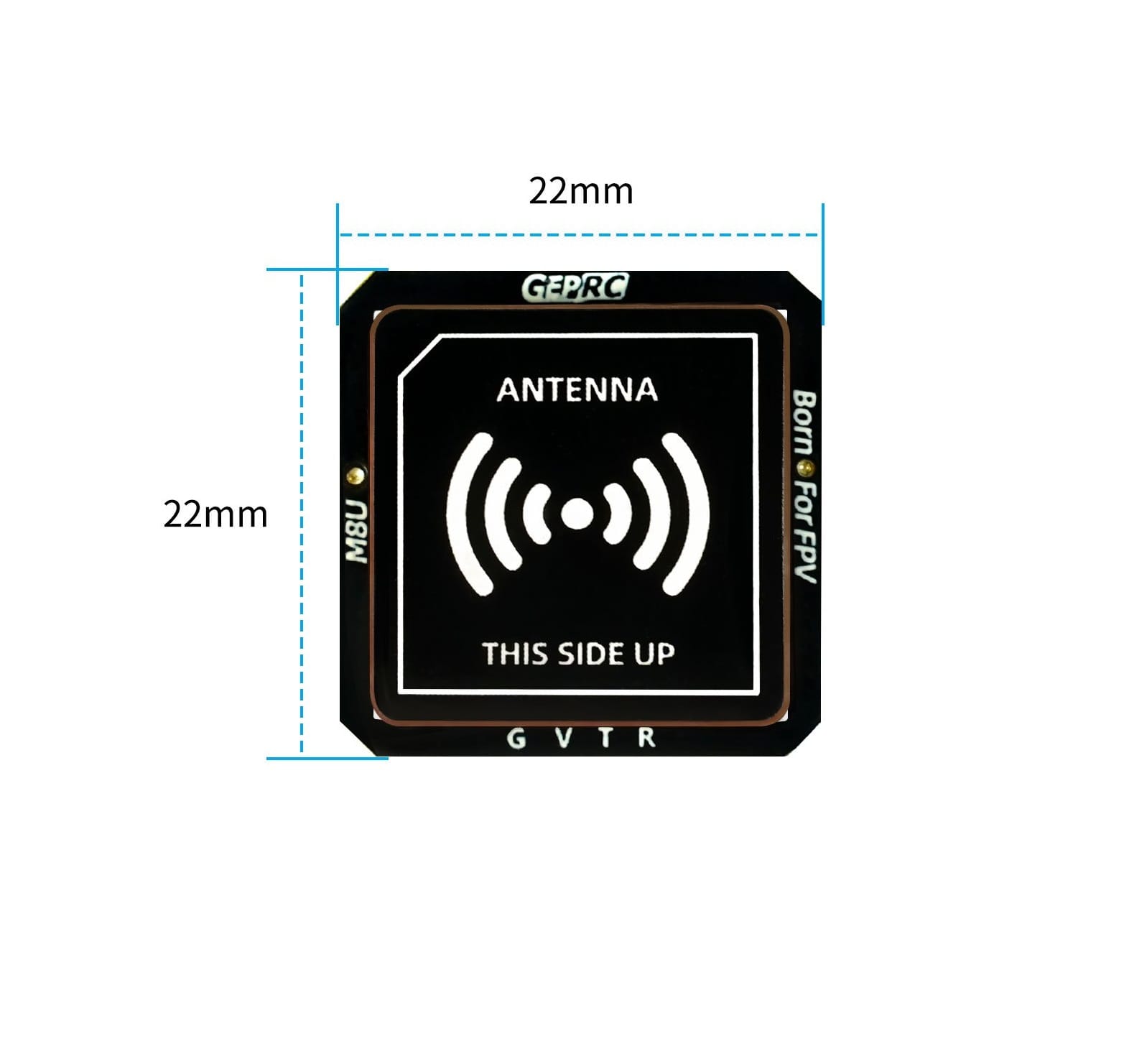

  • Size: 22mm x 22mm x 8mm
  • Weight: 7.9g

Feature

1. Fast positioning speed

2. Stable connection

3. Unique appearance design

4. Small size and light weight

5. SH1.0-4Pin terminal design, no soldering required.

6. On-board PPS positioning and power indicator, easy to use.

Includes

1 x GEP-M8U GPS module

1 x SH1.0-4Pin terminal cable

1 x GPS user manual

GEP-M8U GPS module GEP-M8U GPS moduleGEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module GEP-M8U GPS module

Weight 80 g
