Summary

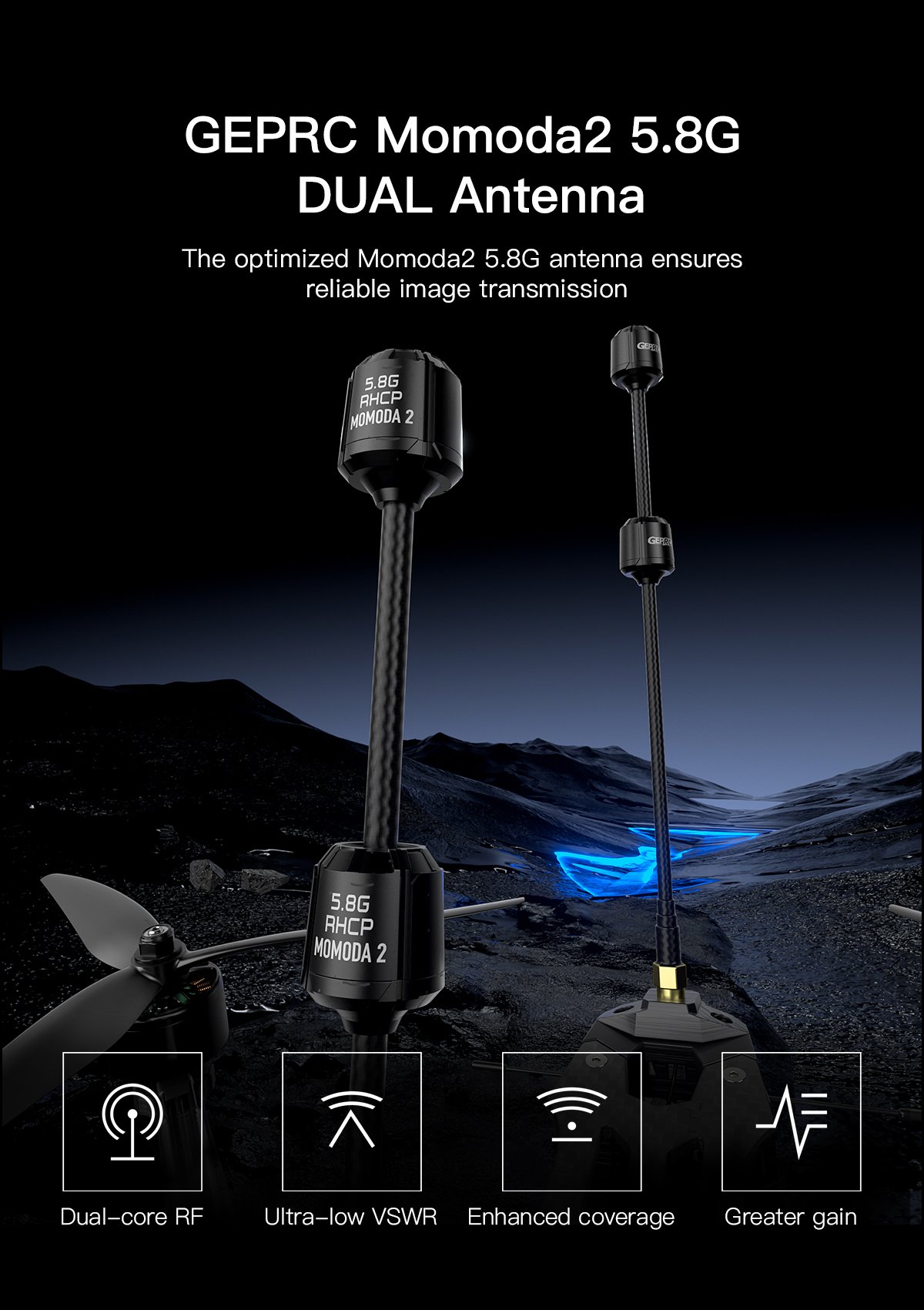

The GEPRC Momoda2 5.8G DUAL antenna incorporates a dual-core RF solution to enhance gain and expand coverage. Practical testing has demonstrated significantly improved directional compatibility. The Momoda2 5.8G DUAL antenna guarantees stable and reliable image transmission during flight, with extended transmission distance.

Features

1. Enhanced gain with dual-core RF technology.
2.  Ultra-low VSWR for improved transmission efficiency
3.  Adopts premium antenna interface
4.  Ultrasonic welding for tight and secure assembly
5.  Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

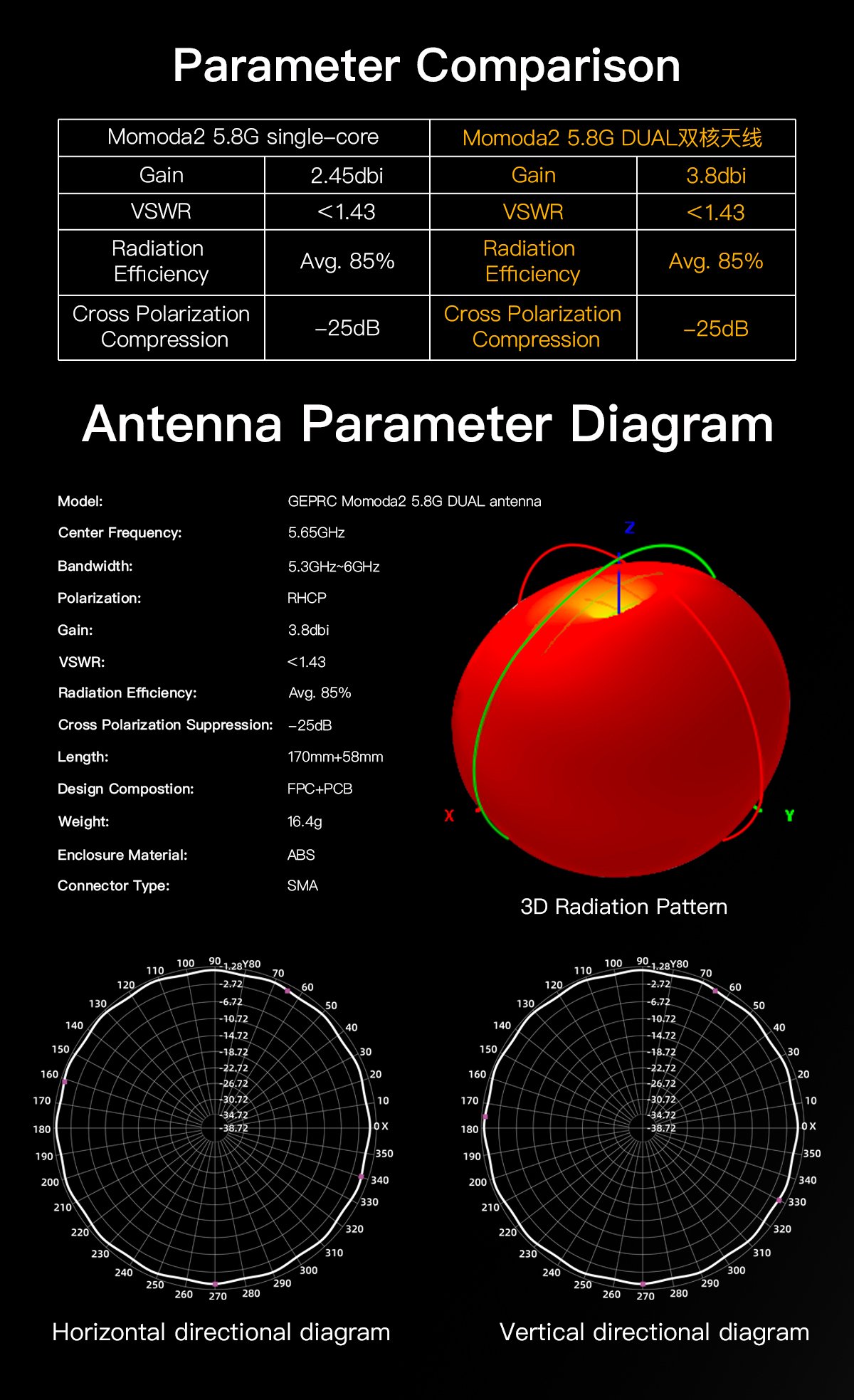

Specifications

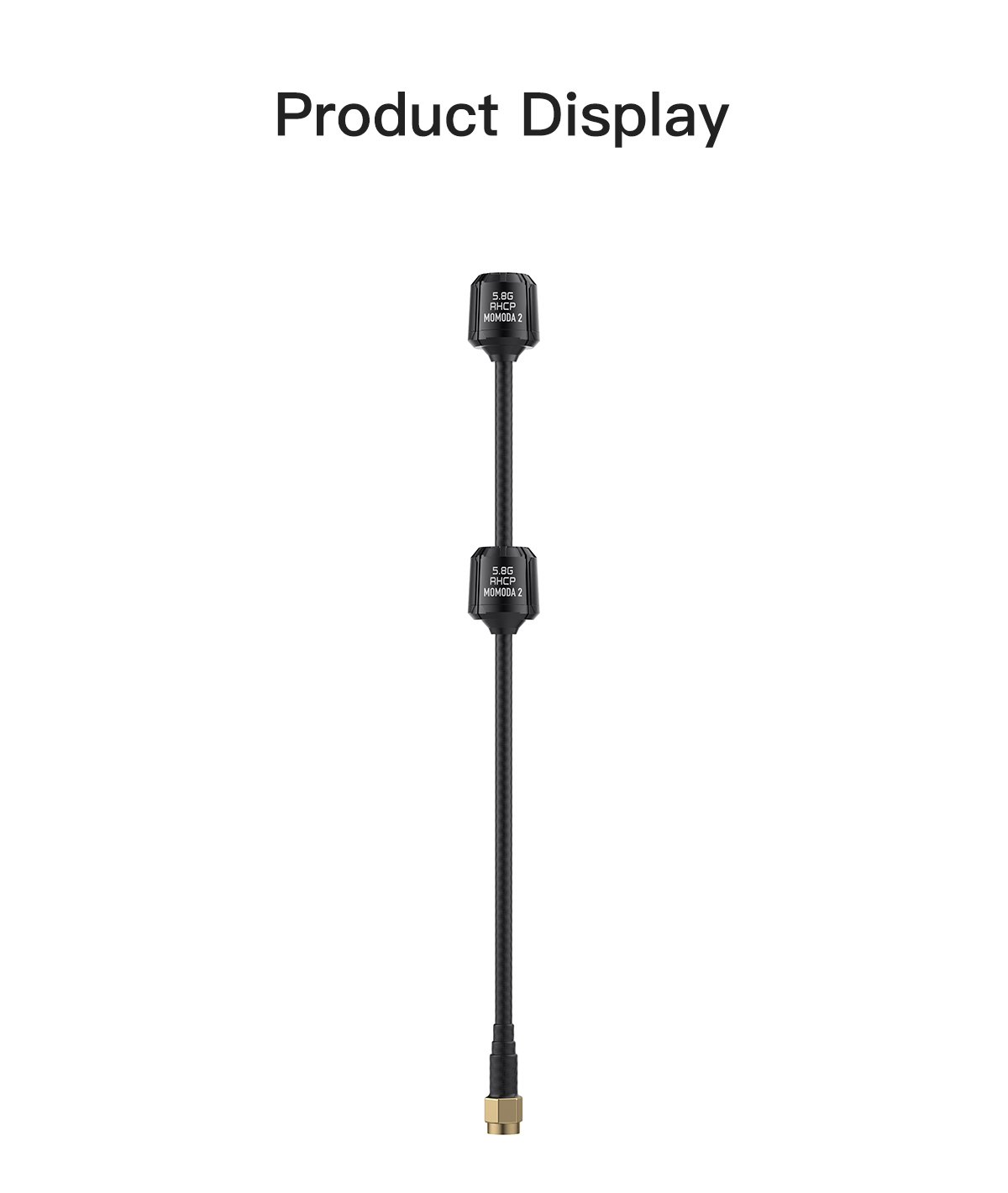

• Model: GEPRC Momoda2 5.8G DUAL antenna
• Center Frequency: 5.65GHz
• Bandwidth: 5.3GHz～6GHz
• Polarization: LHCP/RHCP
• Gain: 3.8dbi
• Axial Ratio: ≤3

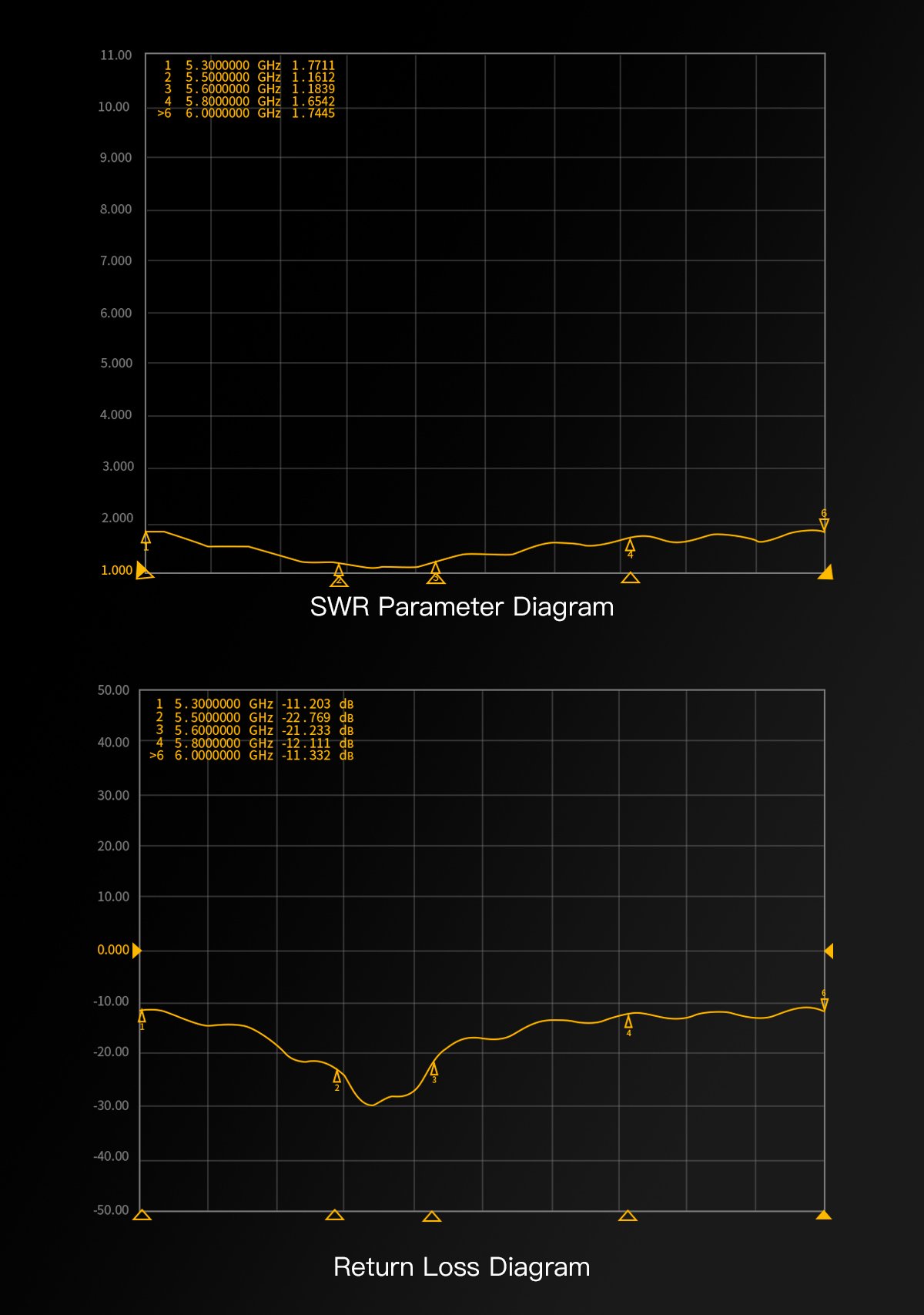

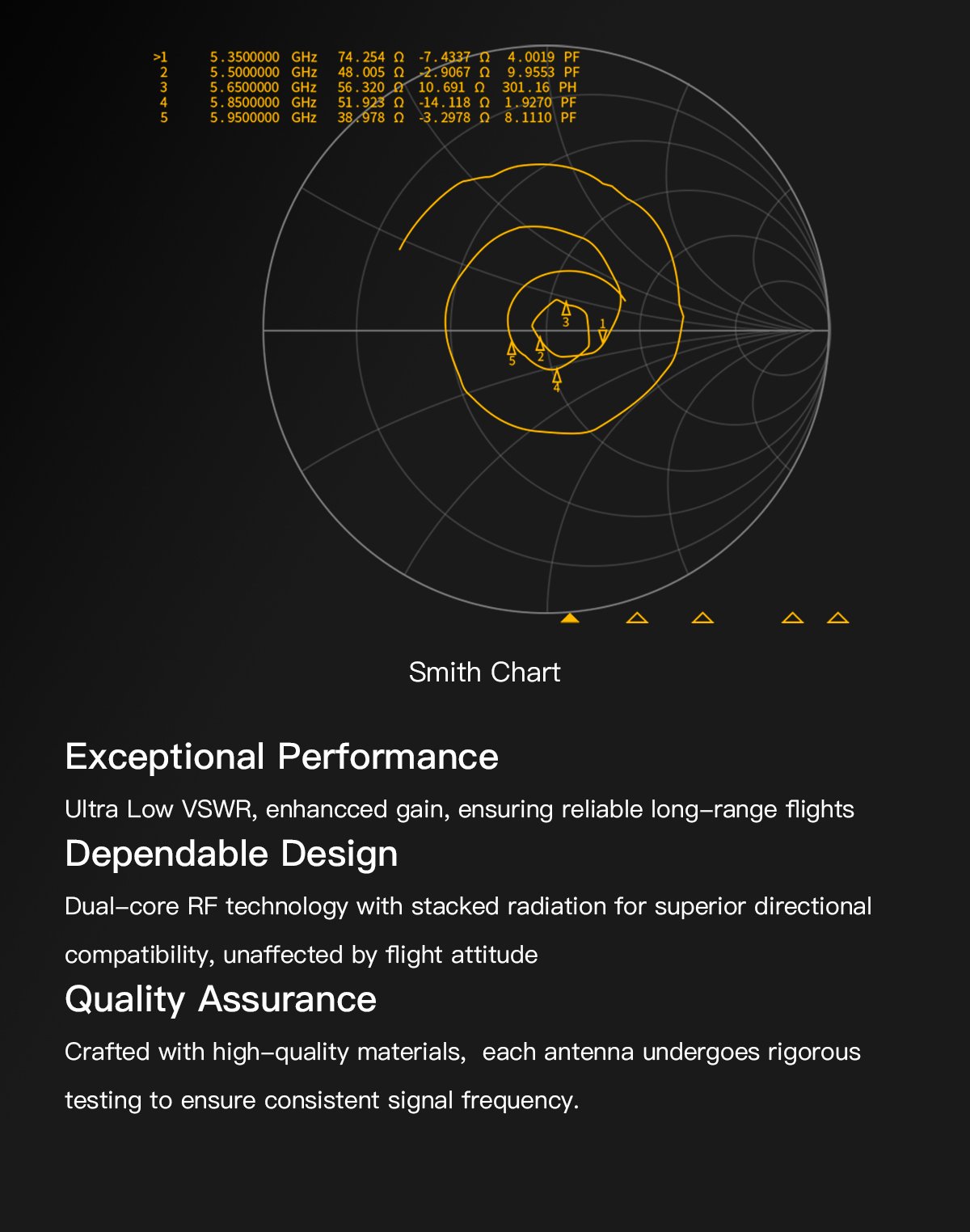

• VSWR: ≤1.43
• Radiation Efficiency: 85%
• Cross Polarization Suppression: -25dB

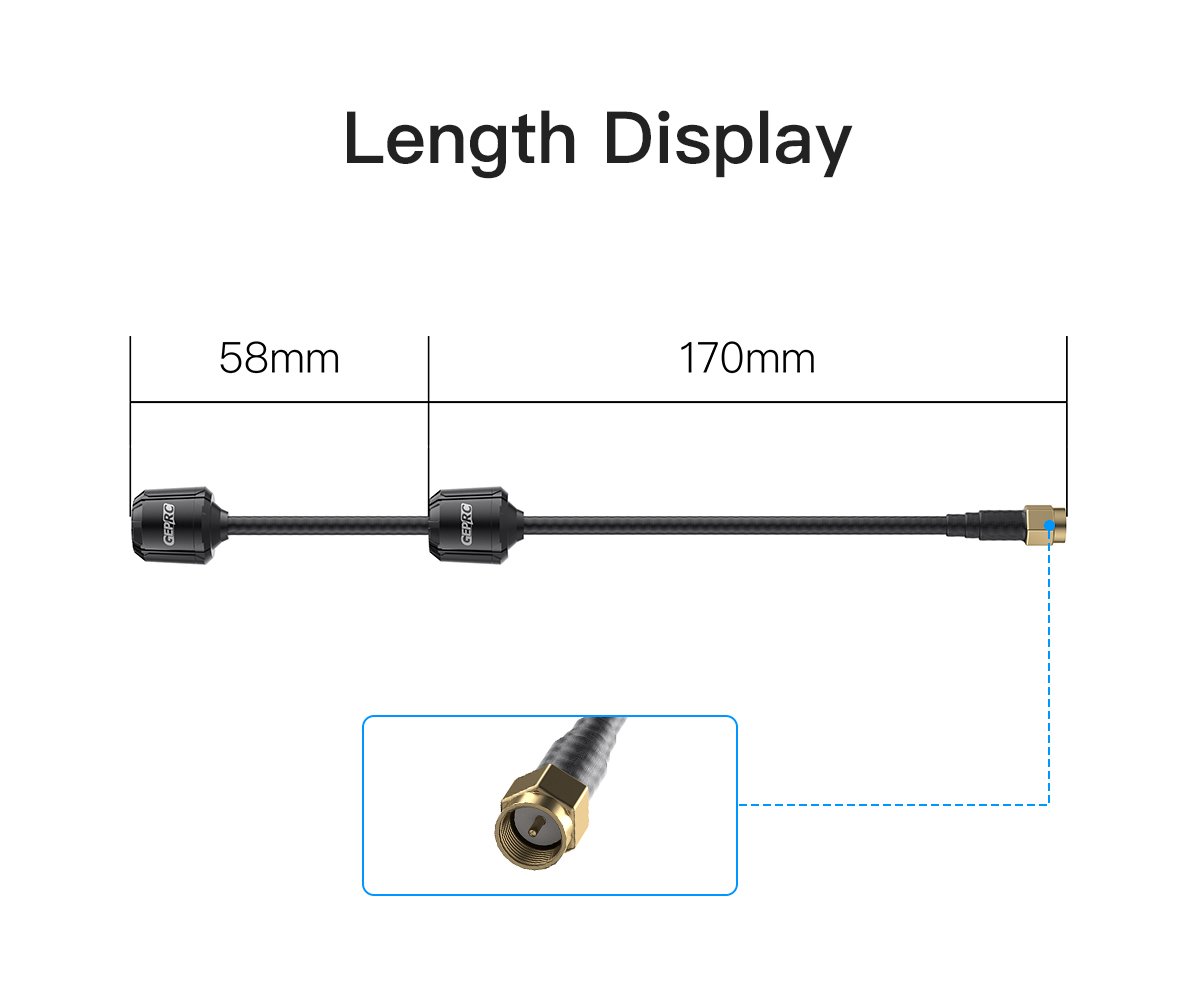

• Length: 170mm+57mm
• Design Compostion: FPC+PCB
• Weight: 16.6g
• Enclosure Material: ABS
• Connector Type: SMA

Includes

1*Momoda 5.8G DUAL antenna
