Specifications

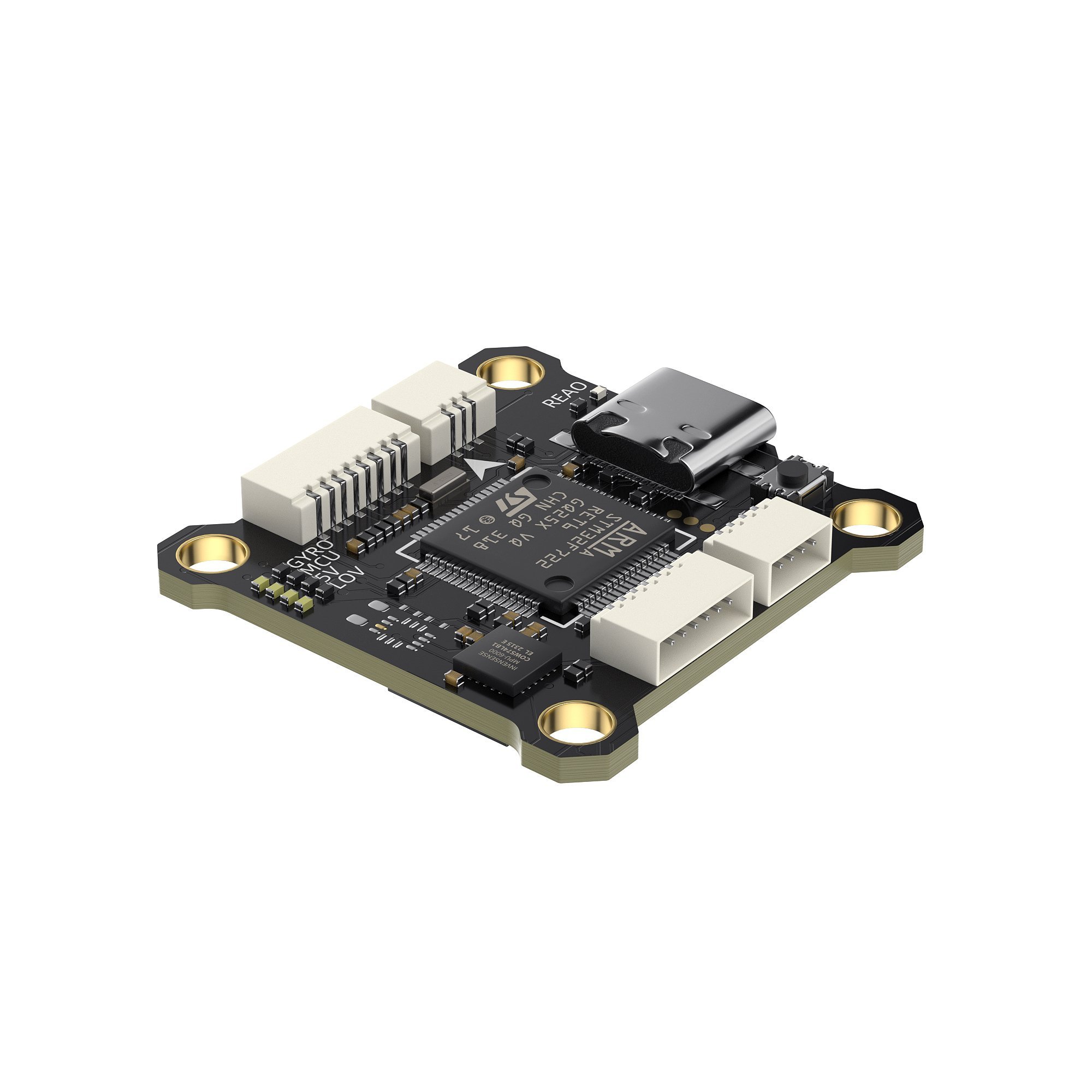

Model: TAKER F722 SE FC

MCU: STM32F722RET6

IMU: MPU6000

Black Box: 32Mb Flash

USB: Type-C

OSD: BetaFlight OSD w/ AT7456E chip

BEC output: 5V@2.5A，10V@2A dual-output BEC

Firmware Target: TAKERF722SE

Dimension: 31.7×31.5mm

Moutning hole sizes：25.5×25.5mm，mounting hole size is φ4mm, use vibration reduction silicone to transform the fixing screws into 3mm or 2mm.

Input voltage: 7.4V-25.2V（LiPo 2-6S)

UART: 6 UARTS(for Uart6 ESC only)

Power Filter: Integrated LC filter

Weight: 6.0g
