Description
Brand: FLYWOO

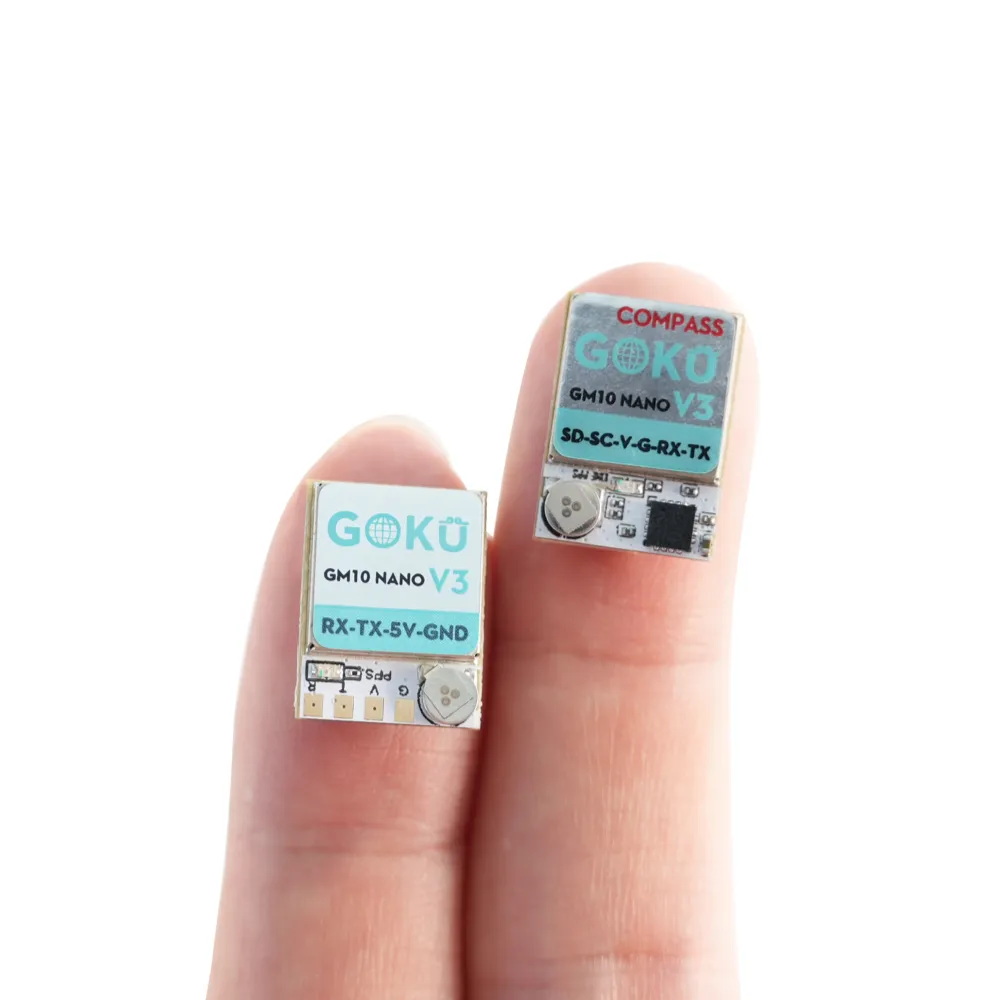

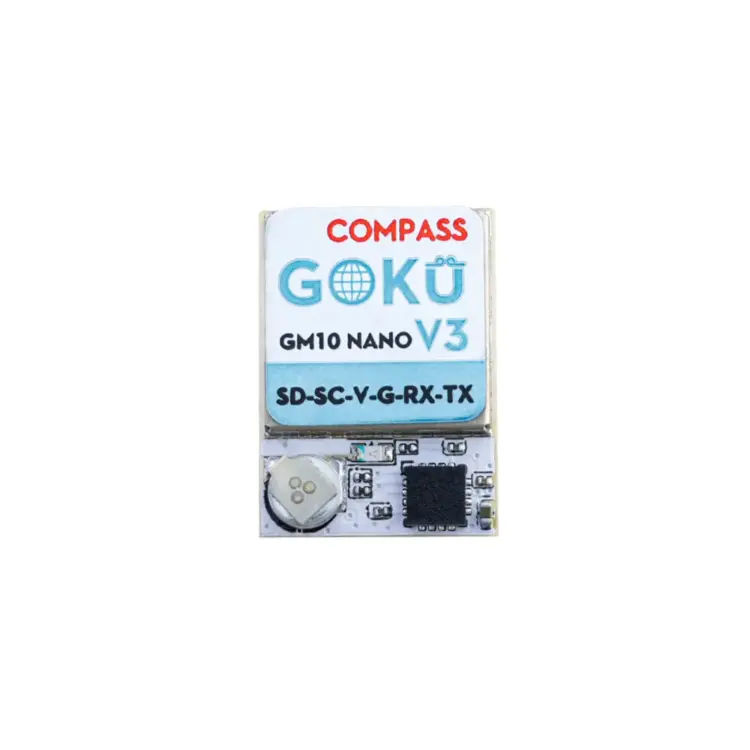

Model: GM10 NANO V3 GPS w/compass

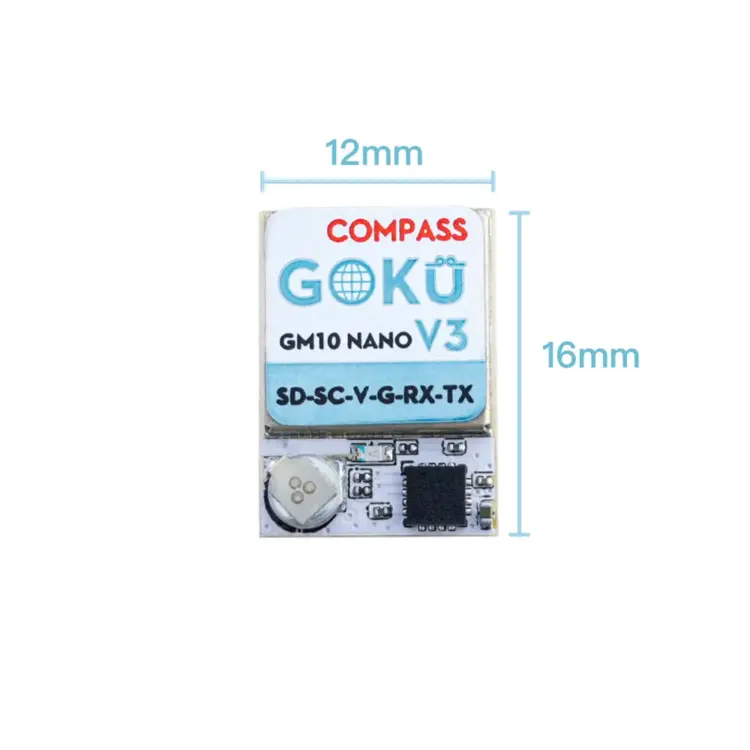

Dimension :12mm*17mm*5mm
Weight : 2.6g
Connector : 4pins Pad

Features:
1、GPS Module. Three Modules.
2、4pins Pad, ultra light weight
3、With a compass and a plug.
4、Plug and play, no need for soldering.

Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel

Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm

Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz

Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g

Power consumption
VCC : DC Voltage ：3.3-5V
Operating temp :　-40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C

Indicator :
PPS LED: Yellow. PPS LED not bright when GPS not fixed, flashing when fixed.
The Module’s Pins: RX TX 3.3-5V GND

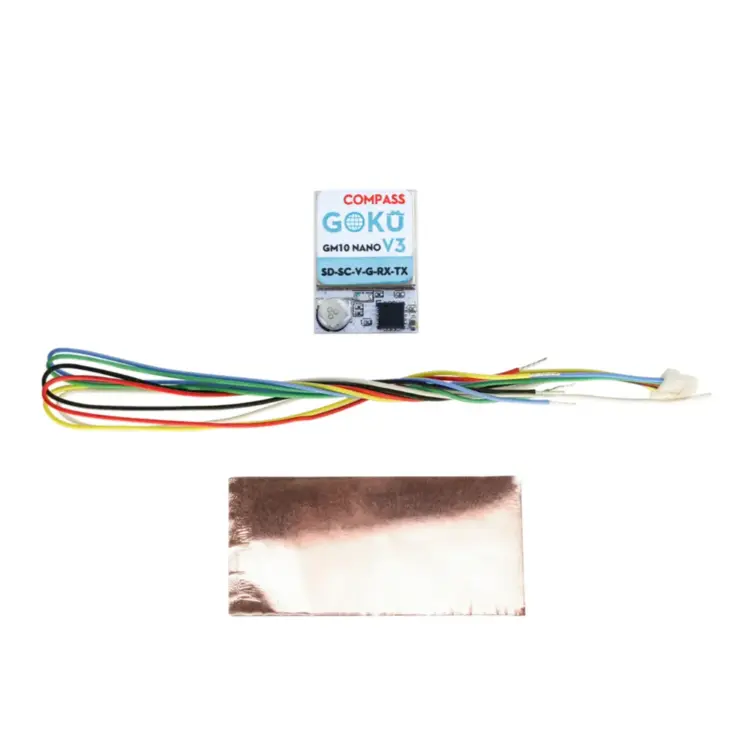

Includes
1x GM10 NANO V3 GPS w/compass
1x 100mm Cable
1x Copper Foil
