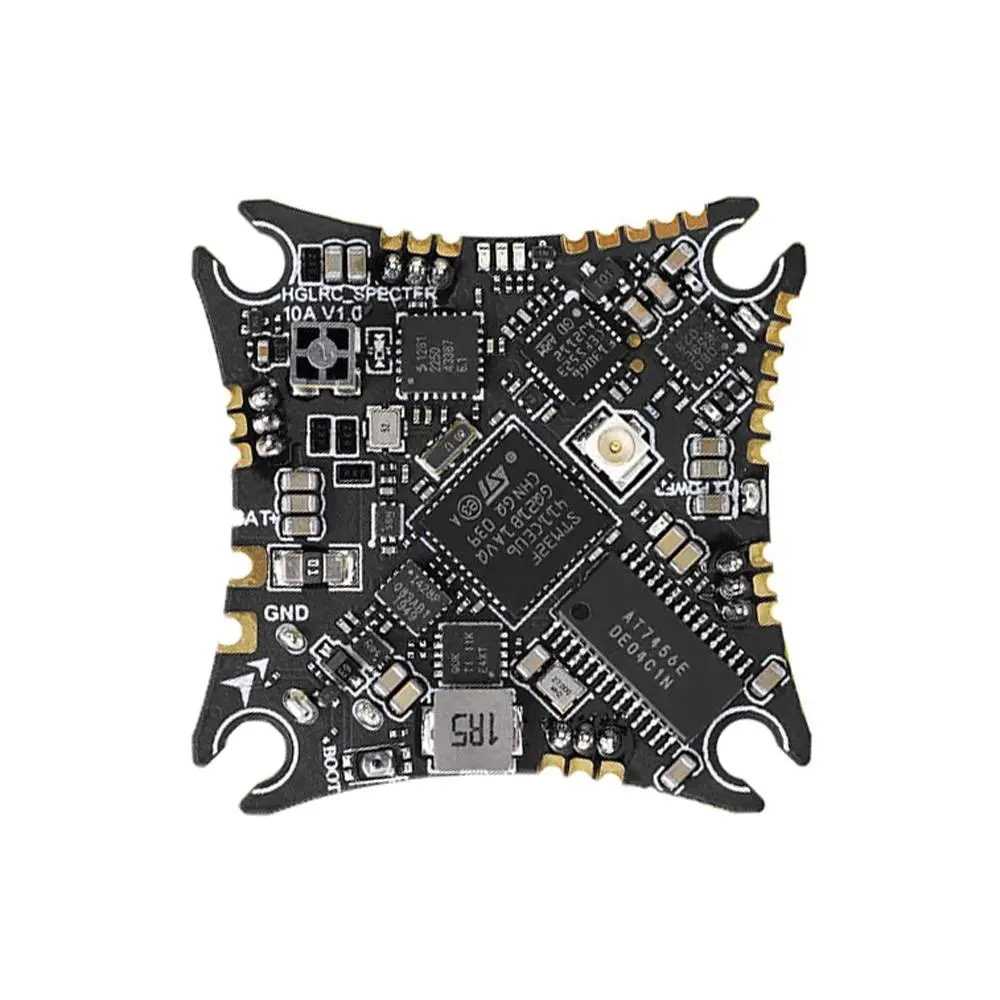

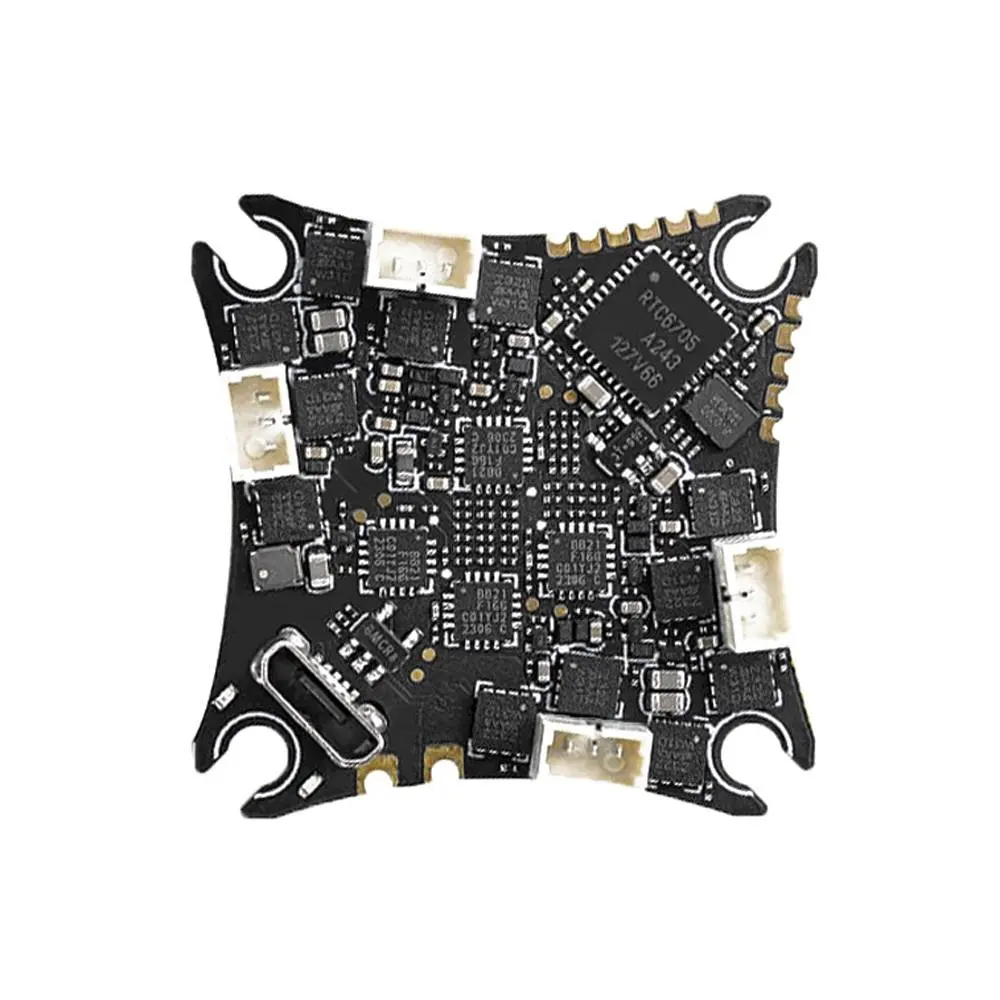

HGLRC Specter AIO – F411 ELRS FC + 10A 1-2S BLHeli_S ESC + 400mw VTX

The HLRC Specter AIO is a remarkable piece of technology, combining an ultra-light F411 10A 1-2S AIO brushless flight controller, a cutting-edge SPI ExpressLRS 2.4G receiver with patch ceramic antennas, and a versatile 400mW 5.8GHz adjustable power video transmission. This compact device excels in sensitivity and responsiveness, making it a favorite among FPV enthusiasts. It’s the perfect fit for a wide range of drones, from lightweight toothpick designs to whoop series, offering exceptional performance in any environment.

• Built-in SPI ELRS receiver/or external CRSF protocol receiver
• Built-in integrated TBS 400mW 5.8GHz analog video transmission
• Independent 3P socket, which can be directly connected to the motor
• By default, the Bluejay firmware is flashed to improve flight efficiency, which is the best choice for the drone
• Compatible with all 65mm-85mm hoop/toothpick frames
• Maximum support for an input voltage of 1-2s

• Product name: SPECTER 10A 1-2S AIO
• MCU: STM32F411
• MPU: IXM42688
• BEC: 5V1.5A
• OSD: support
• LED: support
• Buzzer: support
• UARTS: UARTS1 image transmission OSD Adjustment parameters/UARTS2 CRSF protocol receiver/ VTX HD
• Built-in receiver: SPI ExpressLRS 2.4G
• Built-in receiver frequency: 2.4GHZ
• Built-in image transmission: 25-REC-100-400mW (adjustable)
• Built-in image transmission frequency: 48CH-5.8ghz
• Continuous current: 10A
• Peak current: 13A (10s)
• ESC protocol: Dshot600, Oneshot, Multishot
• Flight control firmware: HGLRCF411SX1280 V2
• ESC firmware: Z-H-30 (Bluejay)
• Input voltage: 1-2S 3.7V-7.4V (Lipo)
• Size: 32x32mm
• Mounting hole: 25.5X25.5mm.M2
• Weight: 4.9g

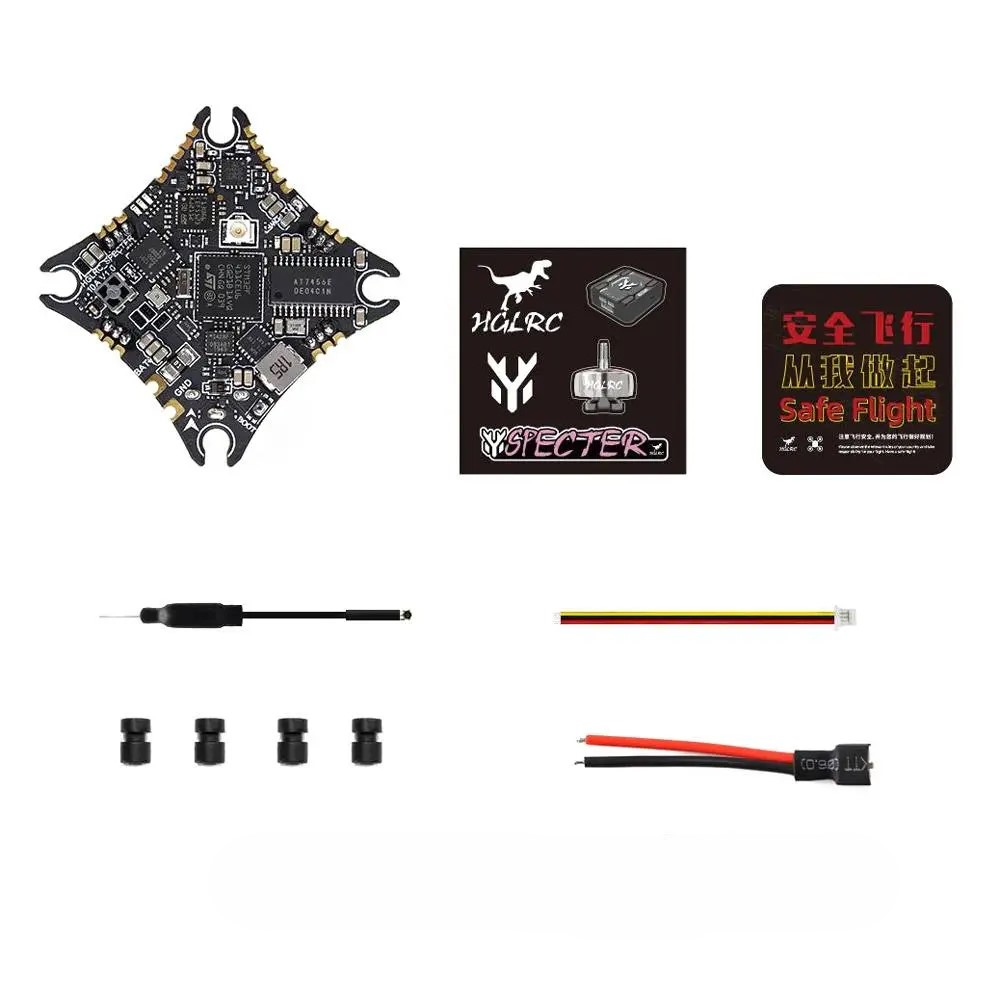

• 1x HGLRC Specter AIO – F411 ELRS FC + 10A 1-2S BLHeli_S ESC + 400mw VTX
• 1x PH2.0-2P 22AWG 35mm male power cord
• 1x MX1.25-3P 30AWG 75mm camera cable
• 4x M2*6.6 Shock-absorbing column
