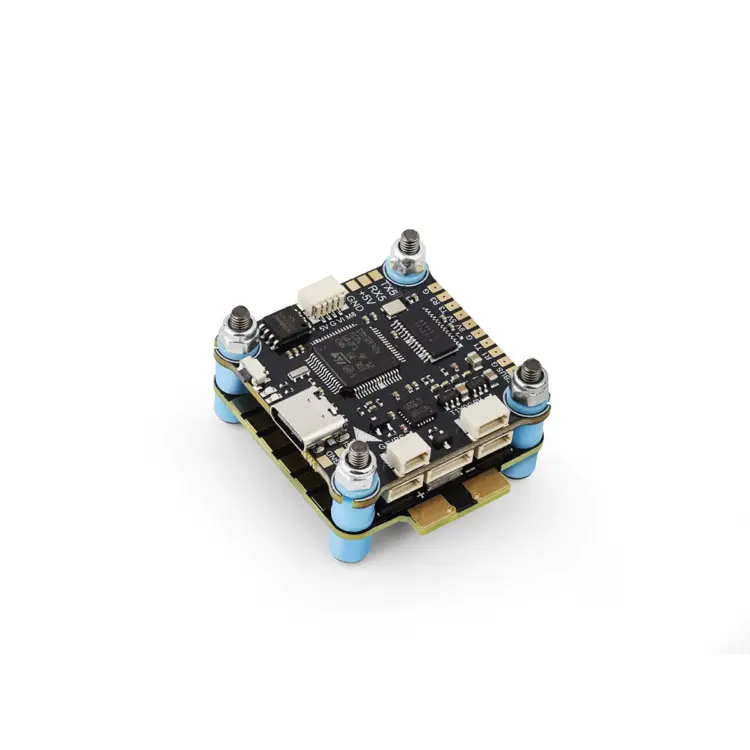

Features of HGLRC SPECTER F460 STACK

•  The flight control adopts the extremely stable MPU6000 gyroscope;
•  The flight control main control chip adopts F405 chip, and the serial port supports up to 4 groups, with fast operation speed and smoother control;
•  The main chip of the ESC selects a new imported FD6288 processor, which is matched with ON3109 high-performance MOS, and can continuously withstand current and stabilize output;
•  It can be quickly connected to the camera/receiver/image transmission/LED/GPS through the socket, no welding required;
•  Maximum support for BEC 9V2A/BEC 5V2.5A, which can provide stable voltage and current output to external devices;
•  Immersion gold high-tech design is temperature-resistant and current-resistant, the ESC has a large pad, and the flight controller is directly plugged in, so there is no trouble in welding;
•  Integrated 16M black box, can record flight data;
•  Onboard galvanometer module, real-time viewing of data such as current feedback through the flight control;

Item Name:HGLRC SPECTER F460 STACK

Input Voltage:2-6S Lipo (7.4V-22.8V)
Installing Hole:30.5×30.5mm, M3
Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot
Weight:29g

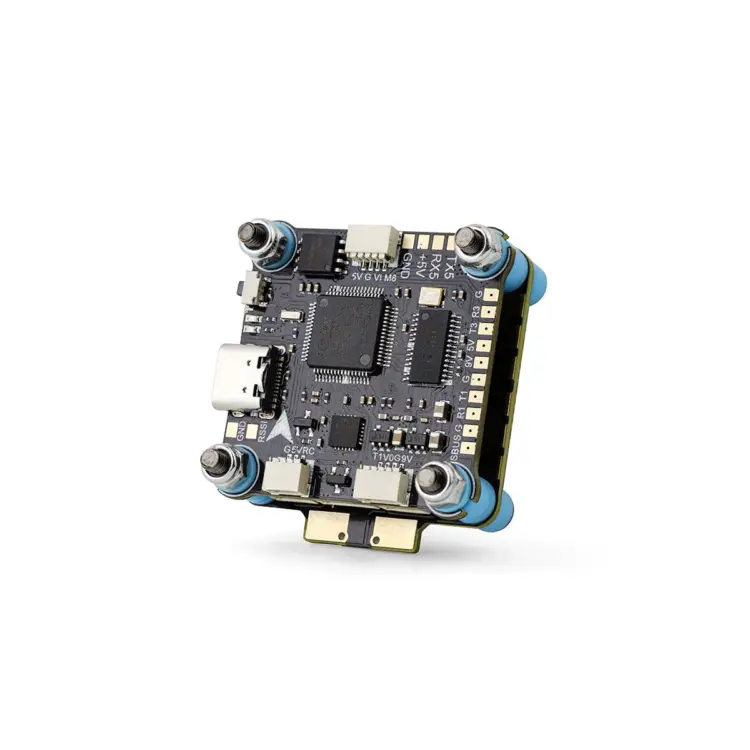

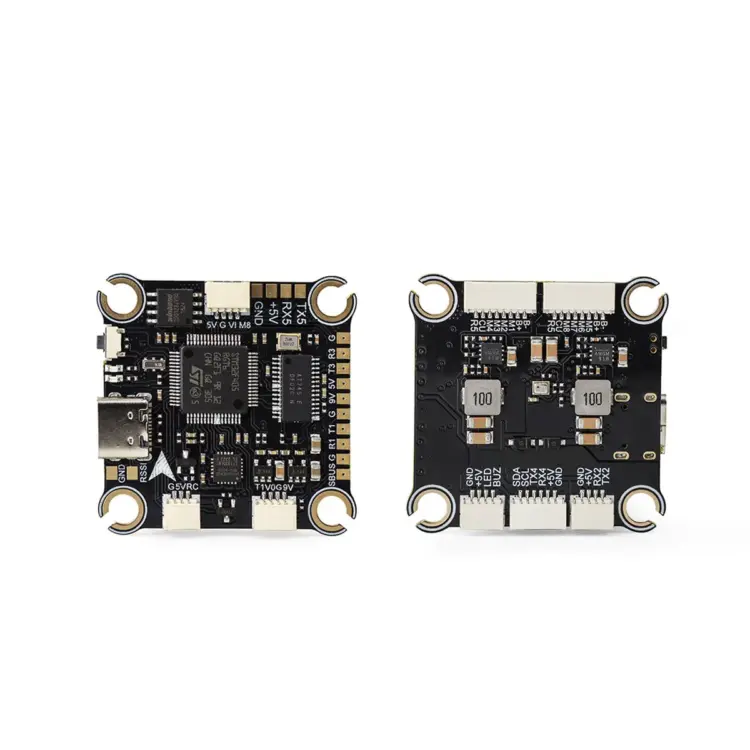

SPECTER F405 FC

MCU：STM32F405
GYRO：MPU6000
OSD：AT7456E
Blackbox：16MB
UART：4
BEC：9V2A/5V2.5A
FC Firmware：HGLRCF405V2
Size：38mm*38mm

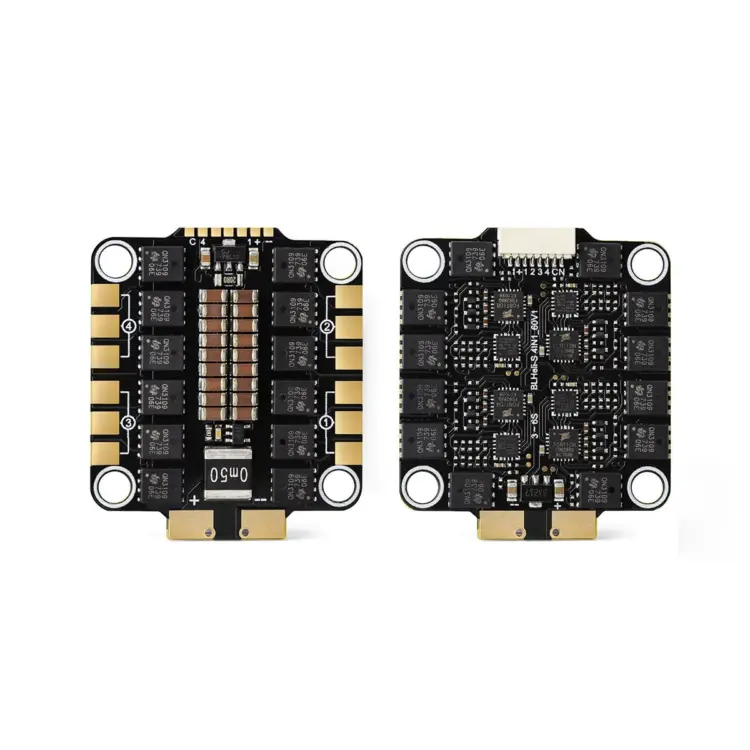

SPECTER 60A ESC

Constant Current:60A
Peak Current:70A（10s）
ESC Firmware:BL_S (J-H-30)
Size:37×42.7mm

Package Includes:

1x HGLRC SPECTER 60A ESC
1x HGLRC SPECTRE F405 V2 FC
1x Accessory Bag
