Stable output power

4 Power levels up to 1600mW;

40 Channels (including Raceband)

Fast frequency lock, no startup interference with other pilots

Built-in output power self-check functionality

VTX telemetry with IRC Tramp protocol

VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you’re flying legal frequencies and use our prepared Betaflight VTX tables according to your region.

Input voltage: 7V～34V

Interface: MMCX

Power levels: PIT/25mW/400mW/800mW/1600mW

Channels: 40 (including Raceband)

Mounting pattern: 30.5×30.5mm/Φ3

Lightweight: 18.9g (excluding antenna)

VTX telemetry: IRC Tramp

Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!

RC Tramp VTX table values: 25mW/400mW/800mW/1600mW

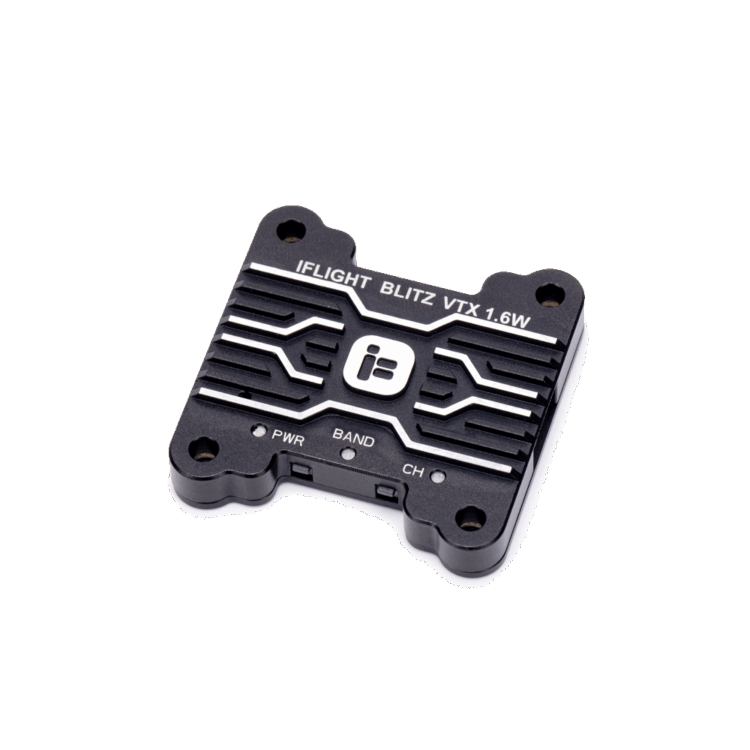

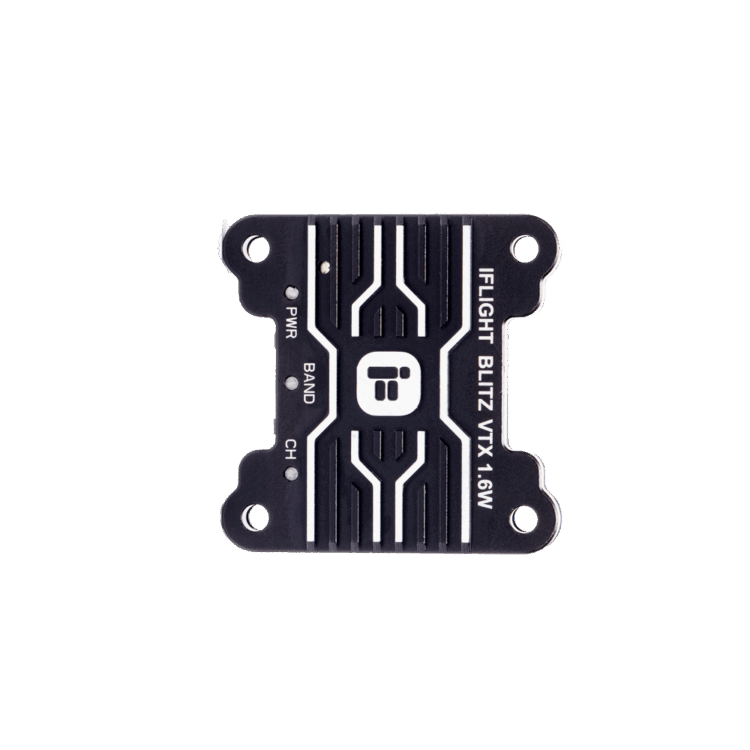

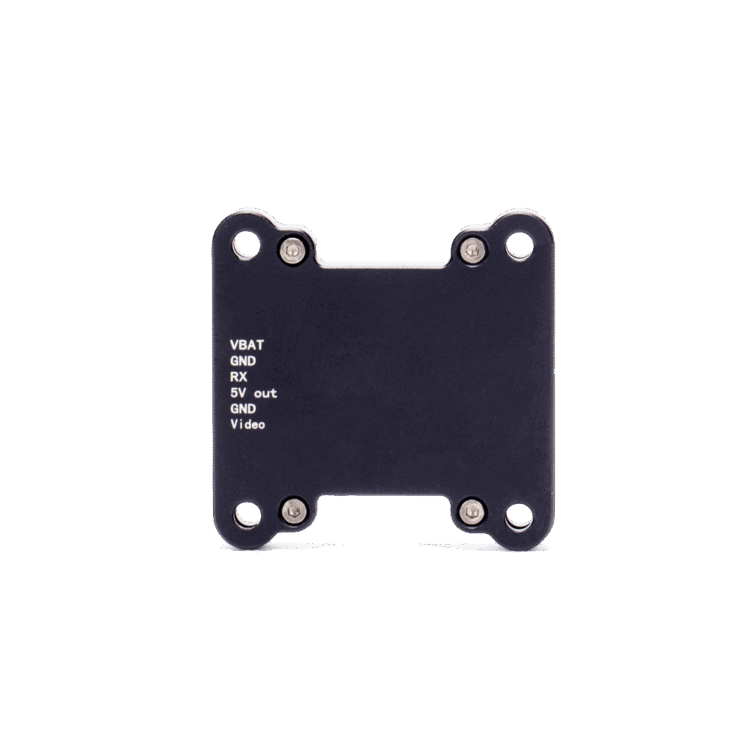

1 x iFlight BLITZ 5.8GHz 1.6W VTX
