BUILT IN 2.4G CC2500 RECEIVER

5A CONTINUOUS CURRENT

SUPER LIGHT ONLY 4.8G

MCU：STM32F411

POWER SUPPLY: 1S

GYRO: BMI270

Weight: 4.8g (with power cable, VTX, and VTX antenna)

Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)

Supported Protocols: CC2500, SPI, D8, S-FHSS

FC Firmware: IFLIGHT_F4SX1280

BEC output: 5V 500mA

Connector: Micro-USB

MCU: STM32F411

INA pad: n uart2

Barometer: NO

Size: 29*29mm

Gyro: BMI270

Blackbox: NO

NOTE: F.PORT protocol RX input support, telemetry not supported.

ESC // 5A

Signal Support: Dshot, Oneshot, Multishot

Current: 5A continuous and peak 6A

ESC Firmware: O-H-30 BLS 16.8 (BlheliS) / Bluejay Q-H-50 (Bluejay)

Current sensor: yes

ESC Telemetry: NO

Current scale: 400

Input: 1S

Protocol: Smart audio

Power: PIT/25/50mW

Connector: UFL/IPEX

Input voltage: 5V

Channels: 48CH

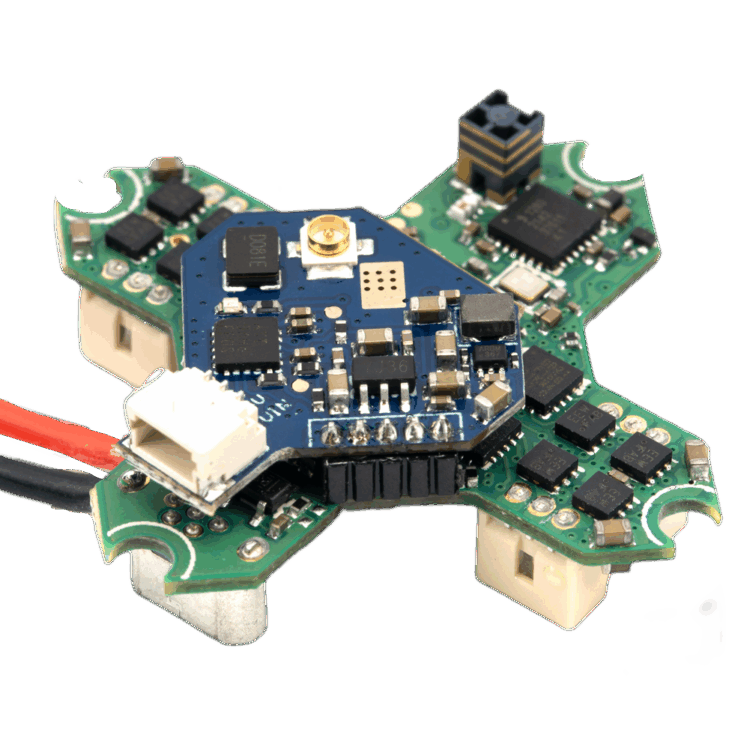

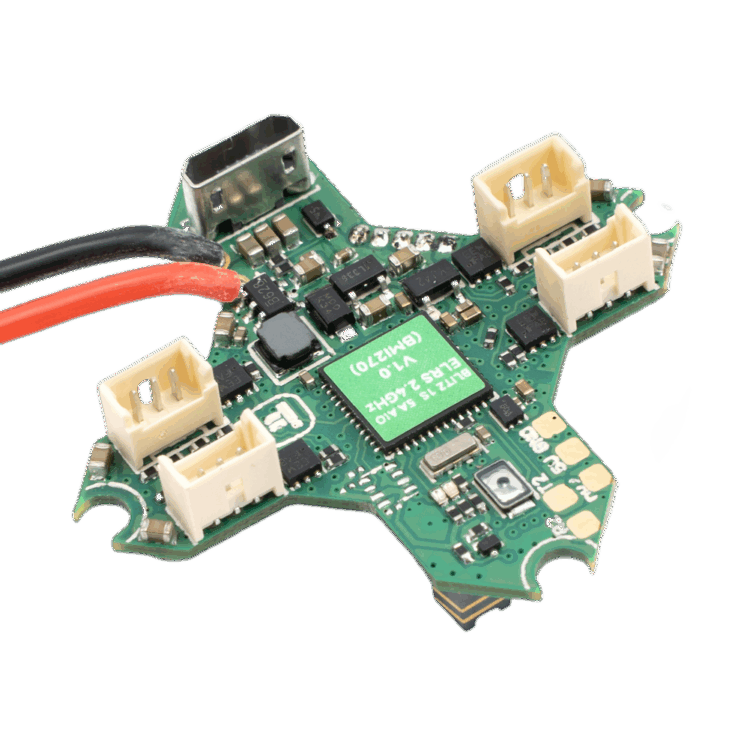

1 x BLITZ F411 1S 5A Whoop AIO Board with Built-in 2.4G CC2500 Receiver / 2.4G ELRS w/SMD Antenna (As optional)

4 x M2 Rubber Balls

1x Whip antenna
