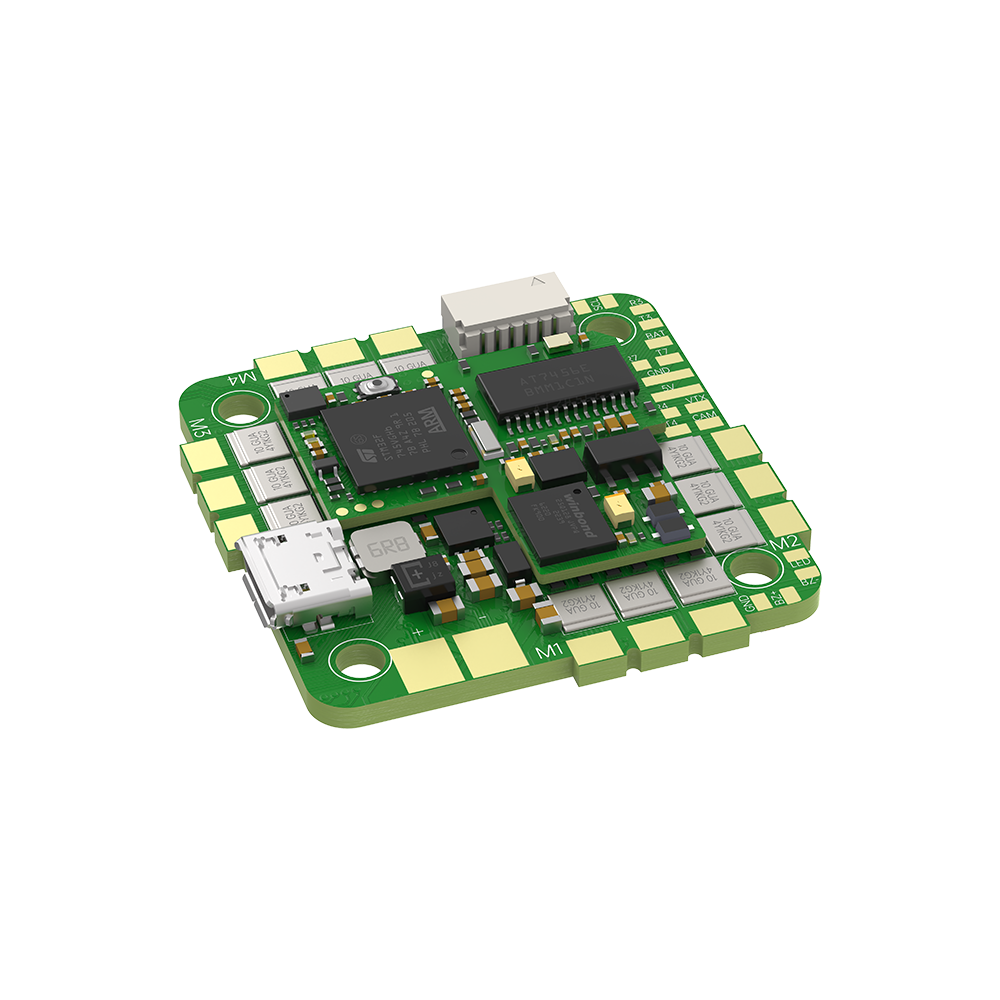

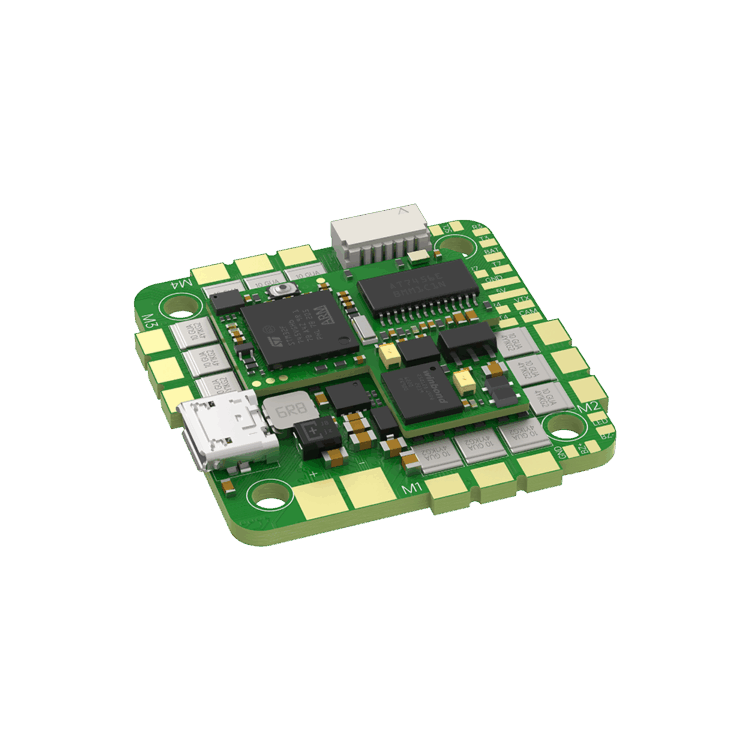

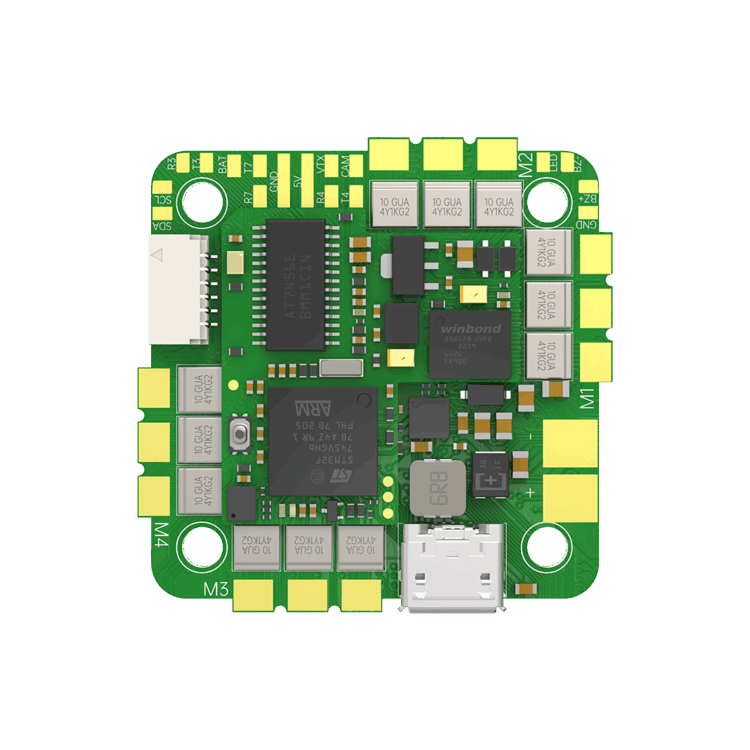

iFlight BLITZ Whoop F7 AIO
This is our new iFlight Whoop F7 AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc.
In stock
₹10,499
Orders placed before are shipped on same day
In stock
SHARE
Same Day Shipping
Mon-Sat til 2.00PM on Most orders
Provide Warranty
Seller & Manufacturer Warranty
Best Prices
Best Prices in India
Best Customer Support
Industry leading support
This is our new iFlight BLITZ Whoop F7 series AIO FCs for your ultimate build. A future proof all-in-one FC to step up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. Lightweight, minimum size, minimum work.This could only be achieved by using BGA chipsets instead of ordinary QFP (big size) MCUs and ultra powerful Mosfets for almost any build. Solder your motor wires on and let’s go!
Features of BLITZ Whoop F7 AIO
Separated Flight Control board to minimize electrical gyro noise
Pass-through DJI O3 and Caddx Vista/Polar Connector
FC PCB can be disassembled from the ESC PCB; Repair allowed!
MCU: BGA-STM32F745, 216MHz
OSD: AT7456E
Blackbox: 16MB Onboard Flash
Gyro: ICM42688
Changelog
December 26, 2023: The gyro was changed from BMI270 to ICM42688.

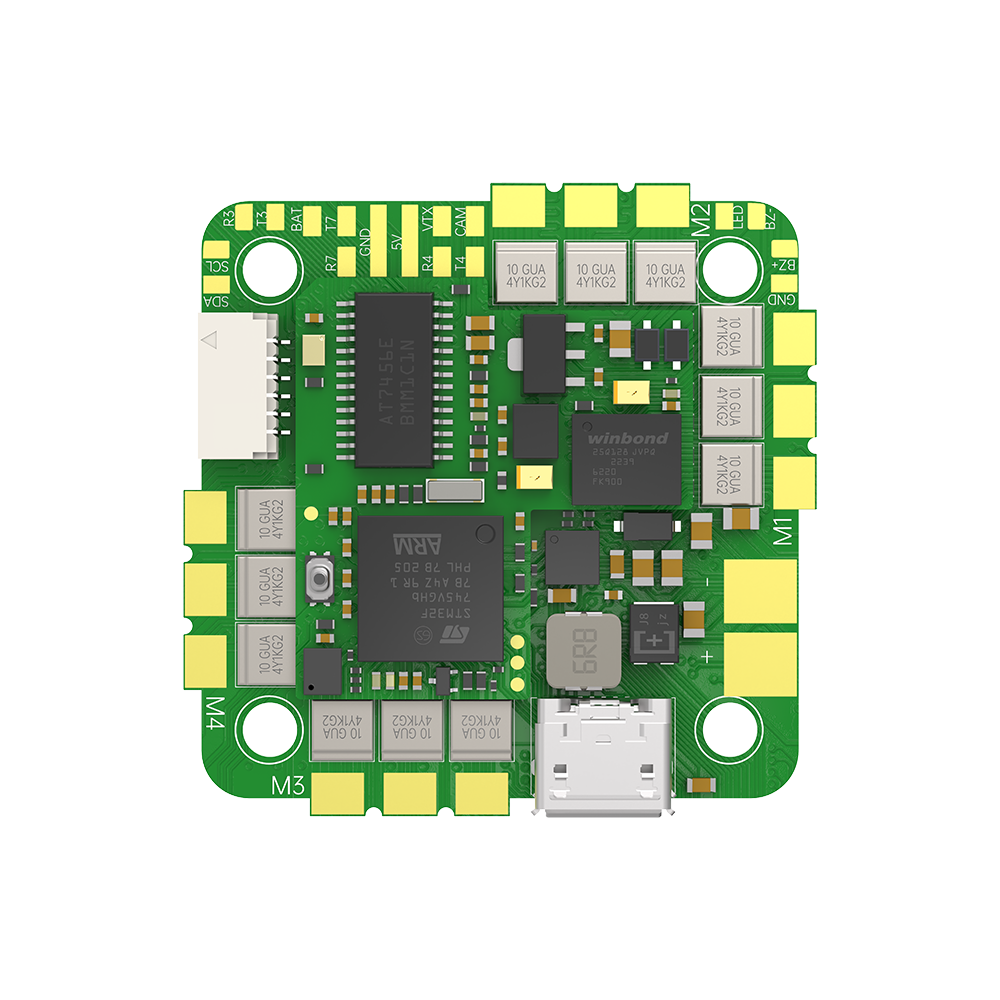

FC Specifications
MCU: BGA-STM32F745
Gyro: ICM42688
Blackbox: 16MB Onboard Flash
BEC output: 5V 2.5A
WS2812 LED Strip: Yes
Buzzer: Yes
Barometer: DPS310
Connector: Micro-USB
OSD: IFLIGHT OSD (AT745E）
FC Firmware：IFLIGHT_BLITZ_F7_AIO

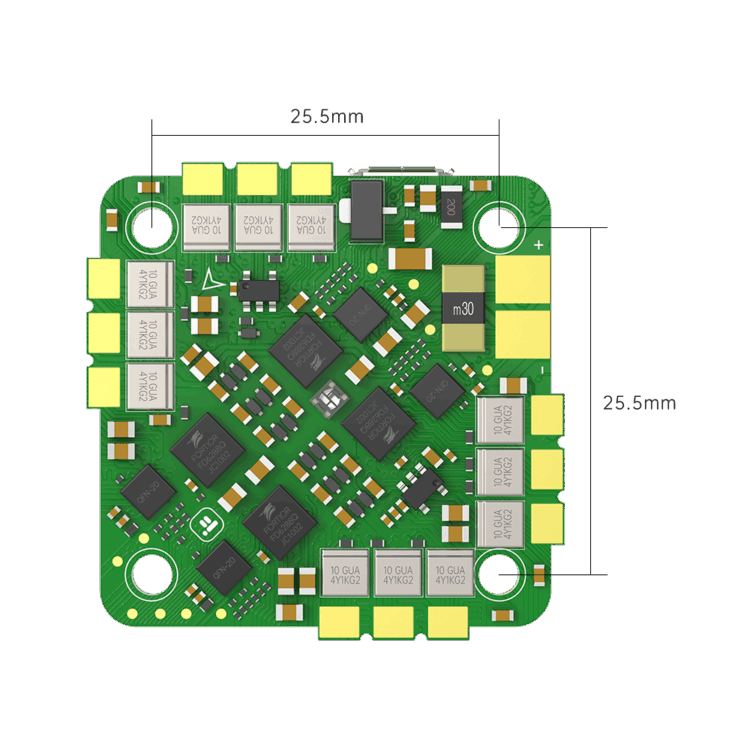

Mounting pattern: 25.5*25.5mm φ3mm
Dimensions: 35*35mm
Weight: 10.5g
BEC: 5V 2A / 3A
Input voltage: 2-6S, support LIHV battery
Smartaudio / IRC Tramp VTX protocol supported

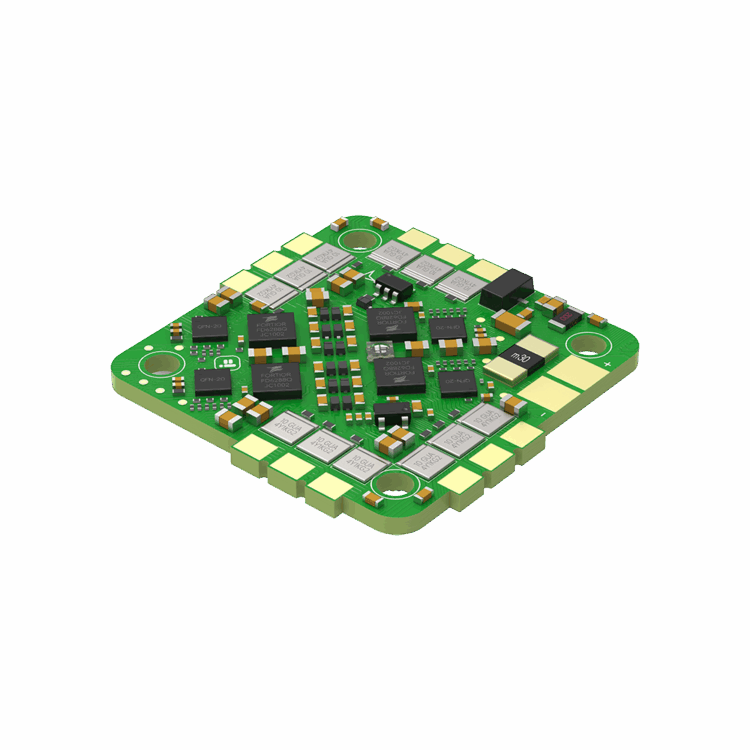

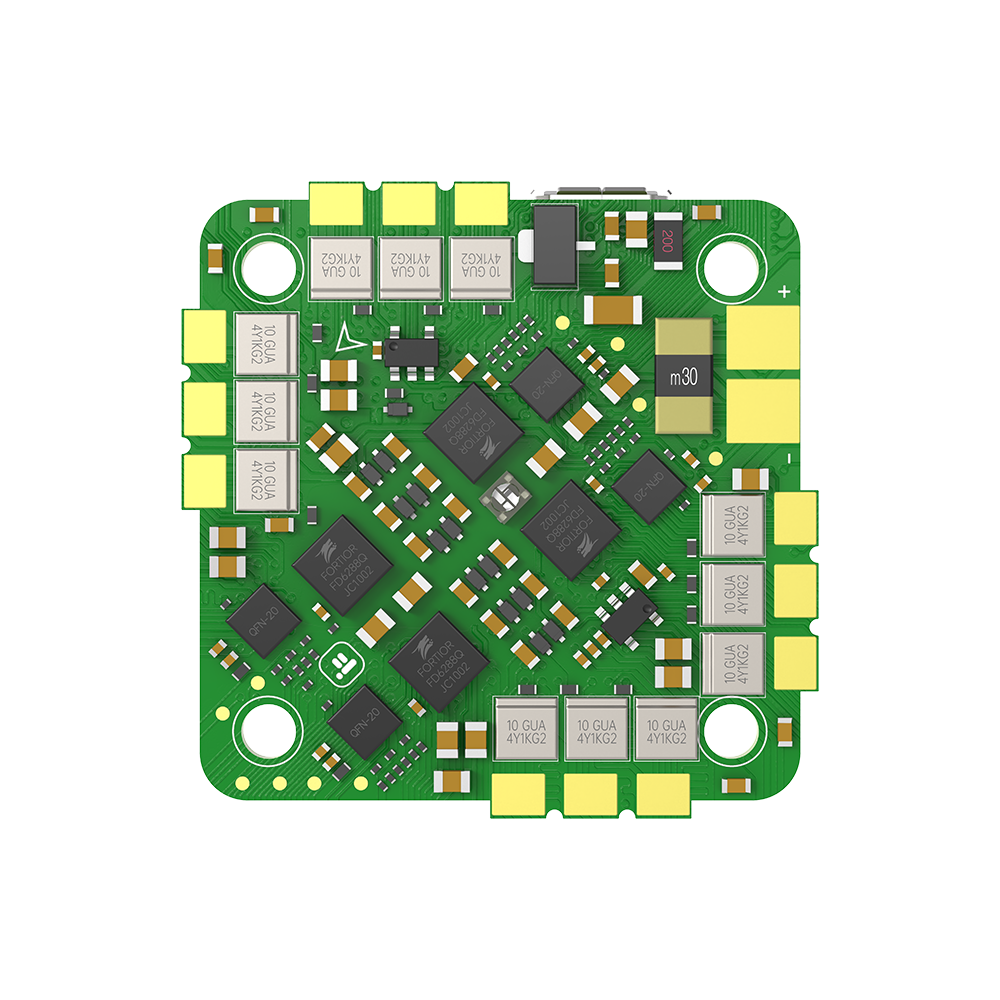

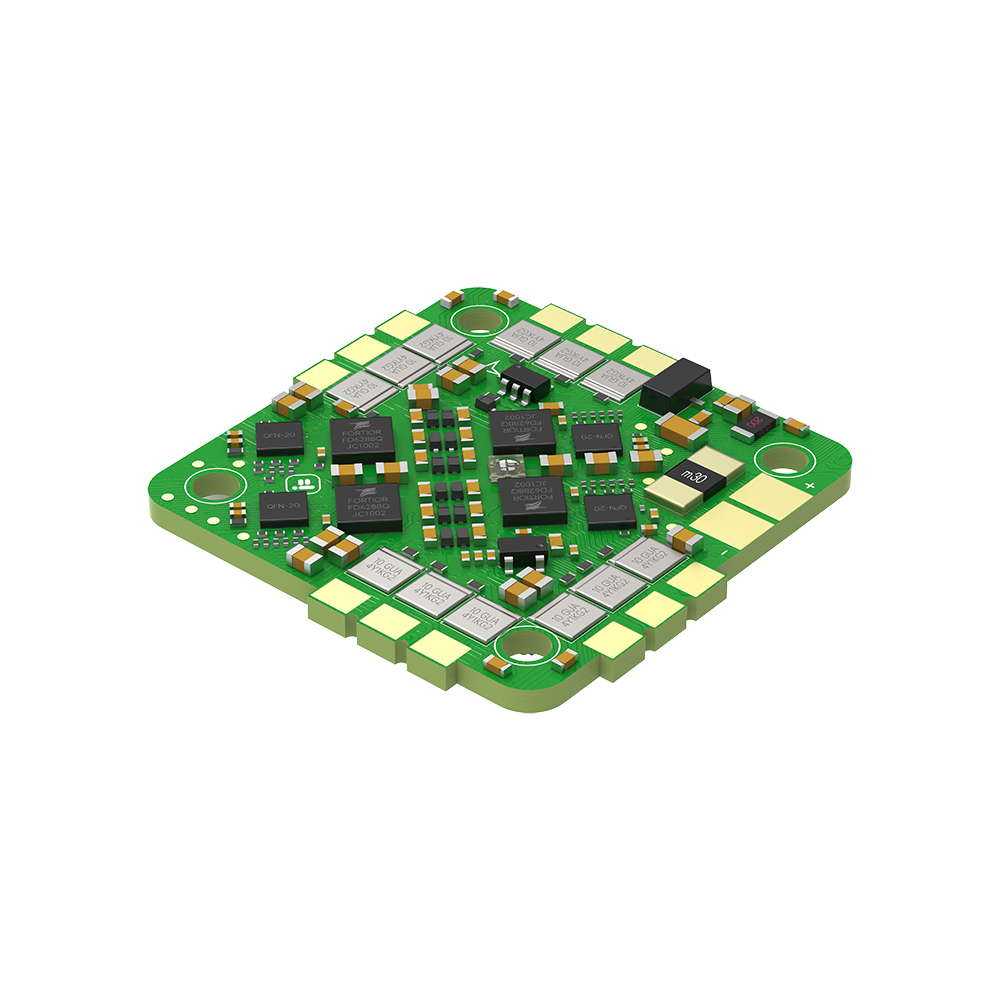

ESC Specifications
ESC MCU: BB21
Driver: FD6288
Input voltage: 2-6S Support LIHV battery
Output current: 55A, peak value 65A (10 seconds)
ESC firmware: Q-H-40 – Bluejay, 0.16, 24kHz
Current sensor: ratio 200 (1/10mV/A)
BEC: NO
ESC Telemetry: NO
Bidirectional DShot: Yes(need to use Bluejay firmware)
Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
Packing List
1 x BLITZ Whoop F7 AIO
2 x Capacitor 470uF/35V
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
8 x M2*12mm screws
8 x M2 Transparent Nylon Nut
10 x 0.8mm black Heat shrink tube 10mm
