The iFlight XING E Pro 2207 motors are known for their efficiency, providing longer flight times without compromising on performance. This is available with two KV rating which is 1800KV and 2450KV. The KV rating determines the motor’s RPM per volt and is chosen based on the desired balance between speed and torque, to know more about. It supports a wide range of battery voltages, from 2S to 6S, making it versatile for different types of FPV drones, from freestyle to racing setups.
Built with high-quality materials such as Japanese NSK bearings and a titanium shaft, the motor is designed to withstand the stresses of high-speed flying and crashes. It features a cooling design that helps in dissipating heat more effectively, allowing the motor to run cooler even during intense flying sessions.
XING-E Pro 2207 motor Features
- Xing e 2207 has Robust 5mm steel shaft
- High-temperature N52H magnets with NSK bearings
- 16x16mm hole layout
- Single strand copper winding
- Hex bolt shaft secured by set screw
Specifications
– Available with 2207 1800KV and 2207 2450KV
-Configuration:Â 12N14P
-Stator Diameter:Â 22mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 5mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension: 28.5×19.7mm
-Weight: 33.8g (150mm wires)
-Idle Current @12.6v (Io):Â 1.2 A
-Cells (LiPo): 2-6S
-Max Power (W) 60s: 845W
-Internal Resistance (Rm): 81.5mΩ
-Motor Wire Length:Â 150mm / 20AWG

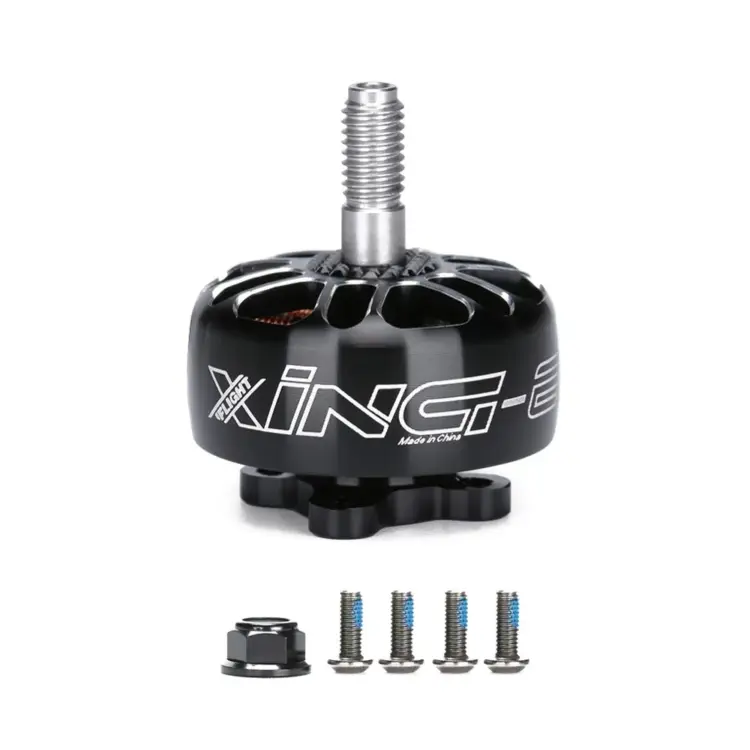

Package included:
1pc x iFlight XING E Pro 2207Â motor
