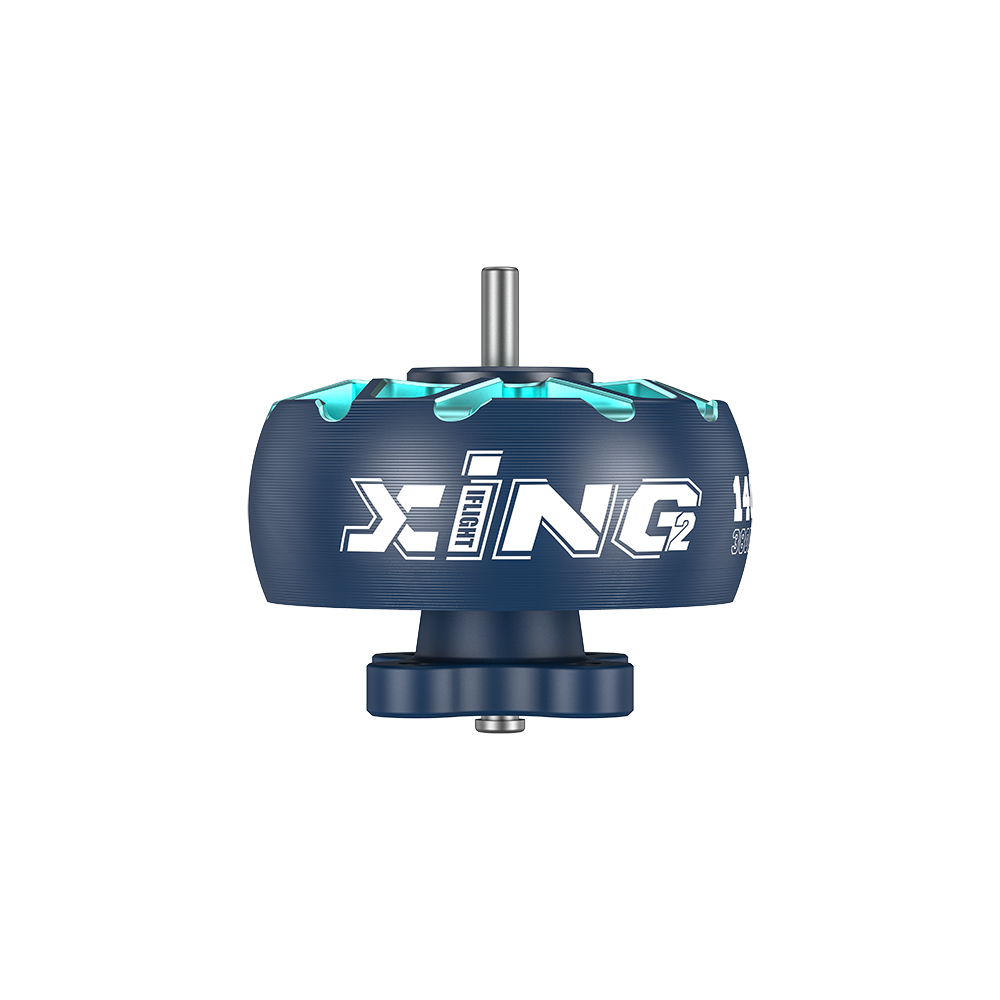

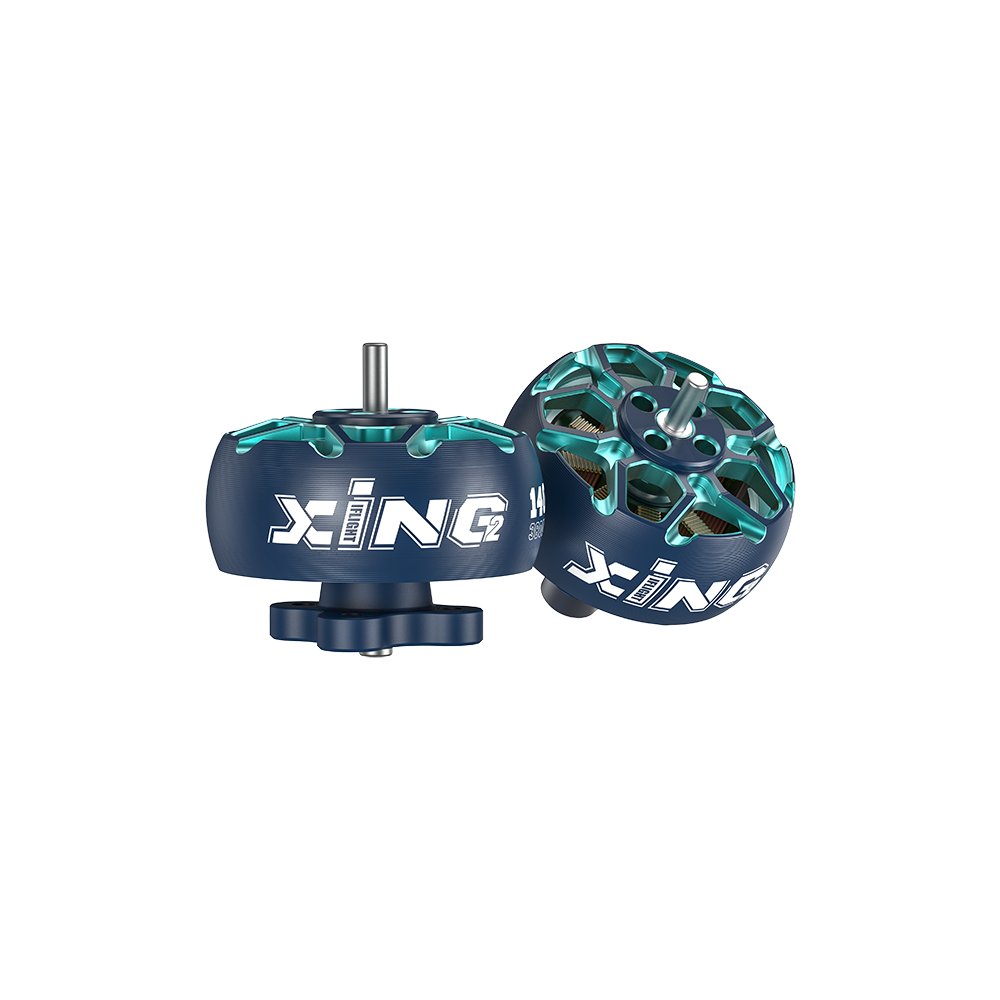

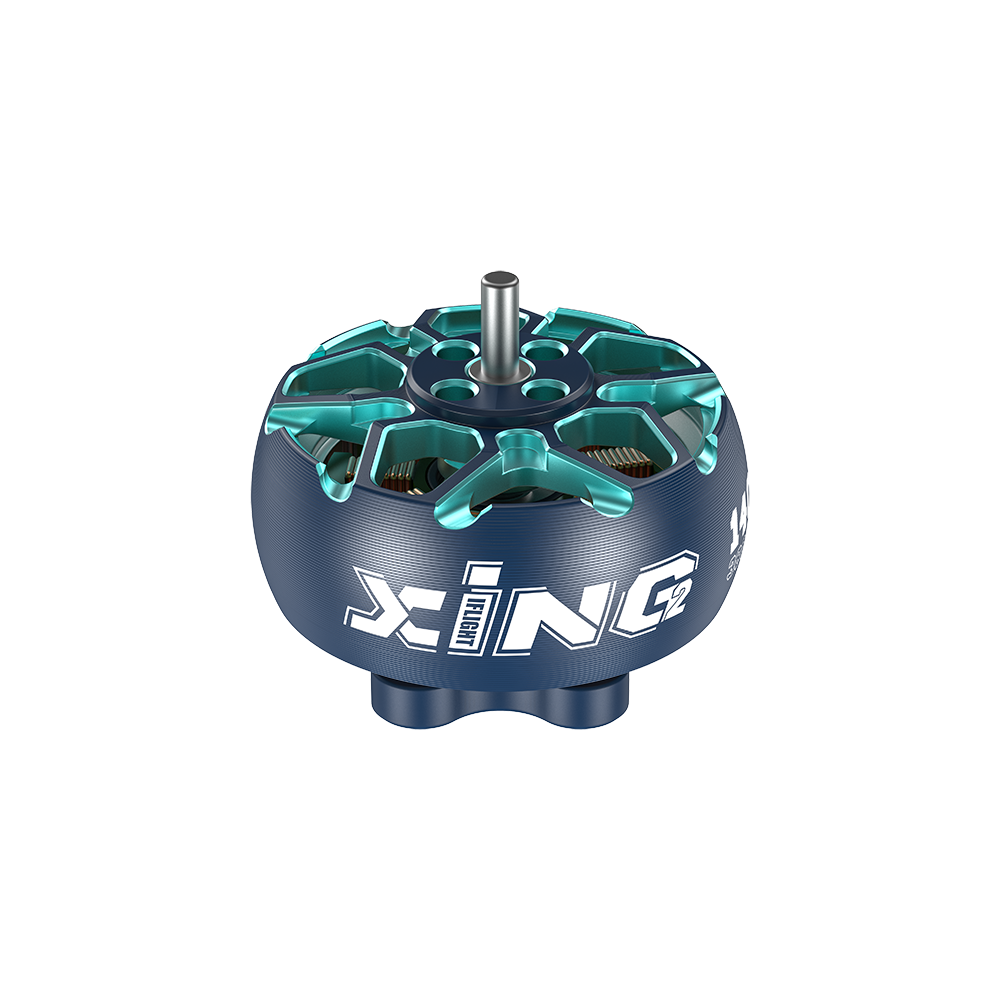

The XING 2 1404 3000KV / 3800KV / 4600KV brushless motor has high-quality materials and the durable connection between the bell and shaft, we successfully minimized the magnet air gap and stator lamination. A smaller air gap means lower reluctance and higher magnetic flux (the magnetic equivalent of current), leading to greater efficiency and increased power. All our expertise, along with high-quality 7075 bells, O-ring bearing protection, and other features you loved in the original XING series, are now integrated into a new shape and design. It is designed for ultralight builds, this motor delivers a punch of power while maintaining low energy consumption, allowing for longer flight times.

Specifications of XING 2 1404 drone motor

KV: 3000KV / 3800KV / 4600KV

Weight(included wire): 9.1g

Dimension: φ19.9*13.5mm

Interphase Resistance: 0.309Ω / 0.220Ω / 0.159Ω

Input Volts: 3S-4S

Peak Current:  13.8A / 15.84A / 17.99A

Max Watt: 220.8W / 253.4W / 287.8W

Mounting Holes: 9*9 φ2mm

Rotor Specifications:  Unibell

Lead: 120mm/26AWG

Magnet: N52H Curved

Configuration: 9N12P

Bearing Type: NSK

Winding: Single Strand copper winding

1 x iFlight XING2 1404 Motor Unibell

4 x M2x7 mounting screws
