Coming Soon ProductsiFlight XING2 2207 FPV Motor (Black)

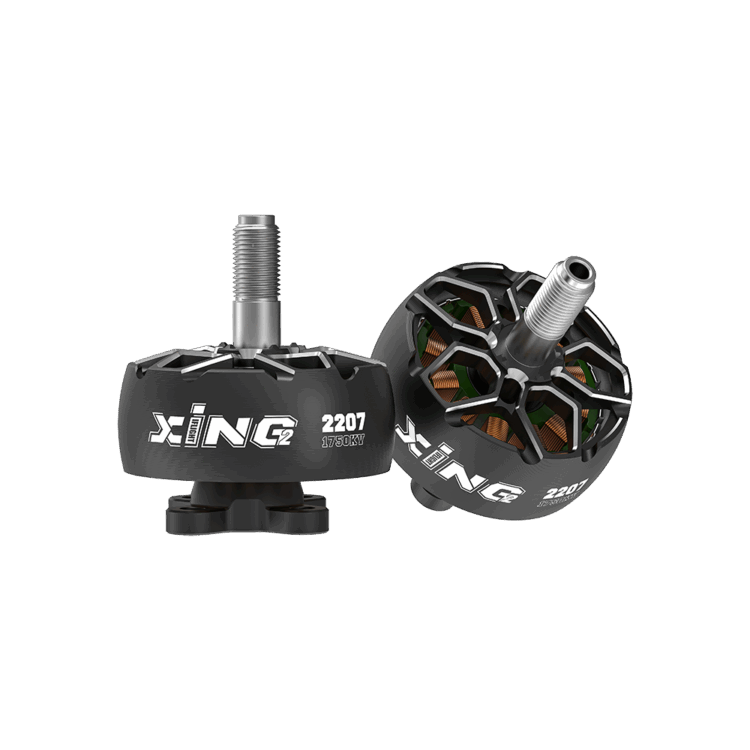

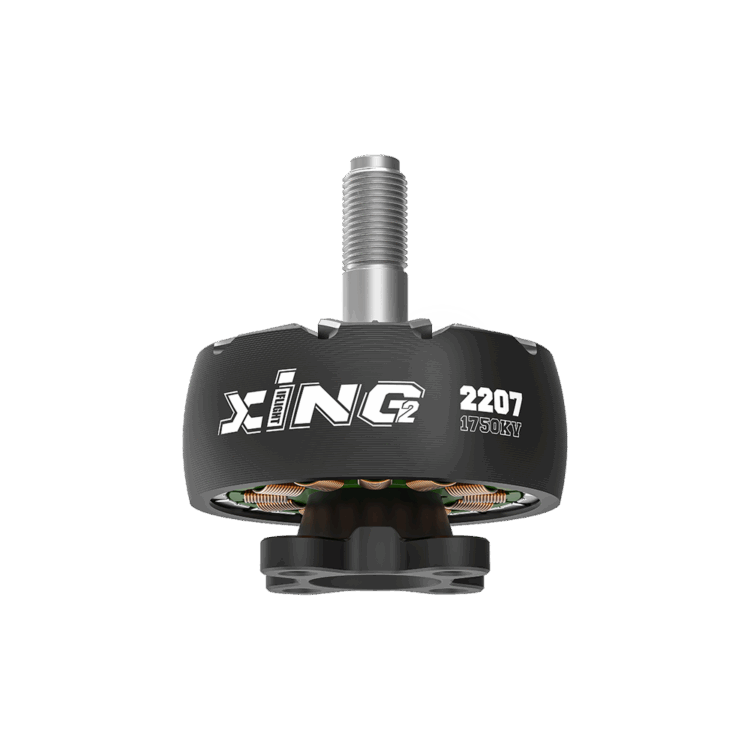

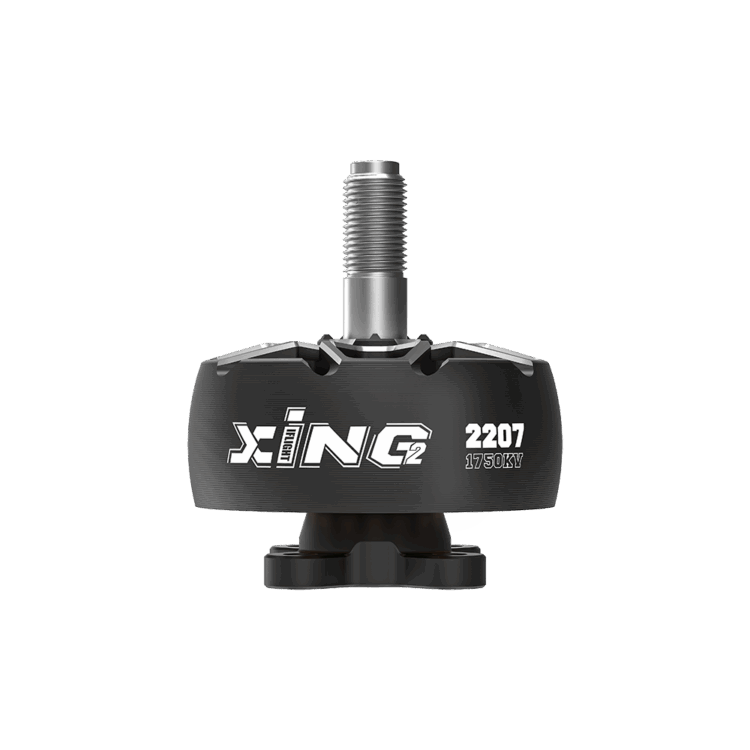

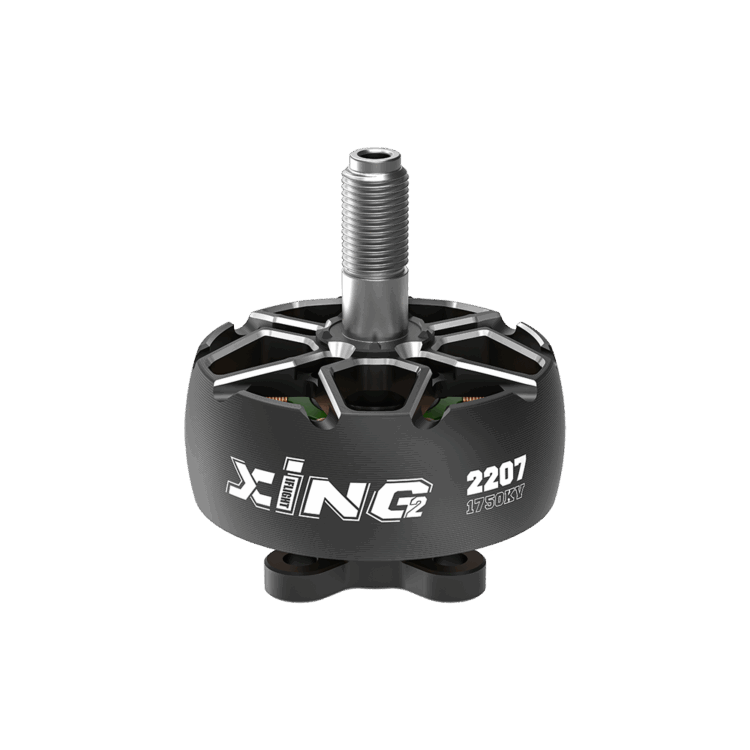

iFlight XING2 2207 FPV Motor (Black)
In both 1750KV / 2750KV of XING2 2207 FPV Motor has used high quality materials and the durable joint of bell and shaft, as we were able to reduce the magnet air gap and stator lamination to a minimum.
₹1,799
SHARE
Same Day Shipping
Mon-Sat til 2.00PM on Most orders
Provide Warranty
Seller & Manufacturer Warranty
Best Prices
Best Prices in India
Best Customer Support
Industry leading support
The iFlight XING2 2207 Motor features new center-slotted N52H curved arc magnets, significantly reducing motor response time! The motor’s translation delay during braking and acceleration has often been the biggest limitation in our FPV flight controllers. With the XING2 motors, you’ll experience faster responses that allow your PID loop to lock in more precisely than ever before!.
Our XING series NextGen motors have gained significant popularity since their debut in 2018, becoming the industry standard. Was it the innovative curved design, the internal damping ring that safeguards the bearing, or the superior NSK bearings paired with a top-grade titanium alloy shaft? We’ve faced imitations and comparisons over the years, but it’s time to raise the bar once again!
Features of XING 2 2207 Motor
Specification
KV: 1750KV / 2750KV
Weight(included wire): 30.5g
Dimension: φ29*19.25mm
Interphase Resistance: 74.23mΩ
Input Volts: 25.2V / 16.8V
Peak Current: 36.3A / 46.05A
Max Watt: 898W / 706.9W
Mounting Holes: 16*16 φ3mm
Rotor Specifications: Unibell
Shaft Diameter: 5mm
Shaft Protruding Length: 13.5mm
Lead: 160mm/20AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Type: NSK
Bearing Specification: φ9*φ4*4
Winding: Single Strand copper winding
Packing List
1 x iFlight XING2 2207 Black Brushless Motor
4 x M3*7 screws
1 x M5 Flanged Nylon Insert Lock Nut
Quadkart has biggest stock of best drone motors in India, click here to view more.
| Stator Size | |
|---|---|
| Mounting Holes | ⌀16mm M3 |
| Motor Shaft | M5 |
| KV | 1750 KV, 2750KV |
