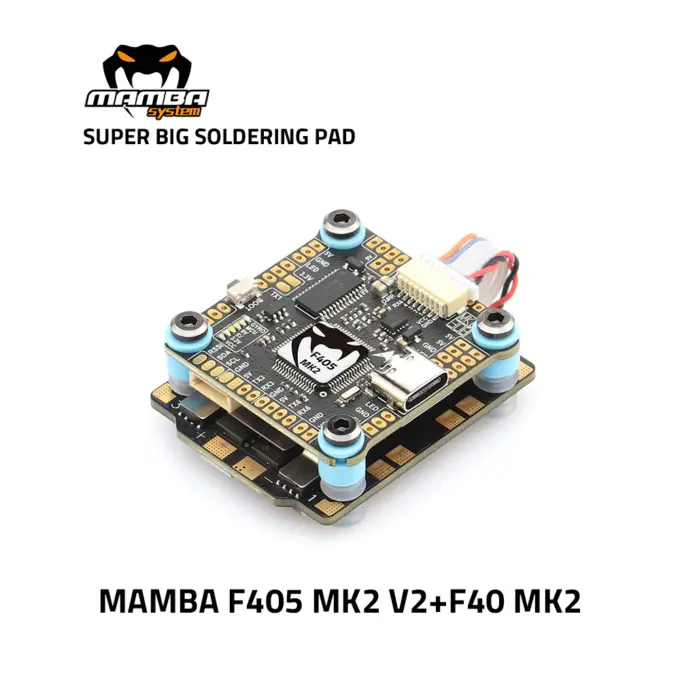

MAMBA F405 MK2 V2 Flight Controller ICM42688P
MCU: 168MHz STM32F405
GYRO: ICM-42688-P
Target:FURYF4OSD
OSD: Yes
Blacbox: 16M Flash Memory
Barometer: No
Uarts: 3 Set
I2C: Yes
F.Port: No
RSSI: Yes
Buzzer Pad: Yes
CURR Pad: Yes
ESC Signal: 4 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: No
Receiver Protection: Yes
BEC Protection: Yes
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 3A& 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting size: 30.5mm/M3
ESC Specifications

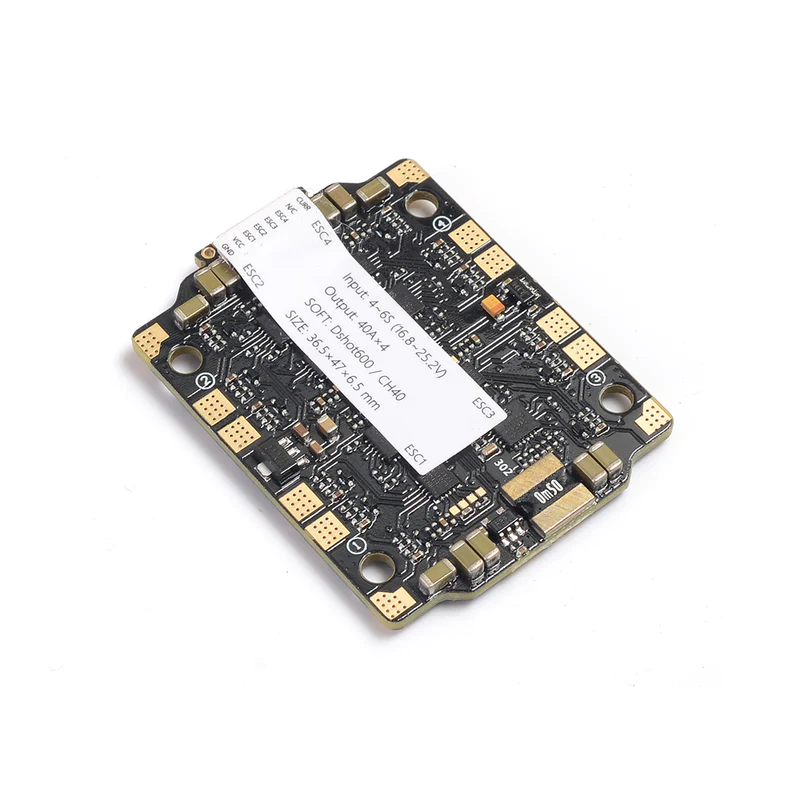

MAMBA F40MK2
Continue current:40A×4
Burst current 50A (10S)
BEC: No
Target:BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: No
MOUNTING: 30.5mm/M3
MAMBA F50_BLS
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current:50A×4
Burst current 50A (10S)
BEC: No
Target:BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: No
MOUNTING: 30.5mm/M3
