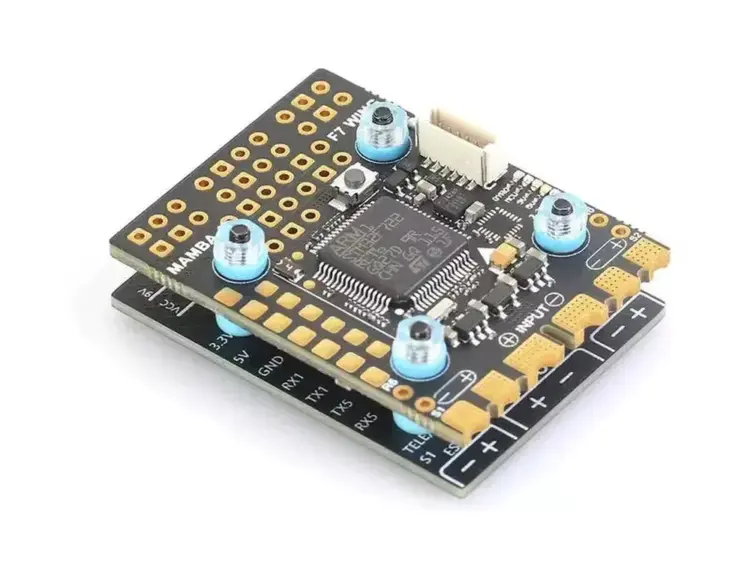

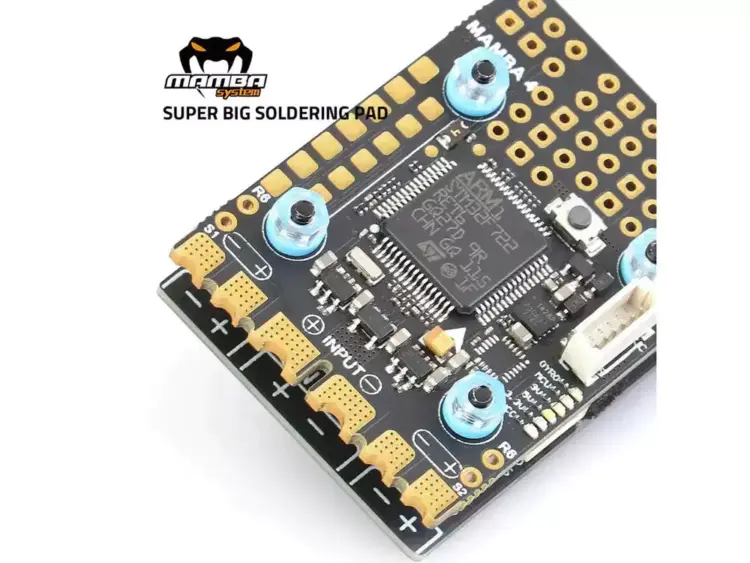

Mamba MK4 F722 Wing Flight Controller

The Mamba MK4 F722 Wing Flight Controller was designed to be the heart and brain of any fixed-wing build.  Features Diatone’s MK4 (4th generation) technology, this controller builds on the experience of previous generations, to create a dedicated flight controller for builders/pilots of fixed-wing models.

Specifications of Mamba MK4 F722 Wing

• MCU: 216MHz STM32F722
• GYRO: ICM-42688-P
• INAV Target：MAMBA F722_WING
• OSD: Yes
• Blackbox: 16M Flash Memory
• Barometer: SPL06
• UARTs: 8 Sets
• I2C: Yes
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 8 Sets
• ESC Soft: Dshot300/600
• Power Led: Yes
• LED Controller:  iNav LED
• Air Unit Port:  Yes
• VTX Switch:  Yes
• Receiver Protection:  Yes
• TVS Protection:  Yes
• Continuous Current:  40A
• Peak Current:  50A
• iNav Current Meter Scale:  225
• BEC:  3.3V 0.5A and 5V 3A and 9V 2A
• Input:  3~6S LiPo (12.6~25.2V)
• Mounting Size:  20mm, M2

Includes:
1x Diatone Mamba MK4 F722 Mini Wing Flight Controller
1x Air Unit 6P sh1.0 Cable
1x Type-C USB to 4P sh1.0 Cable
40x 2.54 Pins (unsoldered)
