Please note：This AIO only Support Alpha not support BetaFlight

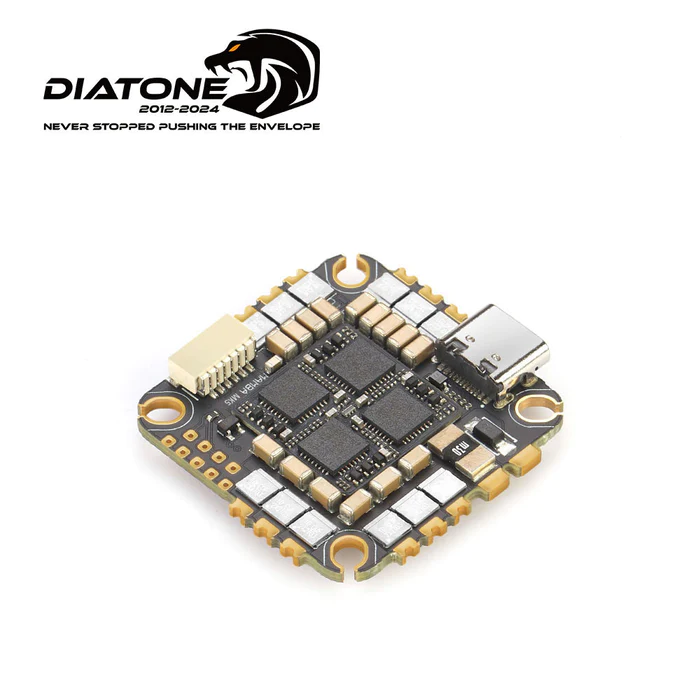

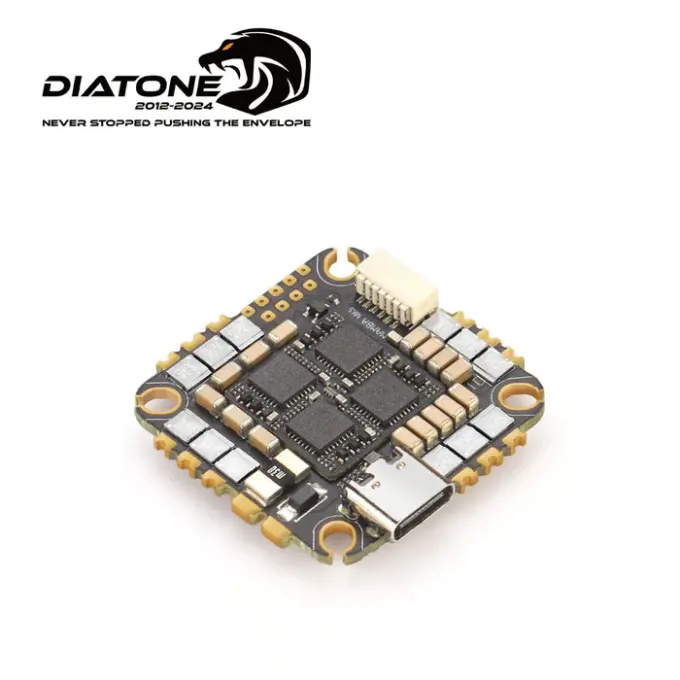

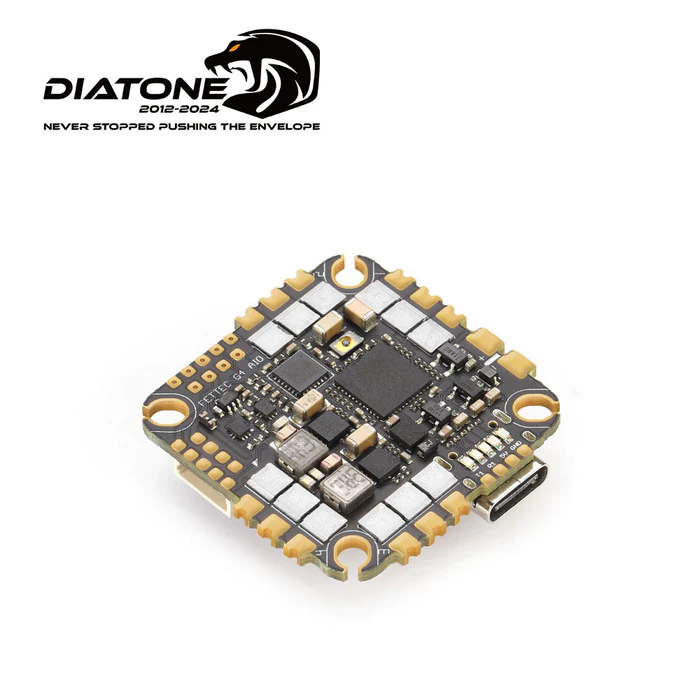

Specifications of MAMBA MK5 G4 AIO

FC Specifications

Target： Alpha
MCU: 170MHz STM32G473
GYRO: IIM-42652
OSD: Yes
Uarts: 4 Set
Motor Signal:4 Set
ESC Soft: Dshot300/600/1200/2400
Power Led: Yes
LED Controller: Yes
AIR UNIT Port: Yes
Buzz: Yes
Input: 4~6S Lipo (14.8~25.2V)
BEC Protection: Yes
Receiver Protection: Yes
TVS Protection: Yes
BEC: 10V 2A& 5V 2A
Mounting size: 25.5×25.5mm/M2
Overall dimensions: 35×34.5×6.5mm

ESC Specifications

Input: 4~6S Lipo (14.8~25.2V)
Continue Current: 40A×4
Burst current: 45A (10S)
Target：BLHeli_32 MAMBA F40_128K
SOFT: Dshot300/600/1200/2400
PWM:24~128K

Supply :
High Frequency 470uF/35V ×1
AIR UNIT sh1.0 ×1
16AWG 60mm ×2
AMASS Original XT60
