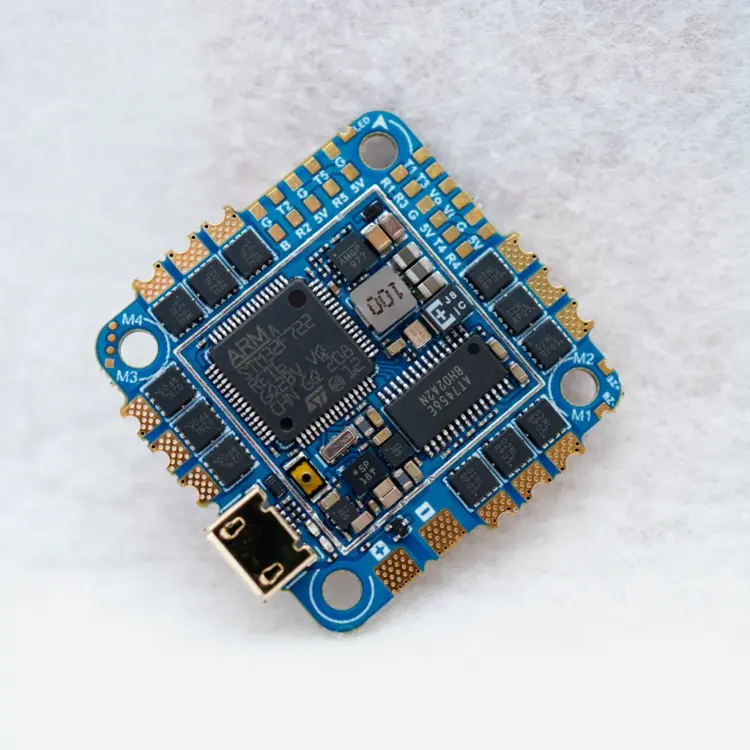

Specifications:
2. IMU: BMI270 (SPI1) CW=90
3. OSD:AT7456E (SPI2)
4. Blackbox: SPI Flash 16M
5. Baro:Infineon DPS310(I2C1),same to UART3
6. 5xUarts(1,2,3,4,5)&1x I2C
7. BEC:5V 2.0A(Max 2.5A)
8 Support Betaflight(NeutronRCF722AIO)
9 Current sensor (Scale 100)&Voltage sensor (Scale 110)
10 2x LEDs for FC Status and 3.3V

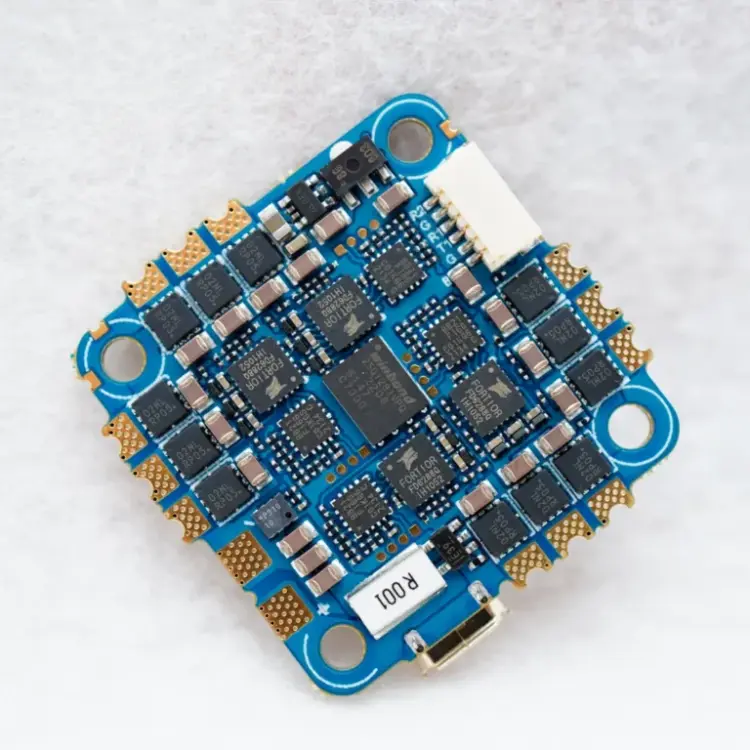

11 ESCMCU:EFM8BB21 48MHz
12 FD6288 3in1 driver
13 SH1.0-6pin,DJI/Vista straight plug
14 ONSemi Industrial MOS, low internal resistance and high current
15 Current 45Ax4 ,Max 60A(5S)
16 ESC Firmware:BLHeli_S/Blujey(Type pwm 48K for BMI270)
17 8-layer 2OZ, 2-order blind via PCB.
· Input Voltage: 2-6S 5-36V
· Mounting: 25.5×25.5mm w/M3 Grommets
· Size: 34x34x7mm
· Weight:8g
更多飞行视频: https://youtu.be/IOGA35uiUiU
INAV  Firmware  and  HEX  down
https://drive.google.com/drive/folders/1u9gsk7UzZzxWLTcCCFyVD8DCRvfQlD_-?usp=sharing
