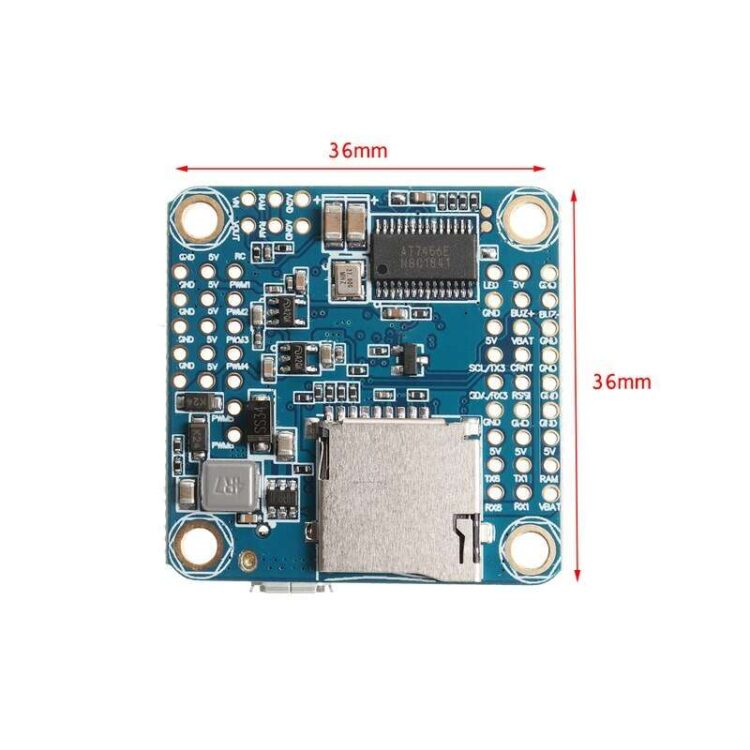

Mount holes: 30.5×30.5mm

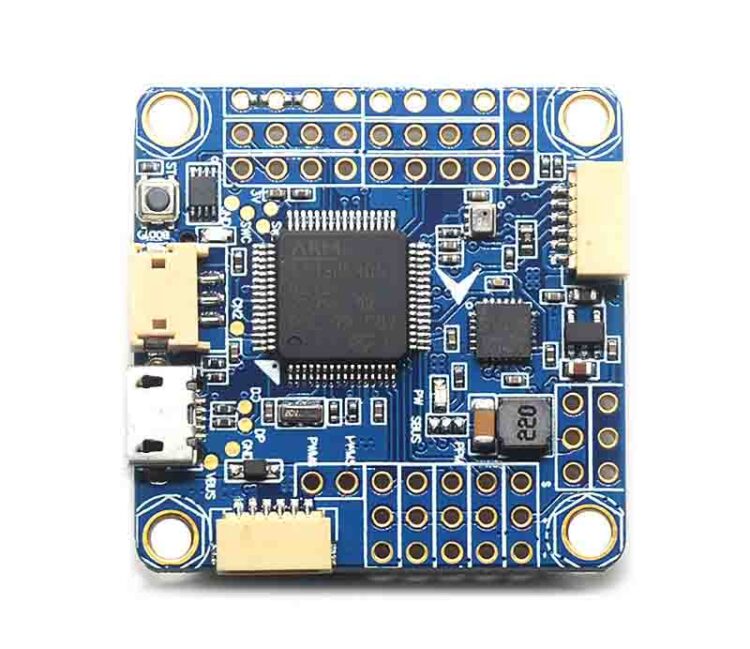

STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time.
Using F4 MCU controls OSD over SPI bus in DMA mode.
OSD Configation has been included in Betaflight GUI.
SBUS/PPM input (Pinheaders)
6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders)
SPI Sensor MPU6000
Included 128Mbit Flash, please always use BEC for the FC.
Supported by BETAFLIGHT and dRonin
