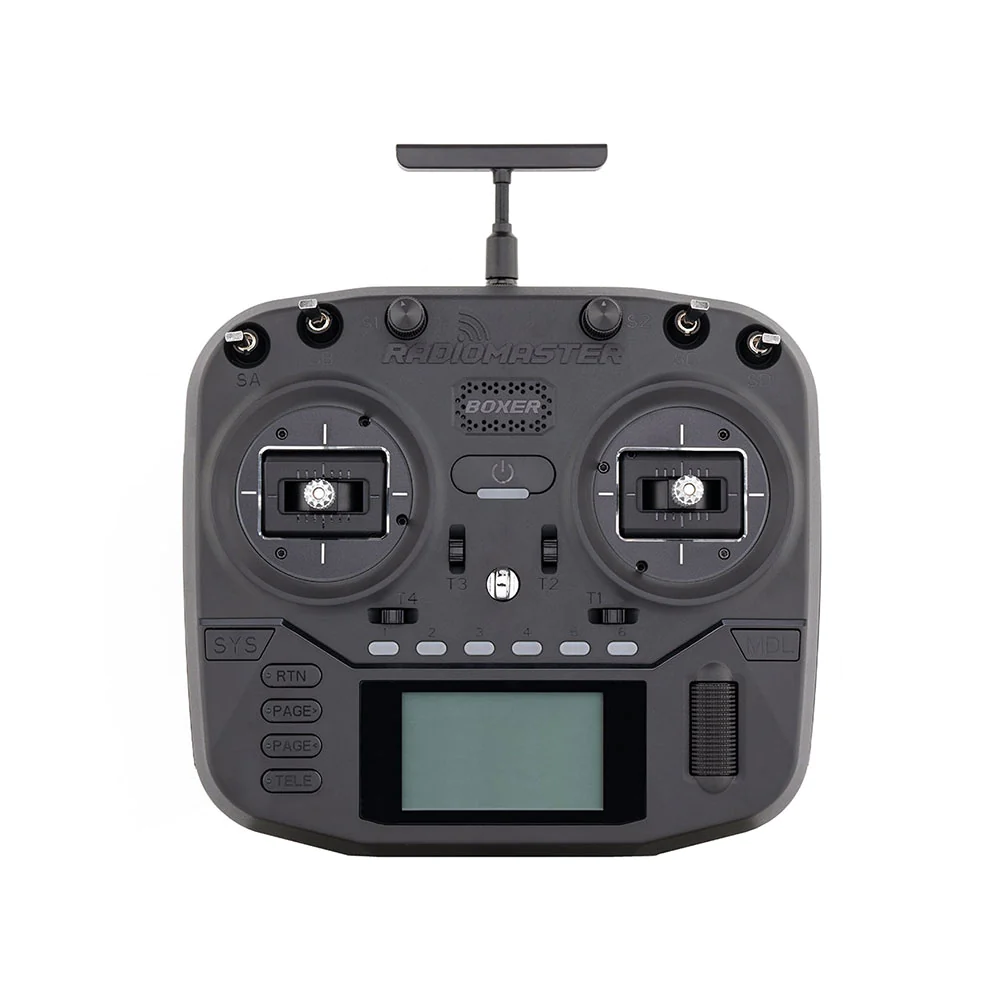

The RadioMaster Boxer Radio Transmitter is compact, ergonomic, and powerful. This radio features an STM32VGT6 processor, QC3.0 charging, and new low-profile latching SE switch and momentary SF switch. Featuring full size hall gimbals for precision control and an intuitive button layout, the BOXER gives you a compact radio without compromising on comfort and function.

Note: This radio is ExpressLRS 2.4GHz Version.

Note: Battery is not included.

VIDEO: BOXER Radio Controller | The perfect combination of size and ergonomics

• Industry first fabric handle for improved portability
• Standard JR module compartment Internal module
• External Module Power Slots in Battery Cover
• Signature RadioMaster Carrying Case
• Supports External 2S Power Supply
• Gimbal Protector for Safe Storage
• 4-in-1, CC2500, or ELRS Options
• Oversized Battery Compartment
• Supports USB-C direct charging
• Pre-installed EDGETX Firmware
• V4.0 Full-Size Hall Gimbals
• Supports 2.0A MAX
• Ergonomic Design

• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Battery: Supports 2S 6200mAh for up to 20 hours (Batteries are not included)
• Standardized button layout: Versatile 6-position switch for flight mode access
• Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) / ELRS
• Transmitting Power: 30dBm max FCC (ELRS); 20dBM (4-in1/CC2500)
• Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)
• Refresh Rate: Internal ELRS module capable of 1,000Hz (ELRS only)
• Upgrade Method: USB/SD card & EdgeTX Companion PC software
• Protocols Options: 4-in-1, CC2500, or ELRS 2.4GHz
• Channels: Max 16 channels (Receiver dependent)
• Processor: STM32VGT6 processor with 1MB RAM
• SD card: Slot with pre-loaded SD card included
• External module: JR/FrSKY/Crossfire compatible
• Module Power Slots: External in Battery Cover
• Antenna: Adjustable/Removable T-Antenna
• Display: 128*64 Monochrome LCD display
• Supported protocols: Module dependent
• Cooling Fan: Built-in (ELRS Only)
• Frequency: 2.400GHz-2.480GHz
• Voltage Range: 6.6-8.4V DC
• Model: Radiomaster Boxer
• Fast Charging: QC3.0
• Size: 235*178*77mm
• Weight: 532.5g

• AGO1 CNC Colored Gimbals: RadioMaster CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle – Multi Color
• AGO1 CNC Black Gimbals: RadioMaster CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle
• Transmitter Battery: Radiomaster 2S LiPo Transmitter Battery for Boxer – 6200mAh

• RadioMaster Boxer Manual

• 1x RadioMaster Boxer Radio Transmitter (Choose 4-in-1 Multi-Protocol, CC2500, OR ELRS 2.4GHz)
• 1x 3D Printed Gimbal Protector
• 1x Radiomaster Carrying Case
• 4x Low Tension Springs
• 1x 18650 Battery Tray
• 1x 1.5mm Allen Key
• 2x M4*4 Screws
• 1x USB-C Cable
• 1x T-Antenna
• 1x Stickers
• 1x Manual

VIDEO: Radiomaster Boxer ELRS Radio – My Dream Controller Is Here
