RUSH BLADE  F722 v2 Analog version

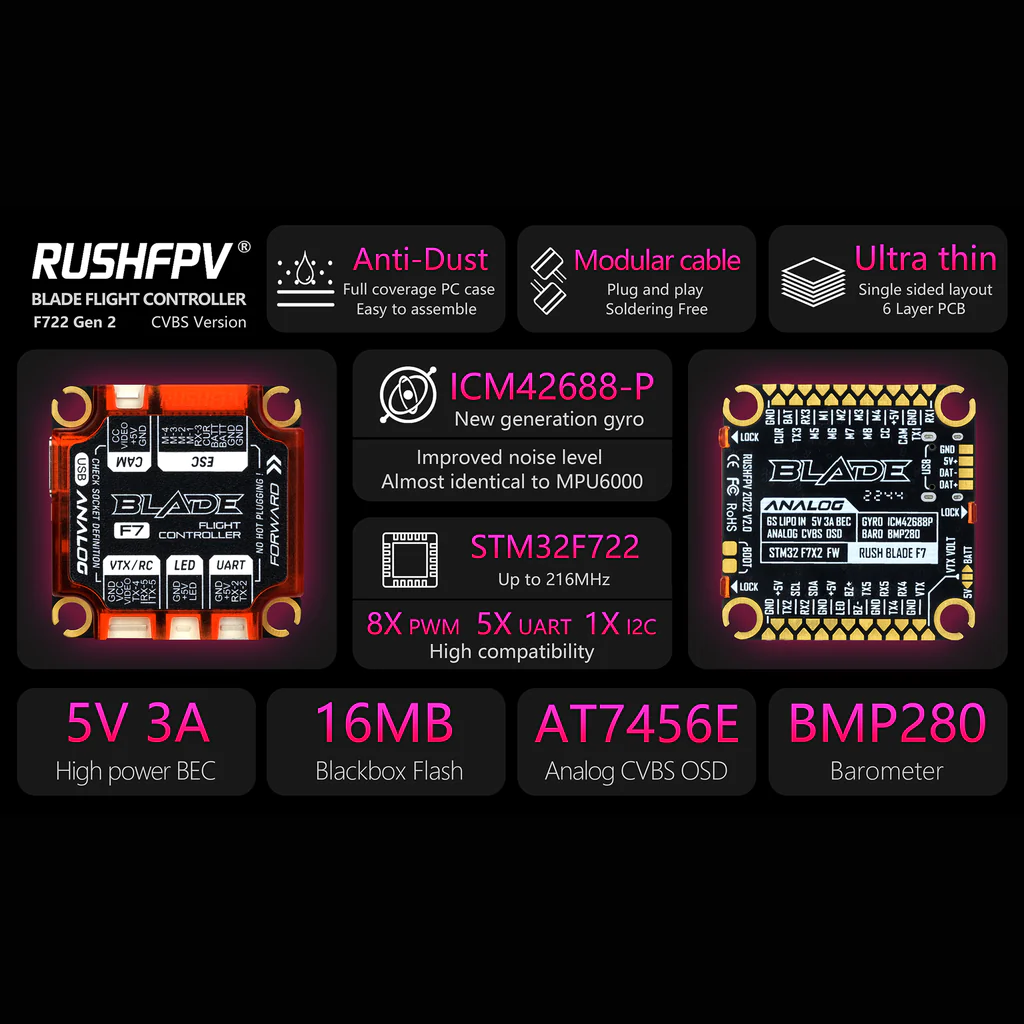

Features

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port, 1

camera control port.

• High power synchronous rectifier BEC, supports up to 36V input and provides stable 5V 3A output.
• Modular cable design, with reliable locking structure, can be installed quickly, while retaining

full-featured pads on the back, providing more expansion support.

• Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
• PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings.

Specification of RUSH BLADE F722 V2 Analog

MCU STM32F722RET6

GYRO ICM42688P

OSD AT7456E CVBS OSD

BLACKBOX 16MB FLASH

BEC INPUT 7-36V / 3 – 6S LIPO

OUTPUT 5V 3A

PORT 8×PWM 5×UART 1×I2C

ADC V-BATT / CURR-ESC

LED

BARO

WS2812 LED STRIP

BMP280

SIZE 36.5mm*37mm*5.2mm

MOUNTING HOLES 30.5*30.5mm

TARGET RUSH_BLADE_F7 WEIGHT 11g(without cable

Includes

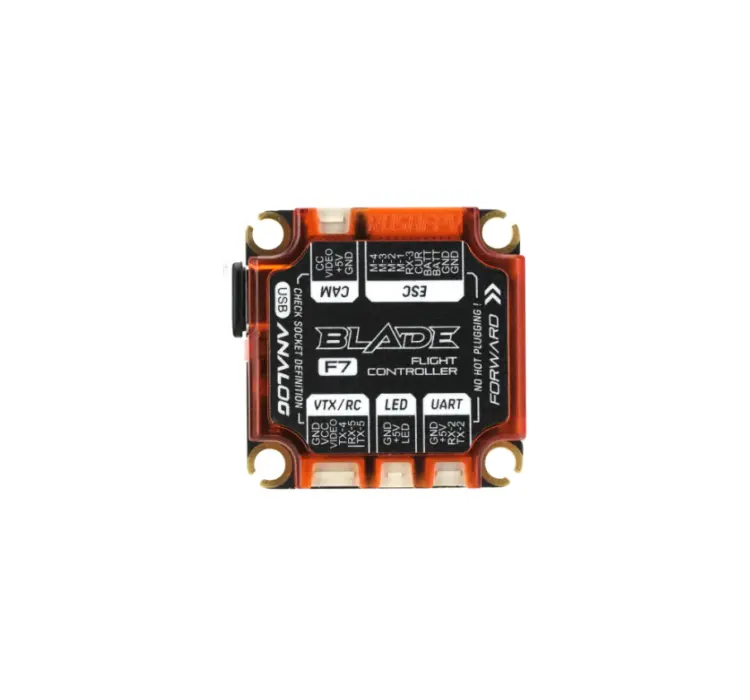

1 x RUSH BLADE F722 V2 30×30 Flight Controller For ANALOG

1 x 60MM UART Cable

1 x 60MM ESC Cable

1 x 60MM LED Cable

1 x Camera Cable

1 x VTX Cable

5 x 8MM Grommet

5 x 5MM Grommet
