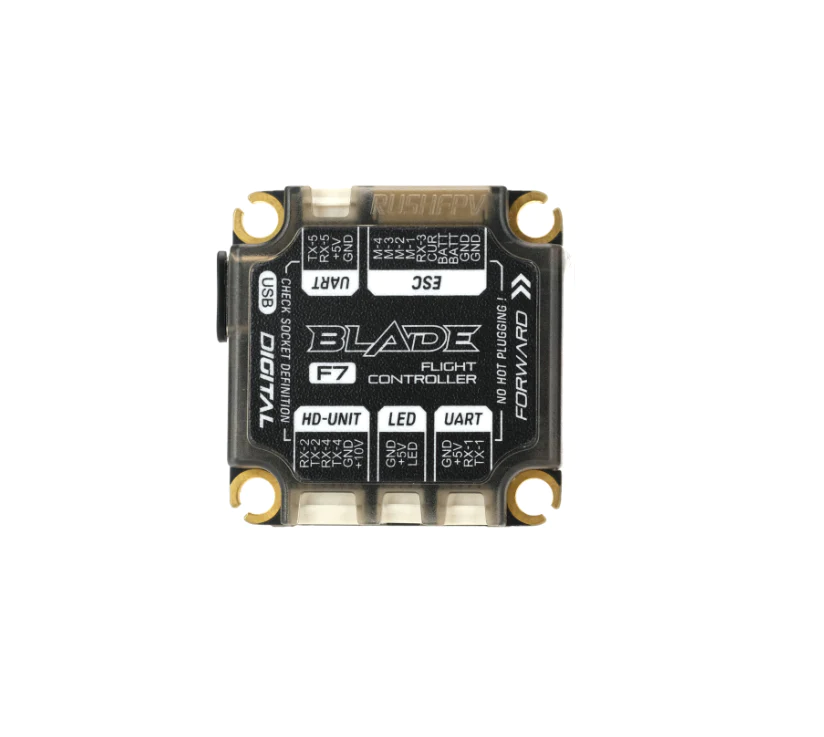

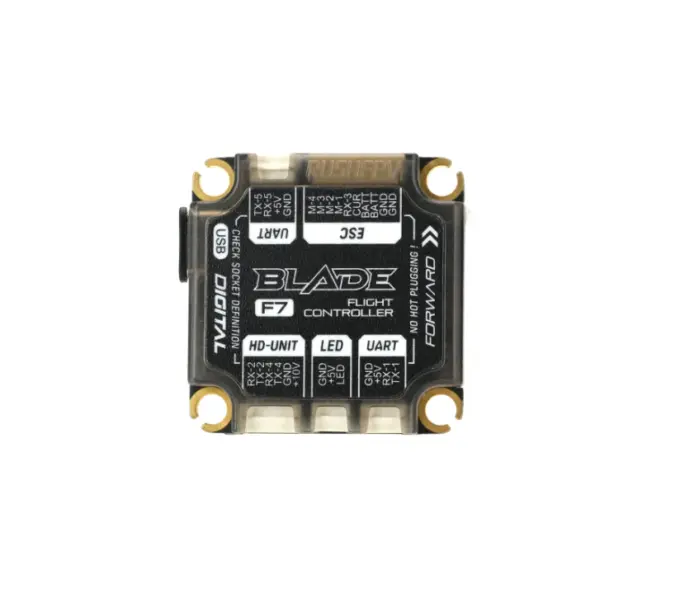

RushFPV RUSH BLADE F722 V2 Flight Controller Digital

Features

• High-performance STM32 F722 MCU with speeds up to 216MHz.
• ICM42688P gyroscope, independent low-noise power supply.
• Built-in analog video OSD, 16M black box,5UART ports, 8PWM output ports, 2ADC ports, 1 I2C port.
• Dual high power synchronous rectifier BEC, supports up to 36V input and provides stable 5V/10V 3A

output.

• Modular cable design, with reliable locking structure, can be installed quickly, while retaining

full-featured pads on the back, providing more expansion support.

• Single-side layout, lower mounting height, 6-layer PCB, isolated ESC interference.
• PC case is impact resistant and easy to disassemble, isolated from dust and grass clippings

Specification of RUSH BLADE F722 V2 Digital

MCU： STM32F722RET6

GYRO： ICM42688P

BLACKBOX ：16MB FLASH

BEC

INPUT 7-36V / 3-6S LIPO

OUTPUT 1 5V 3A

OUTPUT 2 10V 3A

PORT 8×PWM 5×UART 1×I2C

ADC V-BATT / CURR-ESC

LED WS2812 LED STRIP

SIZE 36.5mm*37mm*5.2mm

BARO

MOUNTING HOLES

BMP280

30.5*30.5mm

TARGET RUSH_BLADE_F7_HD WEIGHT 11g(without cable

Includes

1 x RUSH BLADE F722 V2 30×30 Flight Controller For DJI HD

2 x 60MM UART Cable

1 x 60MM ESC Cable

1 x 60MM LED Cable

1 x 90MM HDCable

1 x 110MM Air Unit Cable

5 x 8MM Grommet

5 x 5MM Grommet
