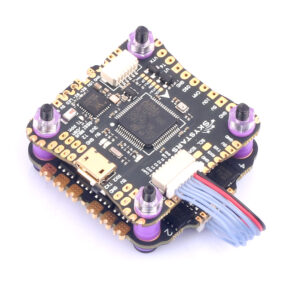

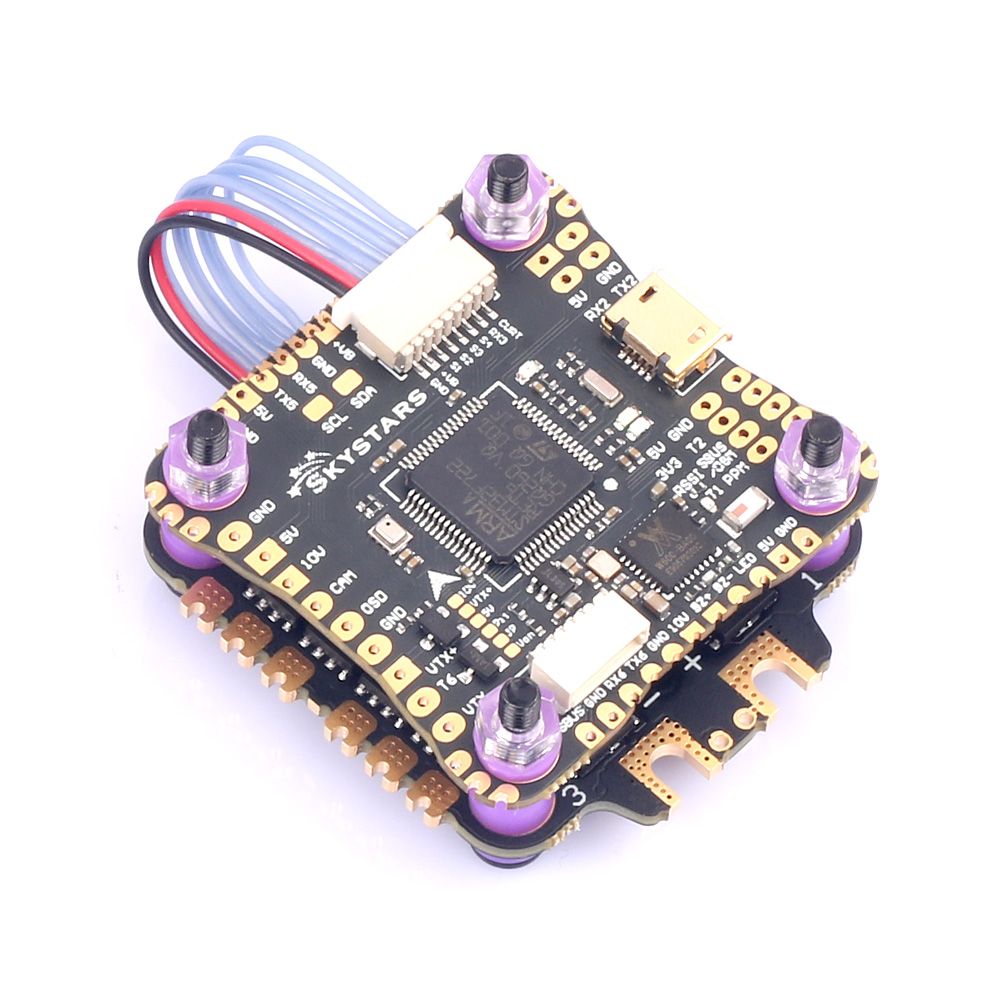

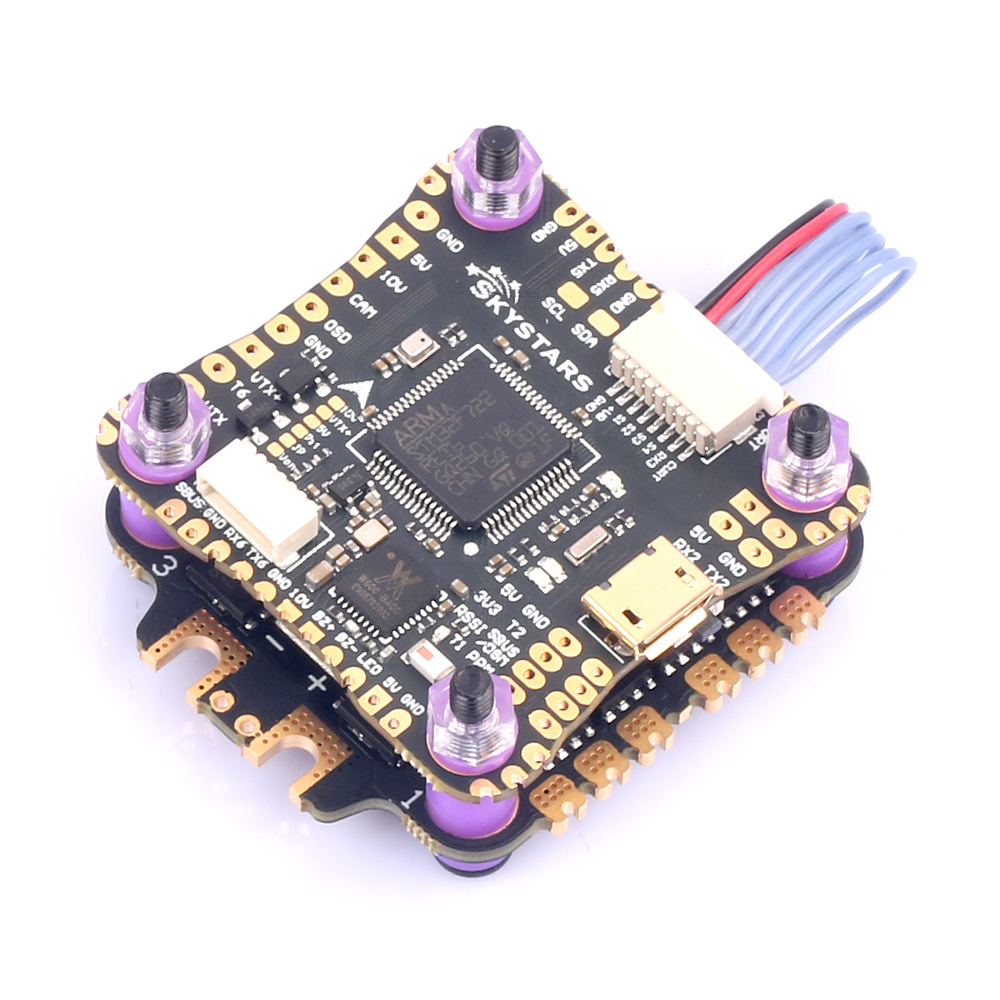

SkyStars F7 HD Wi-Fi + KO45 3-6S BLHeli_32 4-In-1 ESC 30x30 Stack

SkyStars F7 HD Wi-Fi + KO45 3-6S BLHeli_32 4-In-1 ESC 30x30 Stack

The SkyStars F7 HD Wifi + KO45 Blheli_32 Stack features the SkyStars F7 HD flight controller, as well as the KO45 45A 4-in-1 ESC to give your multirotor full power! Great performing, and amazingly useful WiFi features makes this a great choice.  No longer do you need to drag your laptop to the field.

Out of stock

6,999

Orders placed before are shipped on same day

Out of stock

Specifications

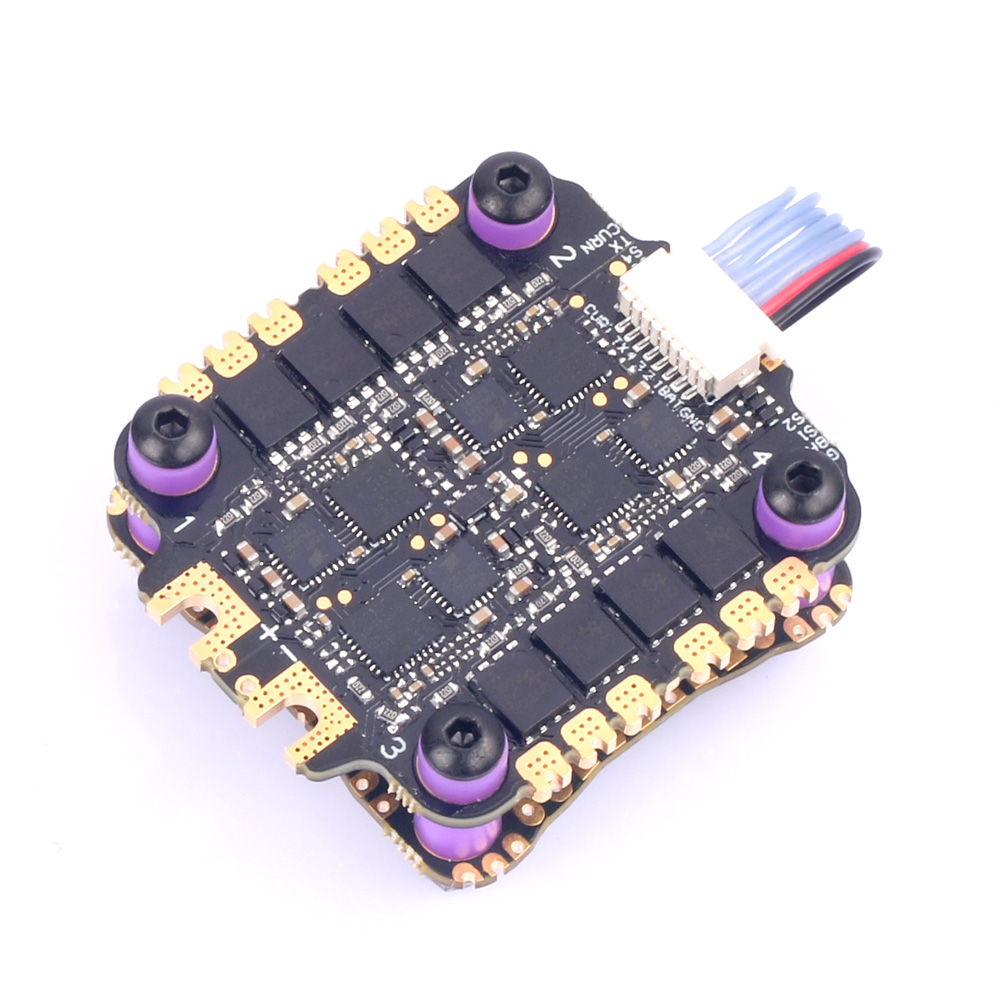

SkyStars KO45 45A BLHELI_32 4-in-1 30X30 ESC

Features

Excellent over-current capability

By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with a 6-layer layout design of the board, compared with others that commonly use 4 layers, allowing it to withstand higher current.

Extreme stability and support of 6S LiPo battery

By use of 24 pcs of new Toshiba standard 40V 5×6 Mosfet & electronics imported from USA and Japan.  Plus advanced lead-free SMT Processing technology. It makes ESC fully support the 6s battery and get better performance.

Better Control Performance

Flashed with the latest BLHeli_32 firmware in factory, support telemetry functions (including voltage, RPMS, & current )

Specifications

  • Mount: 30.5mm x 30.5mm
  • Supports 3-6S
  • ESC weight: 12g
  • ESC onboard current sensor.
  • Continuous current: 45A
  • Peak current [5 seconds]: 55A
  • Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
  • MCU: STM32F051 Operation frequency: 48MHz
  • Firmware: BLHeli_32
  • BEC: No

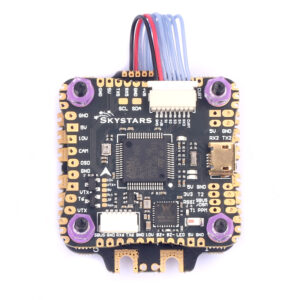

SkyStars F7 HD Wi-Fi F722 Flight Controller

Specifications:

  • MCU: STM32F722RGT6 216MHz 32BIT
  • IMU: MPU6000 (SPI)
  • Barometer: Yes
  • OSD: Betaflight OSD & DJI HD OSD (UART6)
  • 6 hardware UARTS (UART1,2,3,4,5,6,)
  • Blackbox: 8MB
  • LED indicator: Blue for FC Status,Green 9V,Red 5V
  • WIFI: SpeedyBee APP target name SKYSTARS F7
  • Input voltage: 3-6S LiPo(11.1V~25V)
  • LED Controller: 4 corner LED interface to support BF led
  • RSSI Pad: YES
  • Buzzer Pad: YES
  • CURR Pad: YES
  • Smartaudio: YES
  • BEC 5V 2.5A & 10V 2.5A(Max 3A)
  • Firmware: SKYSTARS F7HDPRO
  • Dimensions: 38.5x40x6.2mm
  • Mounting Holes: Standard 30.5mm square to center of holes
  • Weight: 6.6g

Weight 200 g
