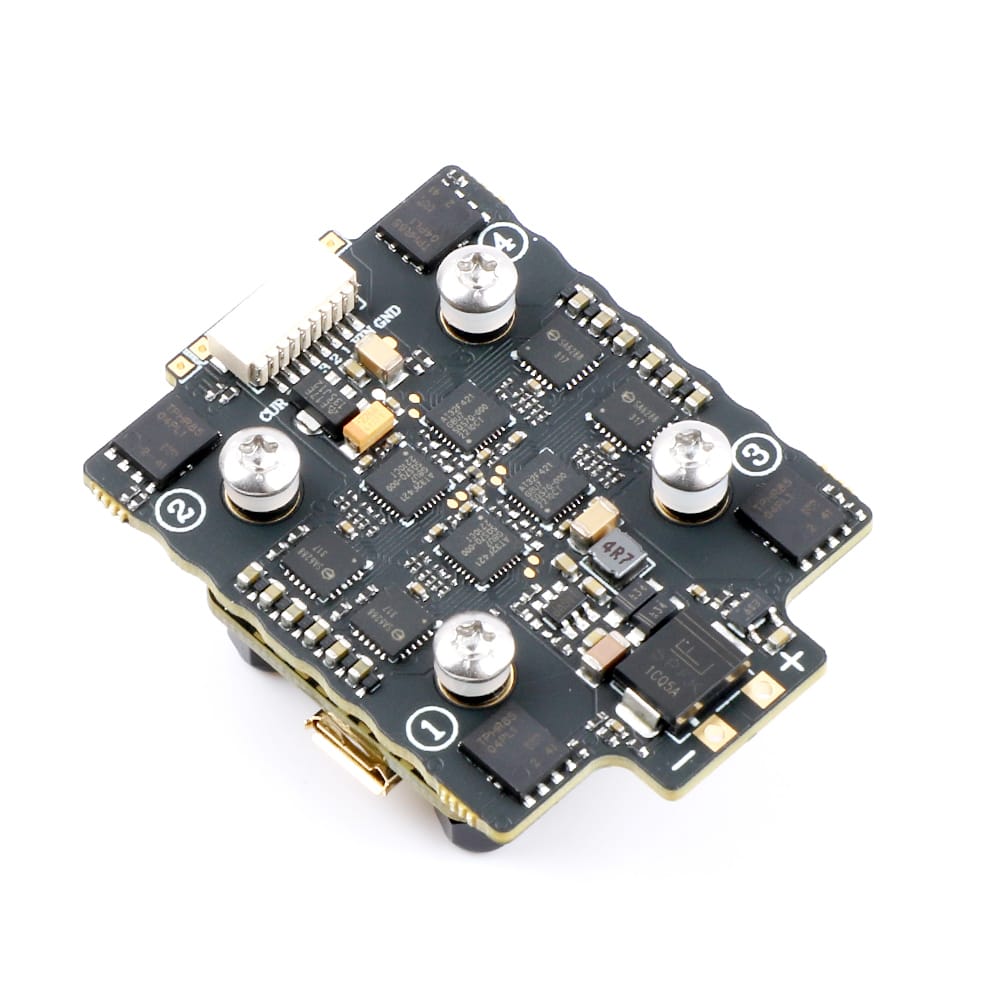

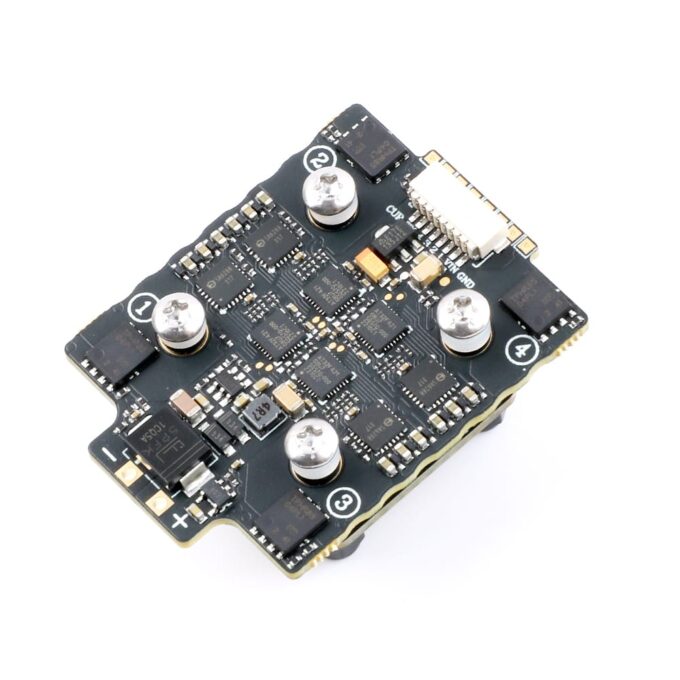

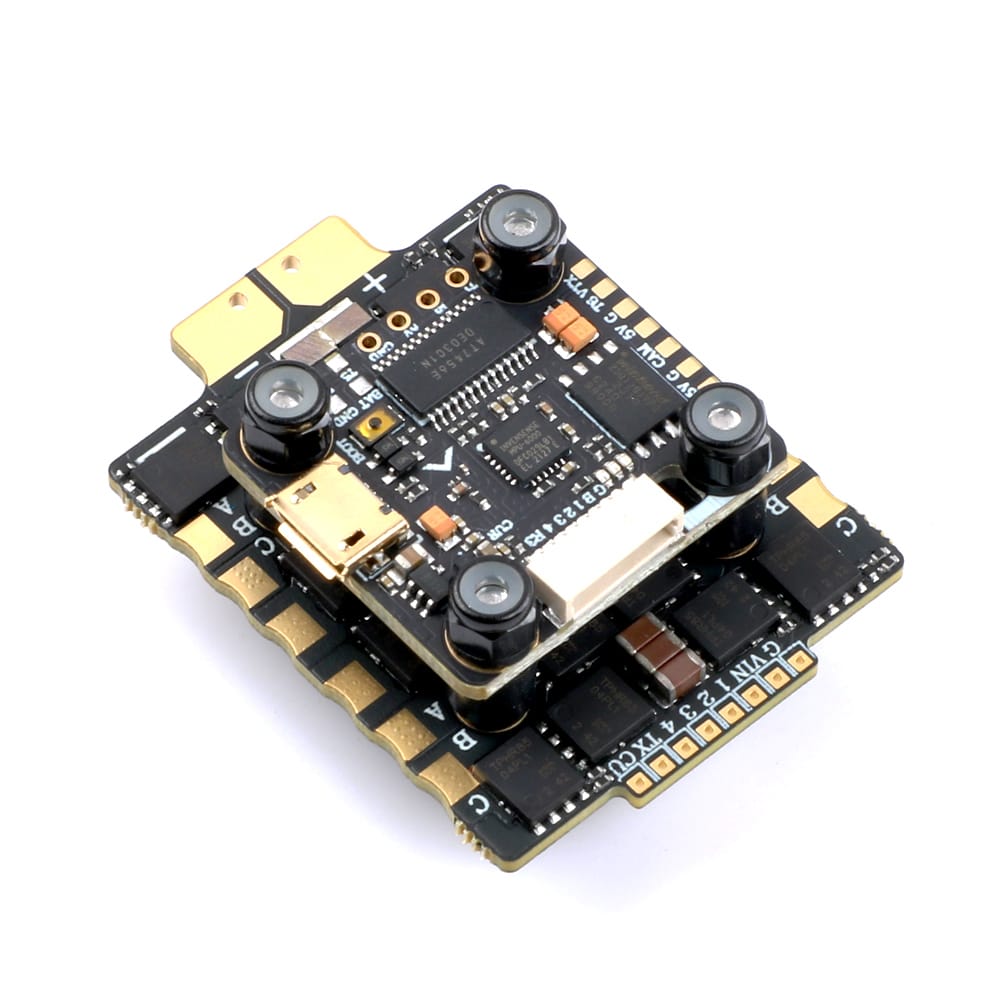

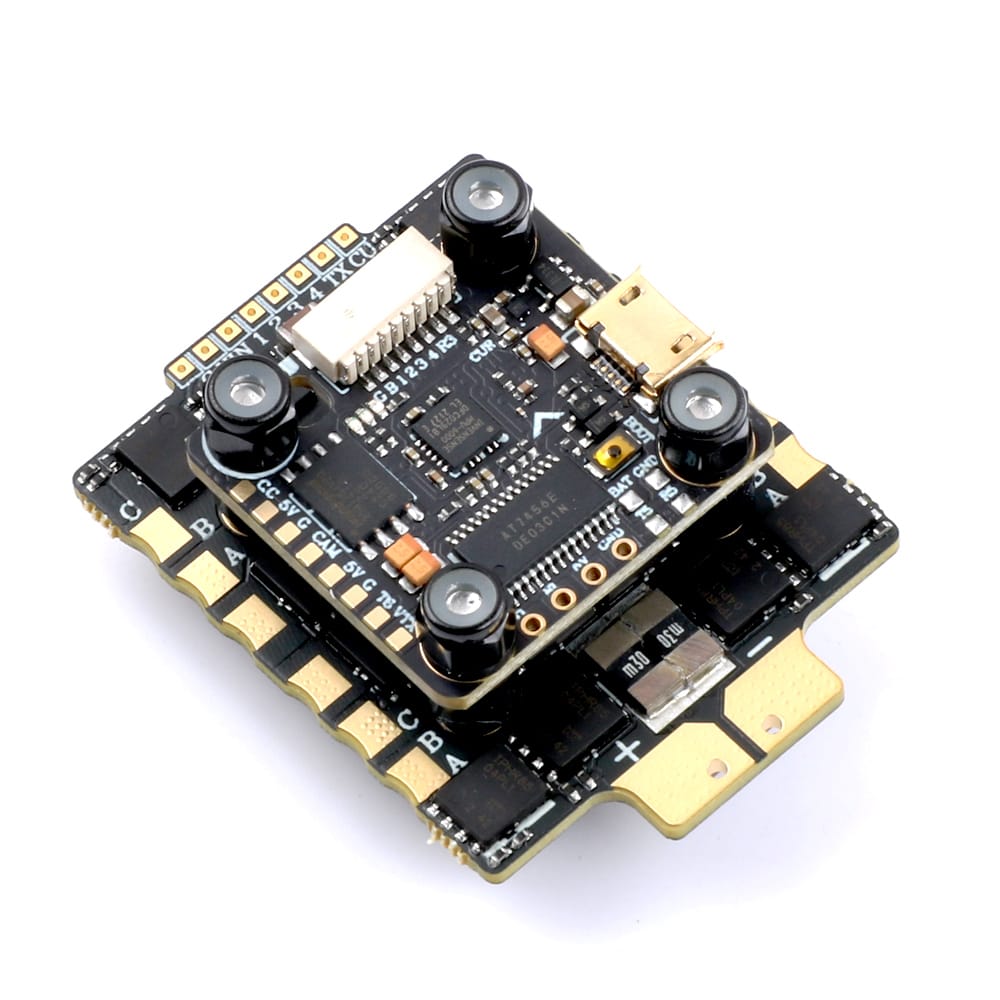

Skystars F7RS + MVP60 is a powerful stack designed for racing and freestyle 5″ drones. At the heart of the flight controller is the F722 processor with MPU6000 gyro. The flight controller also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The ESCs support power from 3-6S Lipo batteries and can handle current up to 60A (80A peak). Featuring a 32-bit processor, the ESCs use BlHeli_32 firmware that supports telemetry, bidirectional DShot and PWM frequency up to 128KHz. The stack has a 20x20mm mounting hole spacing with an M3 hole.
Key Features of Skystars F7 RS
- MCU: STM32F722RGT6 216MHz
- Gyro: MPU6000 (SPI)
- Power input: 3-6S Lipo
- Number of UARTs: 6
- Barometer: No
- BEC: 5V,3A
- Blackbox: 16MB
- FC size: 26x28x7mm
- Weight of FC: 4.9g
- Size of ESC: 35.8x47x6.5mm
- Weight of ESC: 17g
- Current: 60A (80A peak)
- ESC FW: BlHeli_32
- Mounting holes: 20x20mm M3
Package Includes
- 1x FC
- 1x ESC
- 1x Screw Set
- 1x Capacitor
- 1x XT60 with cable
