The SkyStars KRAMAM Mini 55A 3-6S BLHeli_32 4-in-1 ESC brings tons of great features all in a 20x20mm mounting pattern. Supports Dshot 600/1200, telemetry functions (including voltage, RPMS & current ), and includes the latest Blheli_32 firmware.

Features

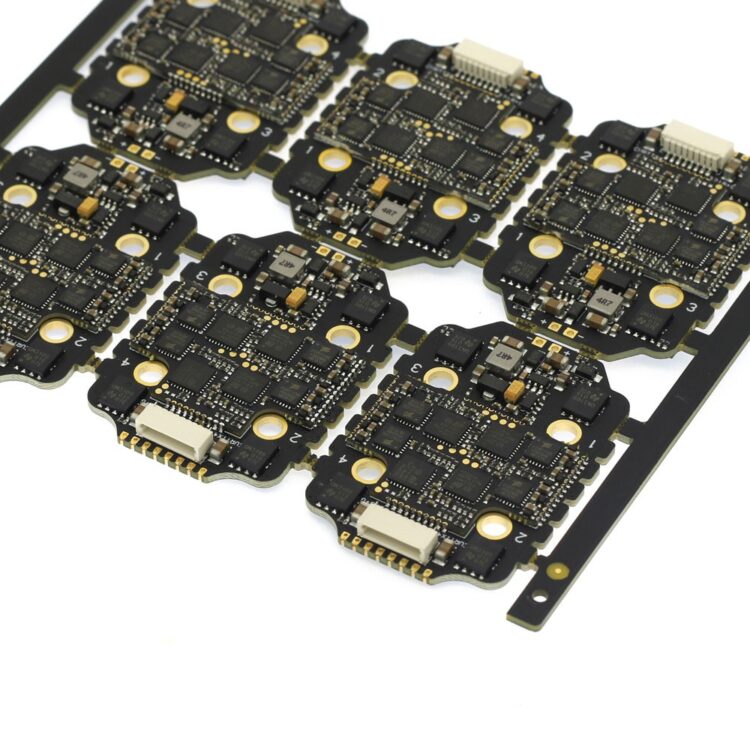

The world’s first 55A ESC, use standard big 5x6mm MOSFET on 20×20 mounting holes, Make a small size ESC can also stable withstand big current now.

Excellent over-current capability

By adopting the best PCB material and PCB production process. Such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. Together with independent current board layout design, can withstand bigger current.

Extreme stably support 6S LiPo battery

By use of 24 pcs of new ON brand standard 40V 5×6 Mosfet & imported from USA or Japan electronic materials. Plus advanced lead-free SMT Processing technology.It makes ESC can fully support 6s battery and get better performance.

Excellent heat dissipation performance

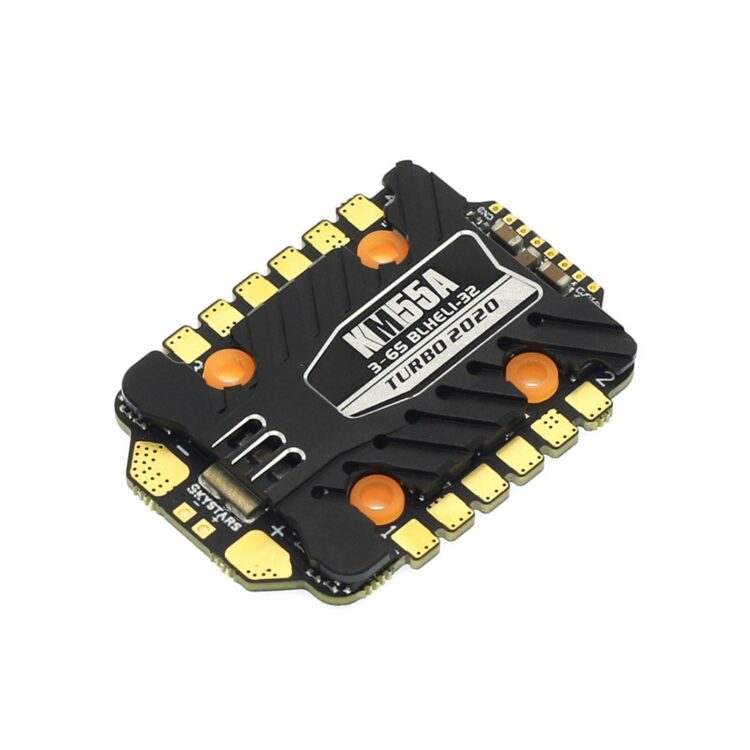

F1 racing car appearance of CNC hollow aluminum alloy shell used, Not only good for heat dissipation but also get a beautiful appearance.

Better control performance

Flashed with the latest Blheli_32 firmware in factory, support telemetry functions (including voltage, RPMS & current )

Specifications

• Input voltage: 3-6S LiPo
• Con.Current: 55A
• Peak Current: 70A≥ 10S
• Firmware: BLHeli_32
• Support: Dshot 600/1200

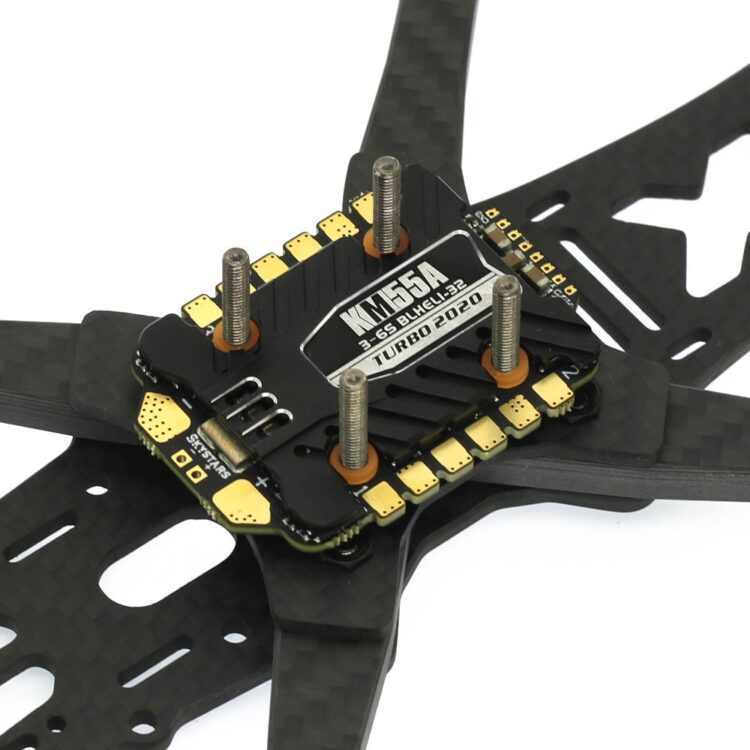

• Mounting hole : 20X20 mm/M3
• BEC: No
• Product size: 35*47*6.5mm
• Weight: 16.5g

Includes

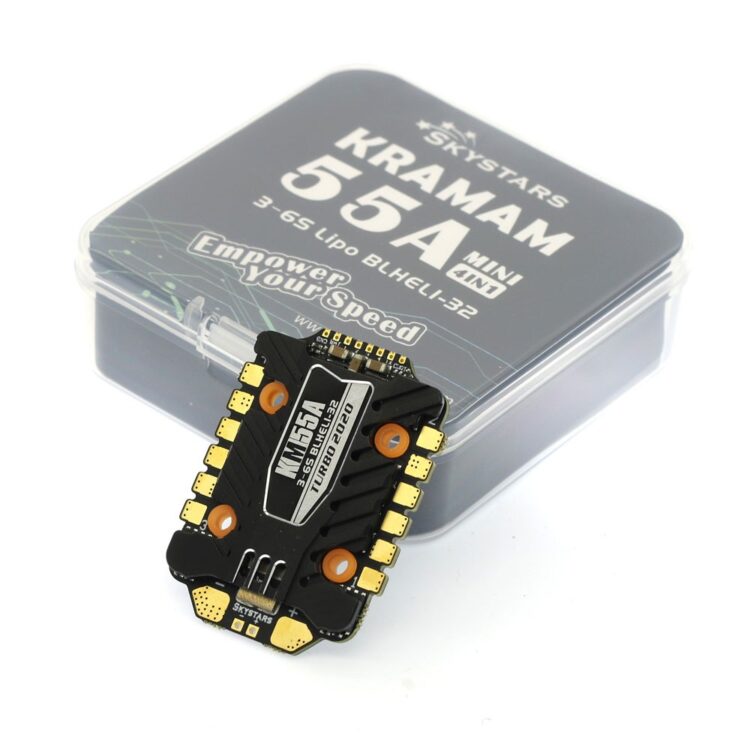

• 1 x Skystars KM55 55A 3-6S 4-in-1 ESC
• 4 x Damping Rubbers (M3x4mm)
• 1 x XT60 connector and wires
• 2 x 8pin wiring harness (1x 70mm,1x 50mm)
• 1 x 35v 560uf Capacitor
