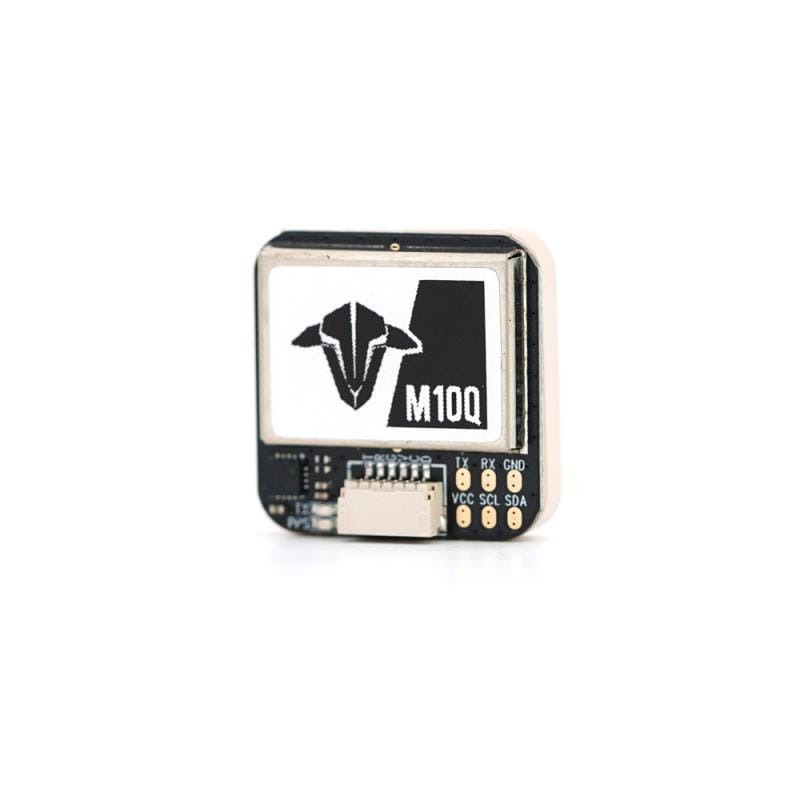

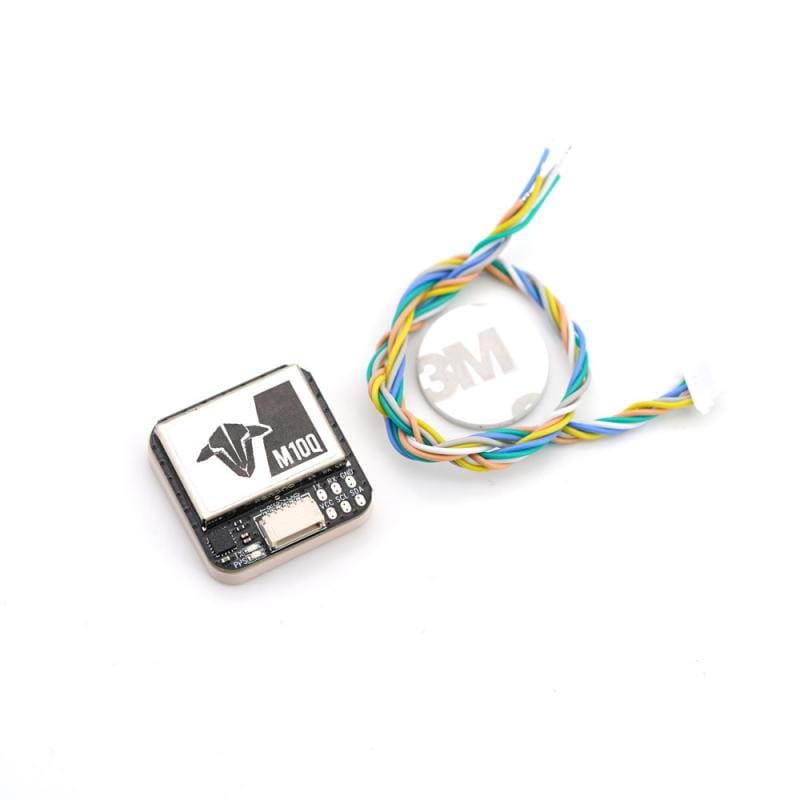

Specifications of TBS M10Q GPS GLONASS
- Chipset – ublox UBX-M10050
- Flash memory for saving configuration.
- Frequency – L1, 1575.42MHz ; L2,1561.10MHZ;L3,1602.00MHZ
- Baud Rate – 4800bps-921600bps, default 115200bps
- Channel – N/a
- Sensitivity – (Tracking: -166dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
- Cold start – Average 26 seconds
- Warm start – Average 24 seconds
- Hot start – Average 1 second
- Accuracy – (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
- Maximum height – 50000m
- Maximum speed – 500 m/s
- Maximum acceleration – ≦ 4G
- Refresh Rate – 0.25Hz-18Hz, default 1Hz
- Size – 25 x 25 x 7.7mm
- Weight – 13.5g
- Input Voltage – 5V
- Magnetometer: QMC5883
