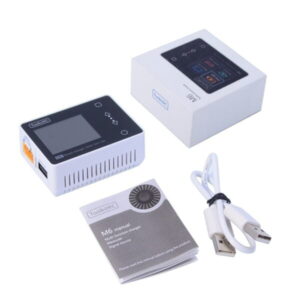

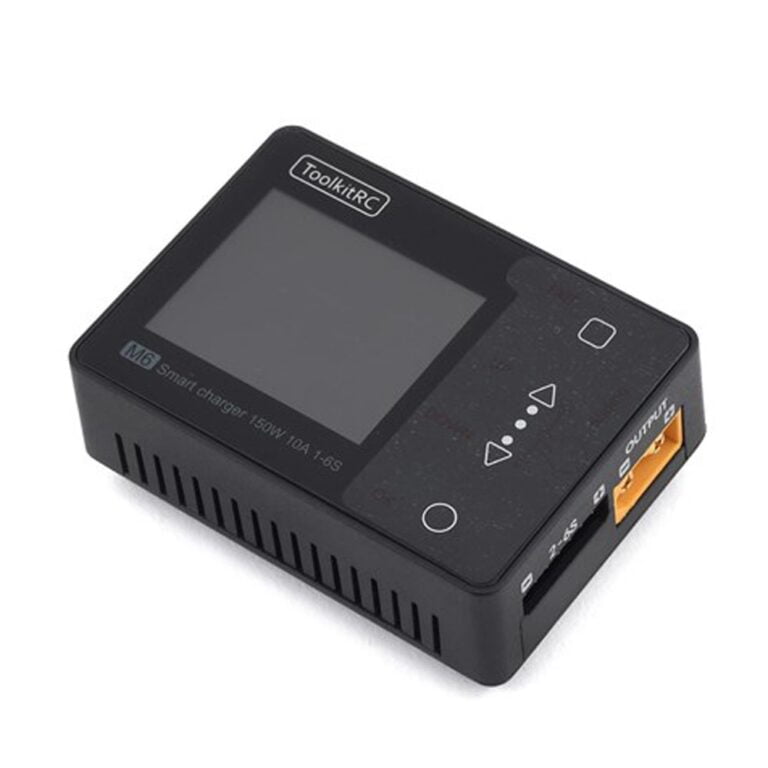

ToolkitRC M6 V2.0 150W 10A Smart Charger, Cell, Servo Checker, Budget Charger

The ToolkitRC M6 is a small 150w color screen charger! At heart, the M6 is a small and compact charger that boasts a wide array of other features including Servo Tester, PWM, PPM, S.Bus Output not found in chargers on the market. Additional functionality includes a servo tester, battery cell checker, wattmeter (power meter), PWM/PPM/S.Bus input testers (for receiver testing), as well as output generators that offer variable voltage and amperage with DC current. It is one of the best Budet Charger in 2020 and you wont regret your purchase.

Check out LiPo Battery Chargers,Lipo Battery, Power Supply Unit and Battery Straps

ToolkitRC M6 Features

• Battery Charger
• Cell Checker
• Servo Tester
• PWM,PPM, S.Bus Input/output & Receiver tester
• Viable AMP/Volt DC Power supply (Requires external DC input)
• Lithium battery cut-off voltage can be set (TVC function)
• Measure battery voltage, internal resistance, balance
• Measure PWM,PPM, S.Bus signal values @ 1ms accuracy
• Output PWM, PPM, S.Bus standard signal @ 1ms accuracy
• The customizable 1-28V constant output voltage, 1-10A constant output current
• Multi-language optional
• USB 2.1A@5.0V Output (Mobile device charging)
• U-disk firmware upgrade (Slave device)

ToolkitRC M6 Specifications:

Input voltage: 7.0-28V
Type of battery: Lipo, LiHV, LiFe, Lion @ 1-6S, NiMh @ 1-16S, Pb @ 1-10S
Charge power: 150W / Up to 10A
Discharge power: Recycle Mode: 150W/ Up to 10A Normal Mode: 8W @ Up to 2A
USB: 2.1A @ 5.0V (Mobile Charging) or USB Firmware updating
Dimensions: 68x49x26mm
Weight: 80g
LCD: 1.8inch TFT RGB, 160×128 Pixel

Measurement:

PWM: 880-2200us @ 20-400Hz
PPM: 880-2200us*8CH @ 20-50Hz
SBUS: 880-2200us*16CH @ 20-100Hz
Voltage: 1.0-5.0V @ 1-6S
IR: 10-99mR @ 1-6S

Output:

PWM: 500-2500us @ 20-1000Hz
PPM: 880-2200us*8CH @ 50Hz
SBUS: 880-2200us*16CH @ 74Hz
Power: 1-10A @ 1-28V Mode:CC+CV

User Manual & Firmware for ToolkitRC M6 Charger

Error Codes

1.over current
2.overvoltage
3.over temperature
4.timeout
5.battery is invalid
6.input low
7.input is too high
8.balance is complete
9.is not connected to the balance port
10.not connected to the main port
11.timeout
12.types do not match
13.cells error
14.battery needs to be balanced
15.This mode is not rechargeable

Now there is an updated version of this charger available which is more powerful and above all a DUO charger, M6D. Click here to Purchase ToolkitRC M6D
