Coming Soon ProductsBLITZ ATF435 Stack (E55S 4-IN-1 ESC)
New

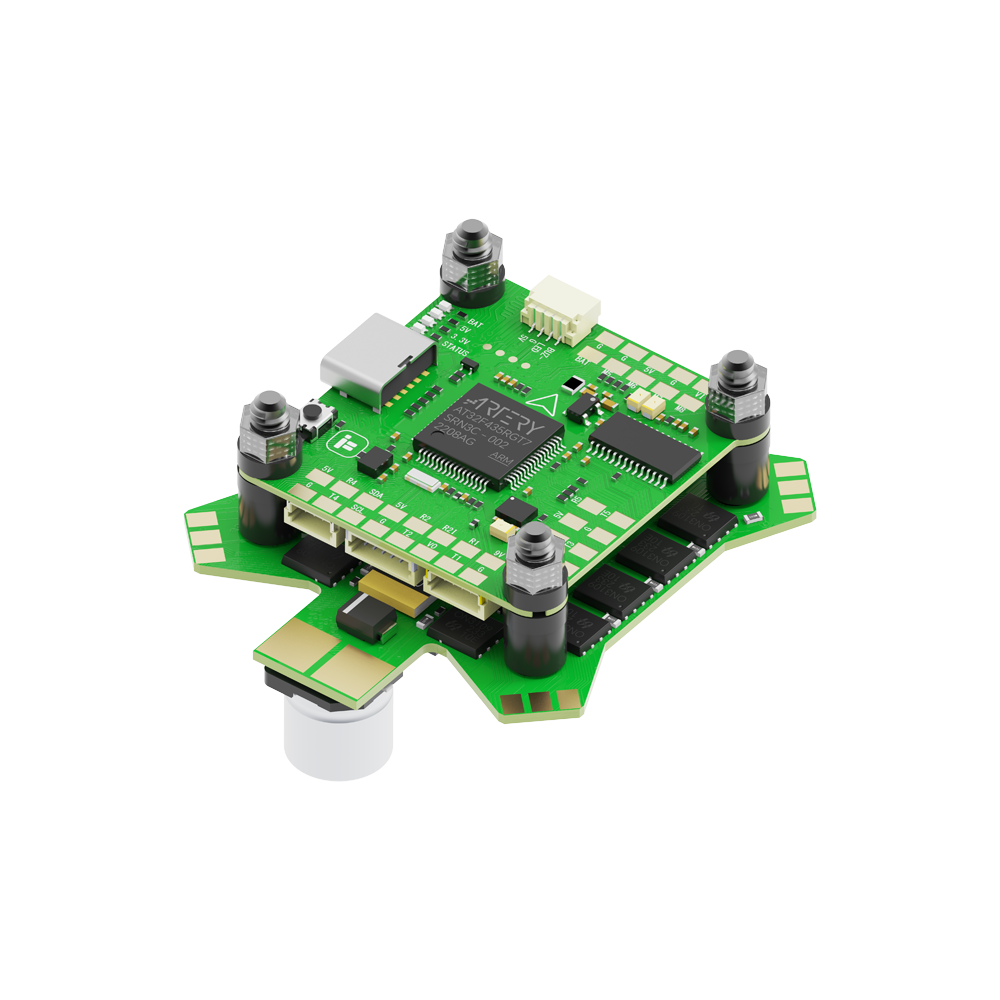

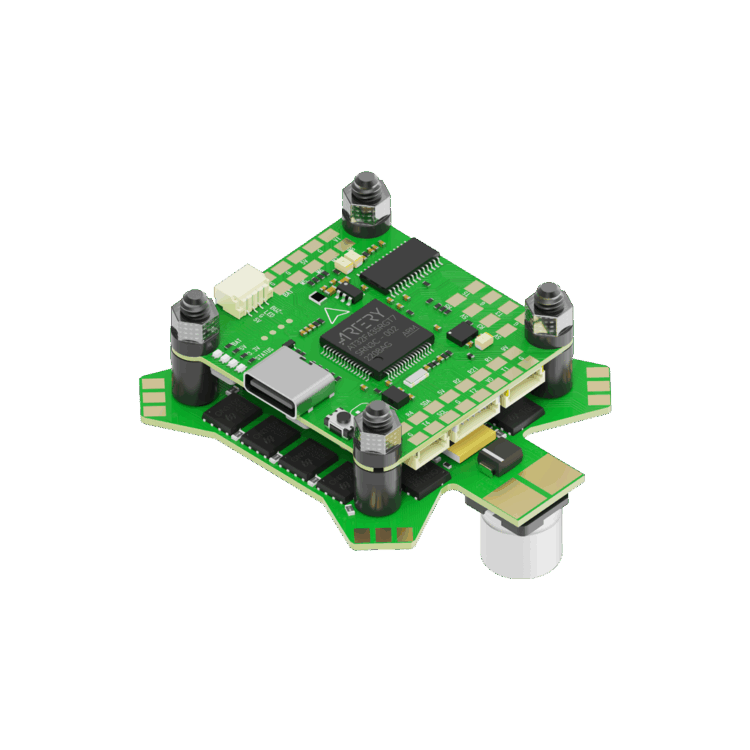

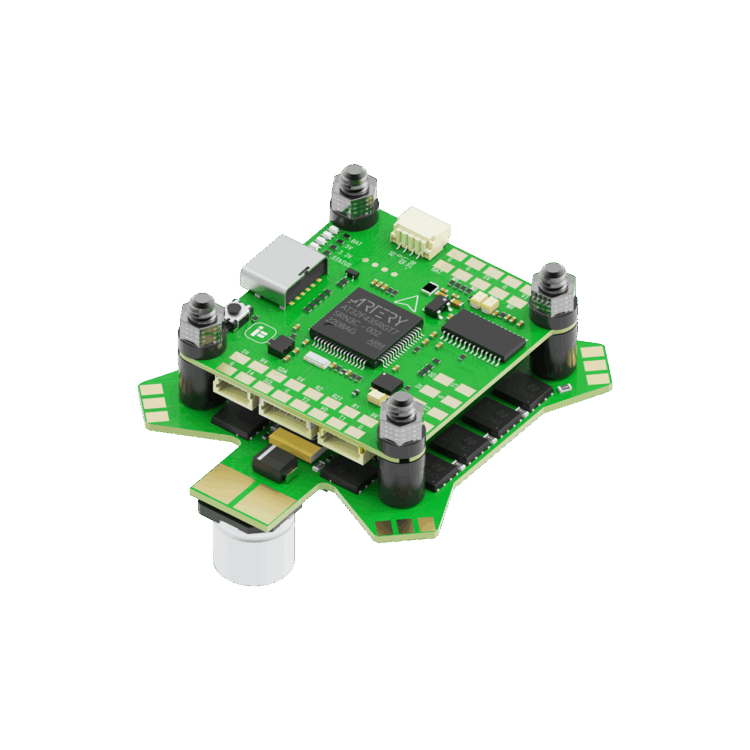

BLITZ ATF435 Stack (E55S 4-IN-1 ESC)
Out of stock
₹6,799
Out of stock
SHARE
Same Day Shipping
Mon-Sat til 2.00PM on Most orders
Provide Warranty
Seller & Manufacturer Warranty
Best Prices
Best Prices in India
Best Customer Support
Industry leading support
FC Specifications
MCU: AT32F435CGU7
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 32MB (Blackbox flash)
UARTS: 6
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: IFLIGHT_BLITZ_ATF435
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 36.5*35 mm
Weight: 7.8g
BEC: 5V 2.5A / 9V 2A
Changelog
November 6, 2023: The flight control Gyro was changed from BMI270 to ICM42688.
ESC Specifications
Mounting Holes: 30.5*30.5mm/Φ4mm
Weight: 14.7g
Supports 2-6S lipo input
MCU: BB21
Constant: 55 Amps
Burst: 65 Amps
Current sensor: Yes
BEC: No
Current rate: 200
Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-25 – Bluejay, 0.16, 24kHz
Packing List
1 x BLITZ ATF435 Flight Controller
1 x BLITZ E55S 4-IN-1 2-6S ESC
1 x wire harness for ATF435 Flight controller
1 x silicon grommets
