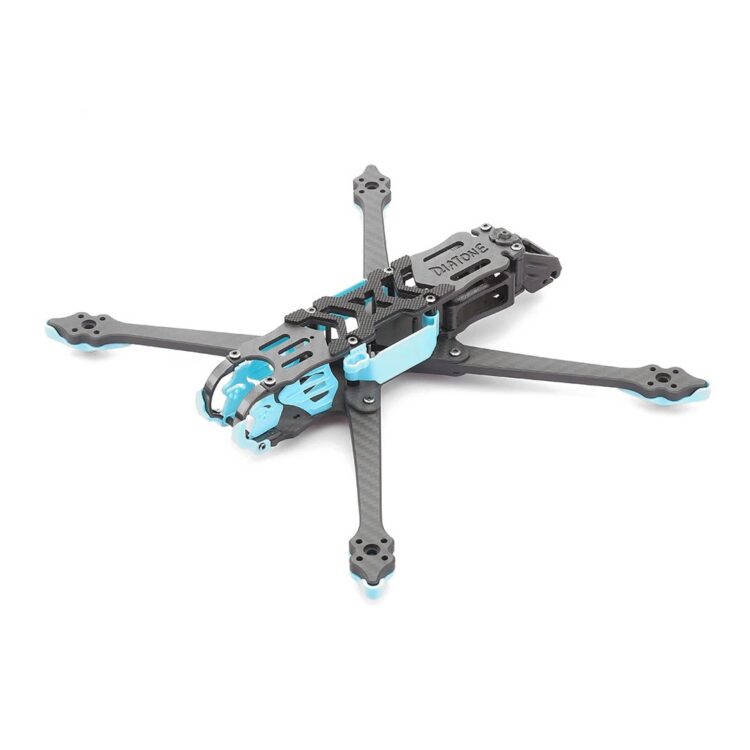

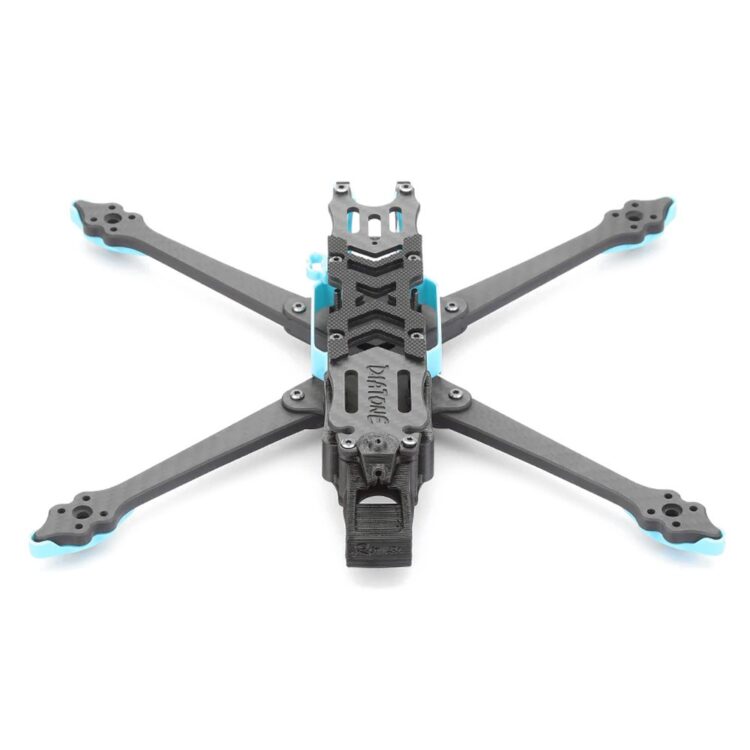

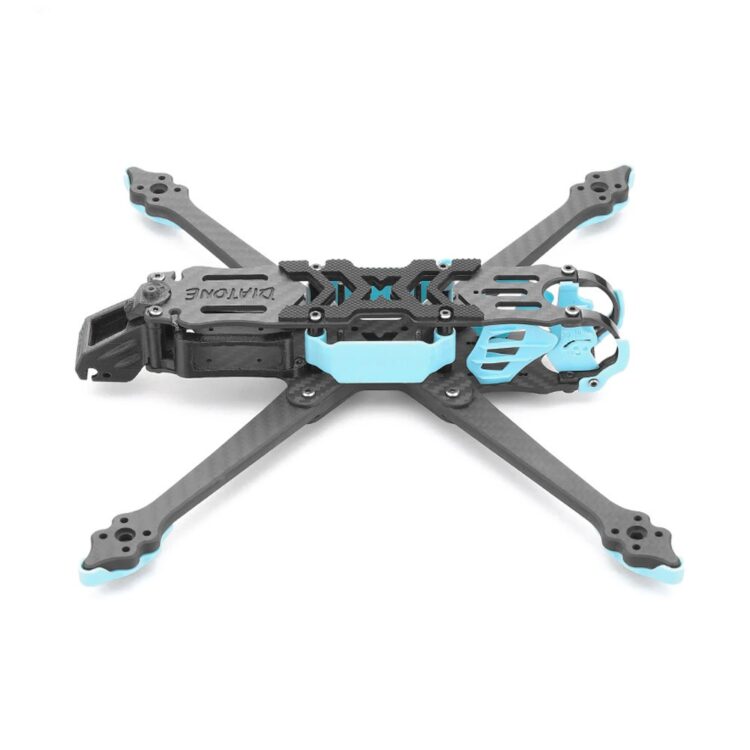

The Diatone Roma F7 Frame Kit is a 7″ Quadcopter frame that is great for HD or Analog flying!
VIDEO: Easier Way to “Build”? | Diatone Roma F7
Features
- Lake Blue Injection Molded Parts
- SUS304 Drone Nose Metal Parts
- T300 TK Carbon Fiber
- 7″ Frame
Specifications
- FC Mounting: 30.5×30.5 (M3) & 20×20mm (M2)
- Motor Mounting: 16mm (M3)
- Drone Nose Metal: SUS304
- Max Stack Height: 23mm
- Carbon Fiber: T3000 TK
- ARM Thickness: 6mm
- Bottom Plate: 3.5mm
- Wheelbase: 290mm
- Medium Plate:2mm
- Top Plate: 2.5mm
- Prop Size: 7 inch
- Weight: 200g
Recommended (Not Included)
- Battery: 4-6S 1600-1800 mAh
- Motor Size: 28XX Series Motor
Includes
- 1x M8PLUS GPS/SMA Analog Antenna Base (3D Printed)
- 1x M22 GPS/DJI Dual Antenna Mount (3D Printed)
- 1x General GoPro Fixed Base
- 1x Head Aluminum Protection
- 1x Diatone Roma F7 Frame
- 1x Arm Protection Set
- 1x Stack Side Plate
- 1x Camera Mount
- 4x 7″ Arms
