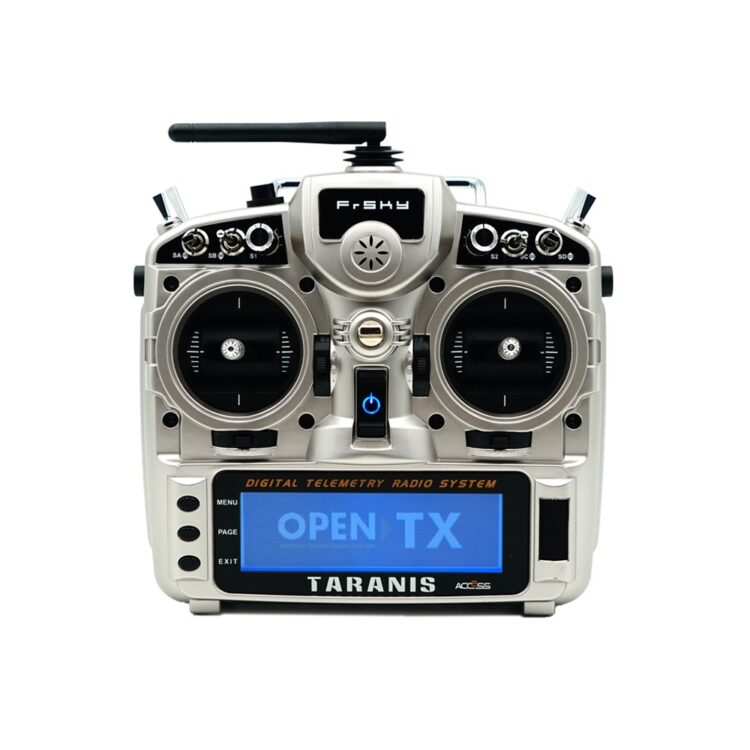

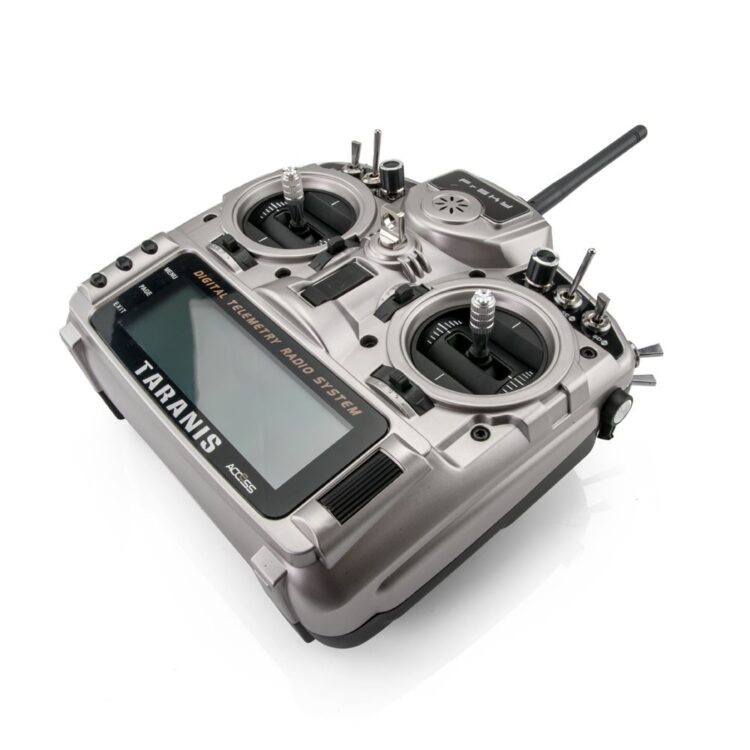

FrSky Taranis X9D Plus 2019 ACCESS 2.4G 24CH Radio Transmitter
FrSky has given the 2019 treatment to much of their catalog. Featuring updates such as incorporating the new ACCESS protocol as well as numerous hardware tweaks in each model.
The FrSky Taranis X9D Plus 2019 is a re-designed version with additions like an additional momentary button placed on the top left shoulder making it ergonomically friendly for DLG pilots to activate launch mode and features a program scroll wheel making it even easier to navigate the menus. The upgraded MCU is used in conjunction with a re-designed mainboard that further increases the computing capability and increases data storage. The upgrades not only improve the running of LUA scripts, but it also optimizes overall performance like voice speech outputs.
The 2019 version uses the latest ACCESS communication protocol, it boasts 24 channels with a faster baud rate and lower latency with a high-speed module digital interface. Along with the new spectrum analysis function added to the OpenTX firmware, it is now possible to check the airwaves for RF noise. This version will give you a further improved experience based on the classic Taranis remote control. Additionally, tons of extra upcoming features that ACCESS brings will make this an ideal transmitter for any skill level.

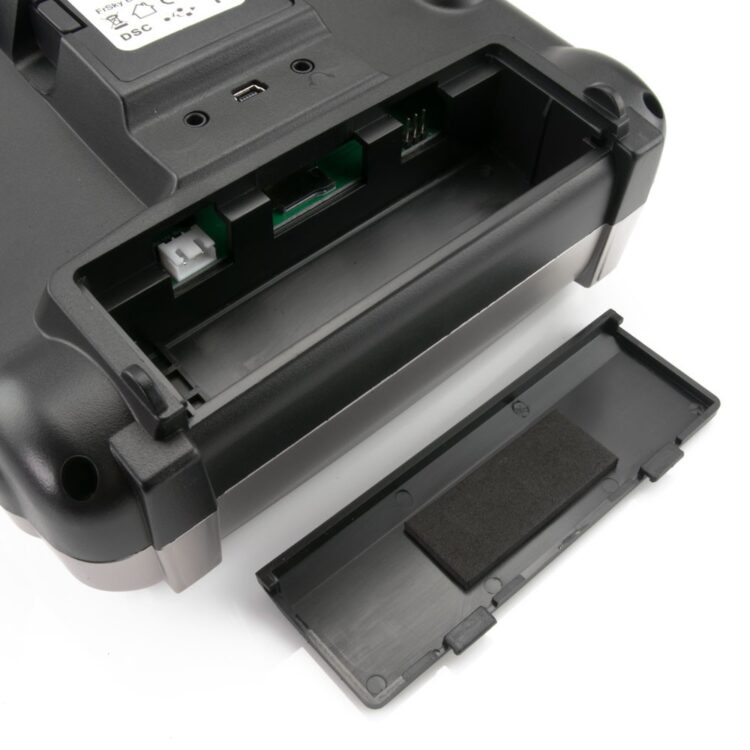

Battery NOT included. Not compatible with 3S batteries. 6.5 – 8.4V (2S) LiPo or Li-ion Only.
Note: Please be aware of the ACCESS protocol’s new features, benefits, and requirements. You can learn all about it on FrSky’s official ACCESS page.
FrSky’s official ACCESS page
Classic Taranis form factor design
Easy launch momentary button
Program navigation button
High-speed module digital interface
Installed with ACCESS protocol
Supports spectrum analyzer function
Supports SWR indicator warning
G9D potentiometer gimbal
Haptic vibration alerts and voice speech outputs
Supports wired training function
Dimension: 200*194*110mm (L*W*H)
Weight: 670g (without battery)
Operating system: OpenTX
Number of channels: 24 channels
Internal RF module: ISRM-S-X9
Operating voltage range: 6.5 – 8.4V (2S) LiPo or Li-ion Only
Operating current: 130mA@8.2V (Typ)
Operating Temperature: -10℃ ~ 60℃ (14℉ ~ 140℉ )
Backlit LCD resolution: 212*64
Smart Port, Micro SD card slot, and DSC Port
Mini USB interface: supports 2S Li-battery balancing charge
Model memories: 60 models (expandable by Micro SD card)
Compatibility: ACCST D16 and ACCESS receivers
|Taranis X9D Plus 2019||Taranis X9D Plus SE 2019|
|Communication Protocol||ACCST D16 /ACCESS||ACCST D16 /ACCESS|
|High-speed Module Digital Interface||√||√|
|SWR Indicator Warning||√||√|
|Spectrum Analyzer Function||√||√|
|Program Navigation Button||√||√|
|Easy Launch Momentary Button||√||√|
|Haptic Vibration Alerts||√||√|
|Voice Speech Outputs||√||√|
|2S Li-Battery Charging System||√||√|
|G9D Potentiometer Gimbal||√|
|M9 Hall Sensor Gimbal||√|
|Wired Training System||√||√|
PARA wireless training function
1 x FrSky Taranis X9D Plus ACCESS 2.4G 24CH Radio Transmitter (Silver Colour)
Battery NOT included.
