Feature

1.  The newly designed EF series has a strong and durable structure.
2.  High-strength 7mm drone arm and 3.5mm stiffener bar enhance endurance.
3. The wide X-shaped structure ensures stability and flexibility.
4. The new stationary-type power plug makes charging more convenient.

Specifications

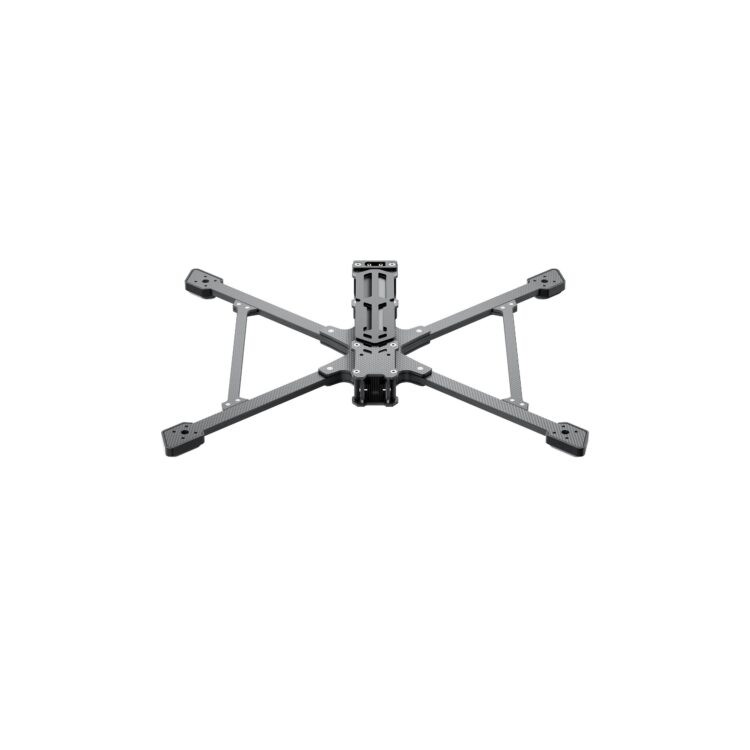

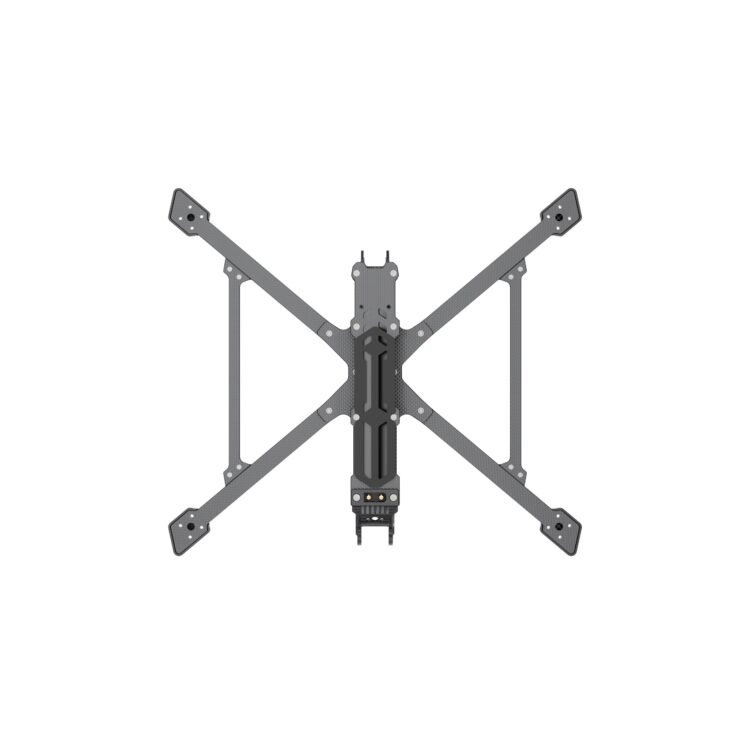

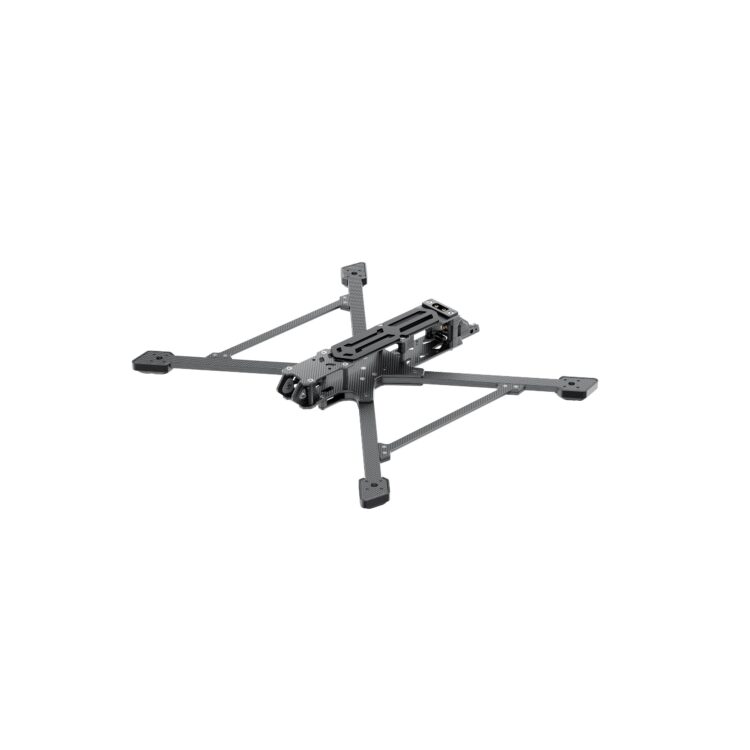

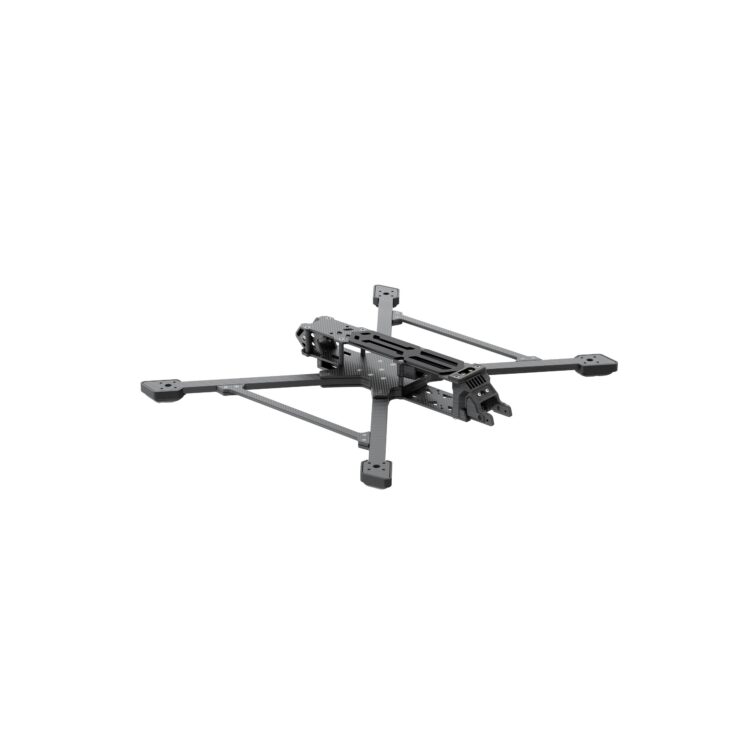

• Item: GEP EF10-inch frame
• Motor to motor：430mm
• Dimension：370*320mm
• Frame type: Wide X-shape
• Top plate thickness：2.5mm
• Mid plate thickness：3mm
• Bottom plate thickness：3mm
• Side plate thickness：2.5mm
• Arm thickness：7mm
• Front stiffener plate：7mm
• Arm stiffener bar：3.5mm
• Stack fixing hole size：30.5*30.5/M3
• VTX fixing hole sizes：30.5*30.5/M3，25.5*25.5/M2，20*20/M3
• Motor fixing hole size：19*19/M3
• Camera side plate space：19*19mm
• Stack mounting height：25mm
• Weight：366g（without pads ）

Recommended Kits

Motor： EM3115 KV900

ESC： TAKER BLS 80A 4IN1

FC： GEP-F405-BT

VTX：RAD VTX 5.8G 2.5W

Camera : Caddx Ratel2

Propeller: HQProp 1050-3
