Fixed

1. Add I2C function
2. When you connect the USB, the receiver and OSD settings can be saved
3. Increase the pad area
4. LED signal selection （when Mamba Led sys avaiable）
5. BEC short circuit protection
6. TVS instant high voltage protection 30V

Update

1. F405 models support F.prot（Most）
2. Upgrade the anti-interference cable
3. Use Typec（Most）
4. The pad area of Mini flight controller (20×20) increased by 140%

Added

1. Add self-recovery insurance to the receiver’s 5V power supply
2. Increase the camera VCC power supply pad
3. Standard flight controller (30.5×30.5) adds spare pad
4. Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference

FC Specifications

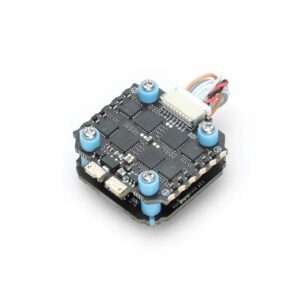

MAMBA Basic F722MINI MK3
MCU: 216MHz STM32F722RET6
GYRO: MPU6000
Barometer: Yes
OSD: Yes
Blackbox: 16M Flash Memory
Uarts: 6 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power Led: Yes
LED Controller: BF LED
S/F.Port: Yes
RSSI: Yes
Buzz: Yes
Input: 2~6S Lipo (8.4~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2.5A
MOUNTING: 20mm, M2

ESC Specifications
MAMBA F40 MINI PRO
INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
CONTINUE CURRENT: 40A×4
BURST CURRENT: 45A (10S)
BEC: No
Target：MAMBA F40MINIPRO
SOFT: Dshot300/600/1200
TVS Protection: Yes
MOUNTING: 20mm, M3/M2

Supply :
High-Frequency 470uF/35V ×1
8pin sh1.0 ×2
16AWG 60mm ×2
AMASS Original XT60
