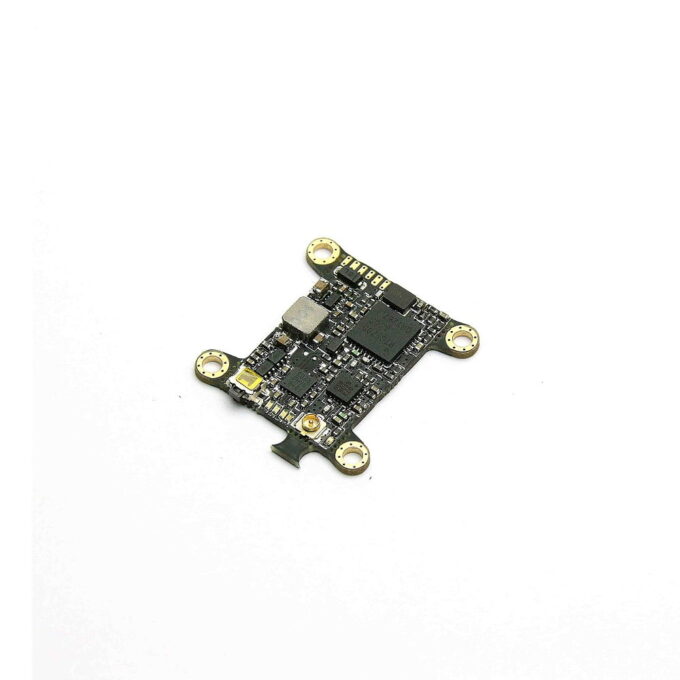

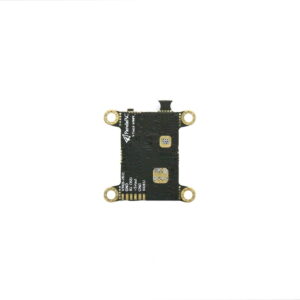

PANDARC VT5804 MINI X 20*20 5.8GHZ 25-400MW VTX U.FL

PandaRC has many options available for reliable and affordable 5.8GHz VTX, featuring different sizes, connectors, and output power levels. This lightweight version features a U.FL connector and 20×20 mounting holes.

Out of stock

₹1,599

Out of stock

Same Day Shipping

Mon-Sat til 2.00PM on Most orders

Provide Warranty

Seller & Manufacturer Warranty

Best Prices

Best Prices in India

Best Customer Support

Industry leading support

Features

The output power is stable and the transmission distance is long: > 0.5km@25mW, > 1km@200mW, > 1.5km@400mW (original antenna)
6-stop transmission power switching: 0 mW/25 mW/50 mW/100 mW/200 mW/400 mW
Support OSD interface to adjust transmission frequency and power
Output 16 frequency points, including group A and group R
Fast frequency locking and no disturbance to peers when switching on.
The self-checking function of output power
Full video format: NTSC/PAL
The input voltage range is wide and the power consumption is low: 6V-26V, 12V/240mA@400mW
Small size: 24mm * 24mm * 3mm, installation hole 20mm * 20MM (4-M2)
Light weight: <3g (without antenna)

Specification

1. The output power is stable and the transmission distance is long: > 0.5km@25mW, > 1km@200mW, > 1.5km@400mW (original antenna);

2. 6-stop transmission power switching: 0 mW/25 mW/50 mW/100 mW/200 mW/400 mW;

3. Support OSD interface to adjust transmission frequency and power;

4. Output 16 frequency points, including group A and group R;

5. Fast frequency locking and no disturbance to peers when switching on.

6. Self-checking function of output power;

7. Full video format: NTSC/PAL;

8. The input voltage range is wide and the power consumption is low: 6V-26V, 12V/240mA@400mW;

9. Small size: 24mm * 24mm * 3mm, installation hole 20mm * 20MM (4-M2);

10. Light weight: <3g (no antenna included);

Package included

1 x VT5804 MINIX

1 x Rattail antenna

1 x Frequency table

6 x Power cord

1 x heat shrinkable tube

Weight	30 g
