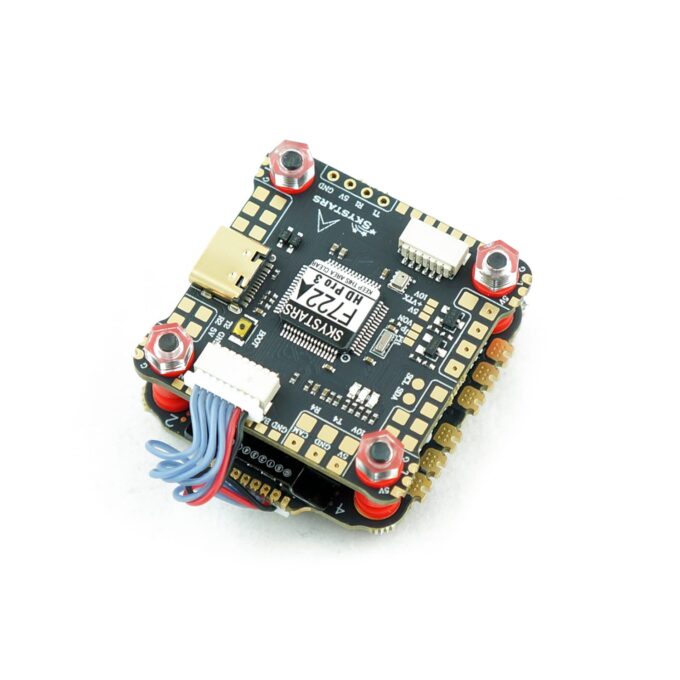

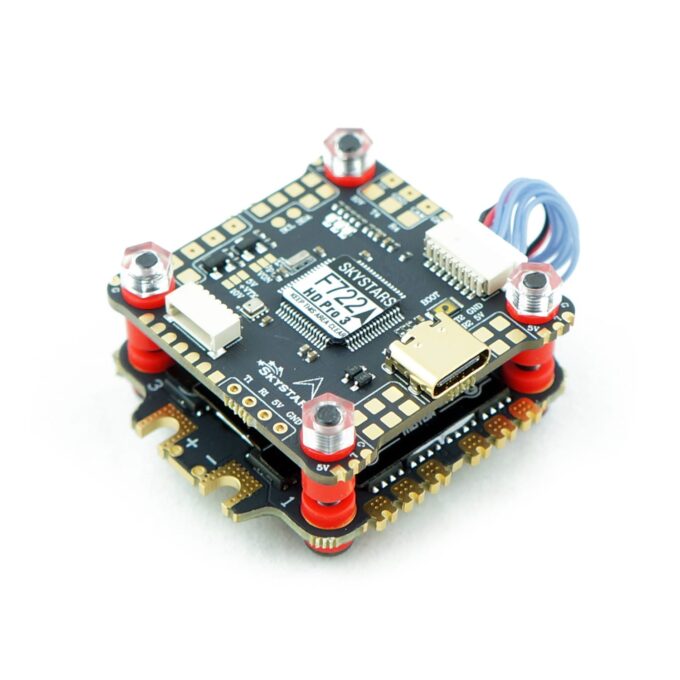

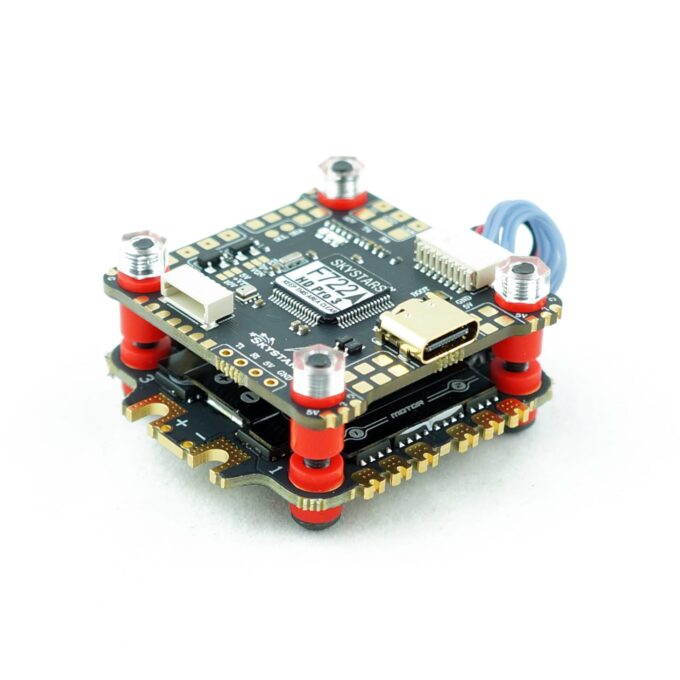

SkyStars F7 HD Pro 3 + KO45 45A 3-6S BLHeli_32 4-in-1 ESC 30×30 Fly Tower Stack

The SkyStars F7+ KO45 Blheli_32 Fly Tower Stack features the latest SkyStars F7 HD 3 Pro flight controller with large soldering pads which makes it beginner friendly, as well as the KO45 45A 4-in-1 ESC to give your multirotor full power!

Note: There is no difference in appearance between the 60A and 45A ESC, which can be distinguished from the Mosfets.

Specifications

F722 HD PRO3 FC

• Receiver: Support Sbus, crsf, ibus, Spektrum 1024/2048, SBUS, XBUS, SumD and SumH RX. Built-in inverter, support 3.3v spectrum satellite receiver, support PPM receiver. The default receiver input is UART 1, the F7 has a built in inverter that can be used in any free UART.
• LED: 4 independent LED pads, support WS2812 programming
• Mounting Holes: Standard 30.5mm square to center of holes
• Item name: F722HD Pro 3 Betaflight Flight Controller
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• Input Voltage: 3-6S LiPo(11.1V~22.2V)
• 6 Hardware UARTS (UART123456)
• MCU: STM32F722RGT6 216MHz
• Firmware: SKYSTARS F7HD
• Dimensions: 38.5x40x6.2mm
• USB connection: USB-C
• IMU: BMI270
• BEC 5V 3A & 10V 3A
• Buzzer Pad: YES
• Black box: 16MB
• CURR pad: YES
• RSSI Pad: YES
• Weight: 6.8g

KO45 – 45A

• Drive signal: Dshot300-1200 / Proshot1000 / Oneshot / Multishot / PWM
• MCU: STM32F051 Operation frequency: 48MHz
• Peak current [5 seconds]: 55A
• Mount: 30.5mm x 30.5mm
• Continuous current: 45A
• Firmware: BLHeli_32
• ESC weight: 12g
• Supports 3-6S
• BEC: No

Includes

• 1 x SkyStars F7 F722 HD 3 Pro Flight Controller
• 1 x SkyStars RC KO45 45A BLHELI_32 4-in-1 30X30 ESC
• 1x Connecting Cable
• 1x XT60 Connector
• 1x Capacitor
