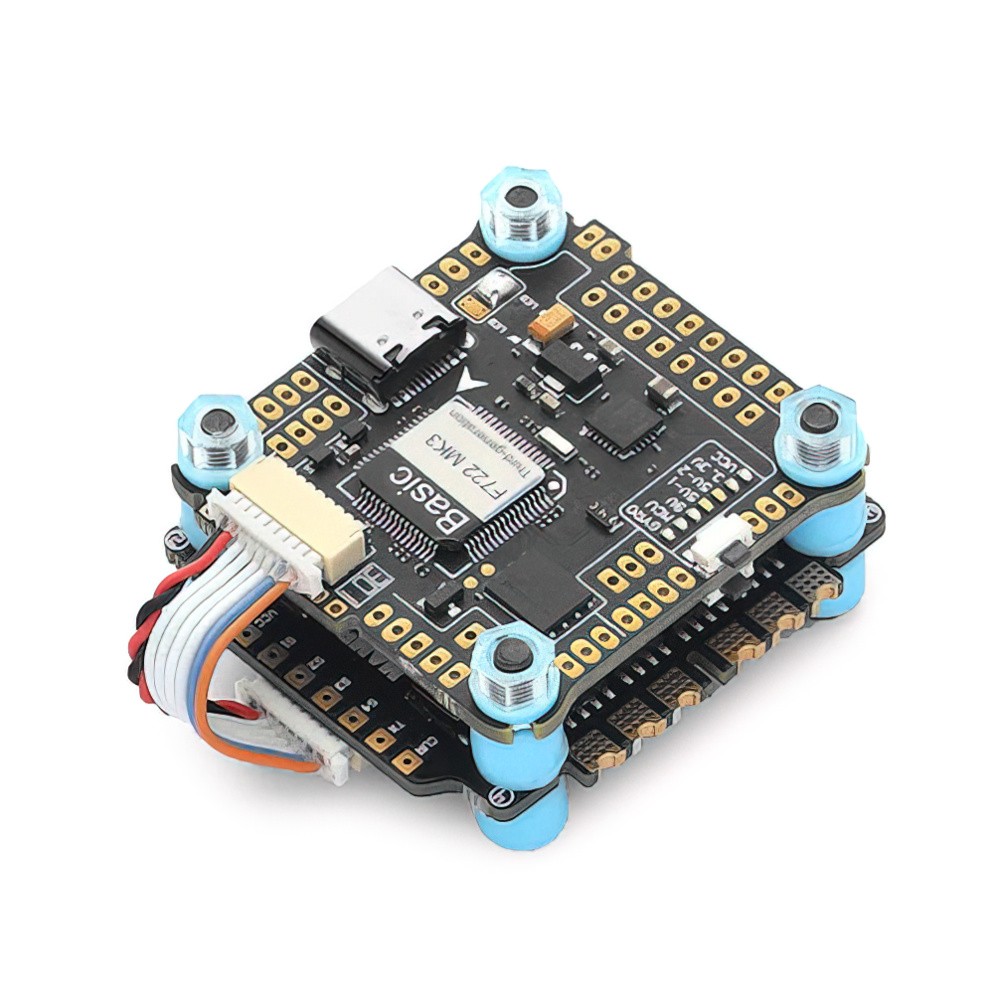

The Diatone Mamba F722 MK3 Basic Stack brings BIG power all in a 30.5 x 30.5 mounting size! This stack can push 45A all while bringing you the latest features!

Note: This is the No WiFi version.

Features

• Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference
• The standard flight controller (30.5×30.5) adds a spare pad
• Self-recovery insurance to the receiver’s 5V power supply
• LED signal selection (when Mamba Led sys avaiable)
• Increased camera VCC power supply pad
• TVS instant high voltage protection 30V
• BEC short circuit protection
• Super Big Soldering Pad
• Increased pad area

Updates

• When you connect the USB, the receiver and OSD settings can be saved
• Upgraded anti-interference cable
• Added I2C function
• USB Type-C

Specifications

MAMBA Basic F722 MK3 FC

• BEC: 3.3V 0.5A& 5V 3A (System Power)& 5V 3A(LED)& 9V 3A
• LED Controller: BF LED/MB LE（4 Set 2812 LED）
• MCU: 216MHz STM32F722RET6
• Input: 3~6S Lipo (12.6~25.2V)
• Blackbox: 16M Flash Memory
• MOUNTING: 30.5mm, M3
• ESC Soft: Dshot300/600
• ESC Telemetry: Yes
• TVS Protection: Yes
• GYRO: MPU6000
• Power Led: Yes
• Barometer: Yes
• S/F.Port: Yes
• Uarts: 6Set
• OSD: Yes
• RSSI: Yes
• Buzz: Yes

MAMBA F45 128K ESC

• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• Target：BLHeli_32 MAMBA F45_128K
• MOUNTING: 30.5×30.5mm ,M3/M2
• CONTINUE CURRENT: 45A×4
• BURST CURRENT: 55A (10S)
• SOFT: Dshot300/600/1200
• TVS Protection: Yes
• BEC: No

Includes

• 1x Diatone Mamba Basic Stack – F722 MK3 FC + F55 55A 128K ESC
• 1x AMASS Original XT60
• 2x 12AWG 100mm Cable
• 1x 470uF/35V Capacitor
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
